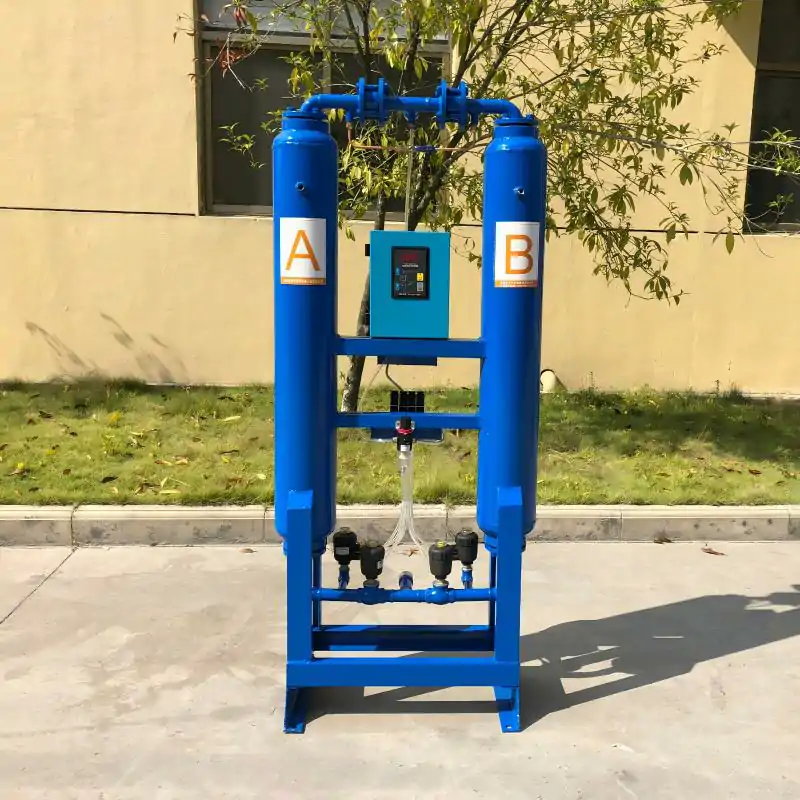

This dryer adopts pressure swing adsorption technology. It uses two molecular sieve towers to alternately adsorb and regenerate compressed air without external heating. It efficiently removes moisture from compressed air, delivers stable low dew point air, features simple structure, easy maintenance and reliable continuous operation, widely applied in pneumatic equipment, precision instruments and general industrial gas drying.
Product Specifications
| Model | BRWD003 | Weight (kg) | 210 | |
|---|---|---|---|---|
| Capacity (Nm3/min) | 3.8 | Dimensions (mm) | 1050*450*1700 | |
| Desiccant weight (kg) | 75 | Work Pressure (bar) | 6-10 | |
| Inlet/Outlet Connection | RC-1.5 | Power (KW) | 0.2 |
Advantage
All necessary pre-treatment components must be fully installed
The air intake system must be configured with an air compressor followed by a three-stage precision filter assembly (for dust, water, and oil removal); the direct entry of oil-laden compressed air into the adsorption tower is strictly prohibited. If lubricating oil infiltrates the molecular sieve, it will cause permanent deactivation and caking, rendering the equipment a total loss.
Intake operating conditions meet standards
The inlet temperature should be controlled at ≤40°C; excessive temperatures significantly reduce adsorption capacity and raise the dew point of the product gas. The inlet pressure should be stabilized between 0.6 and 0.8 MPa, with fluctuations not exceeding ±0.05 MPa.
Blow out the piping until clean
Before starting up a new unit or restarting after maintenance, vent and purge the piping to remove rust, welding slag, and other debris; this prevents solid particles from eroding or abrading the molecular sieve and scratching the seals of pneumatic valves.
Contact Us
Used Air Dryer For Compressor is the most cost-effective choice for the vast majority of conventional industrial applications.If you need this product or any similar ones, please contact us for the best quote. We also provide one-stop services for air energy, solutions, and accessories. Please feel free to contact us for any cooperation inquiries or further assistance.
