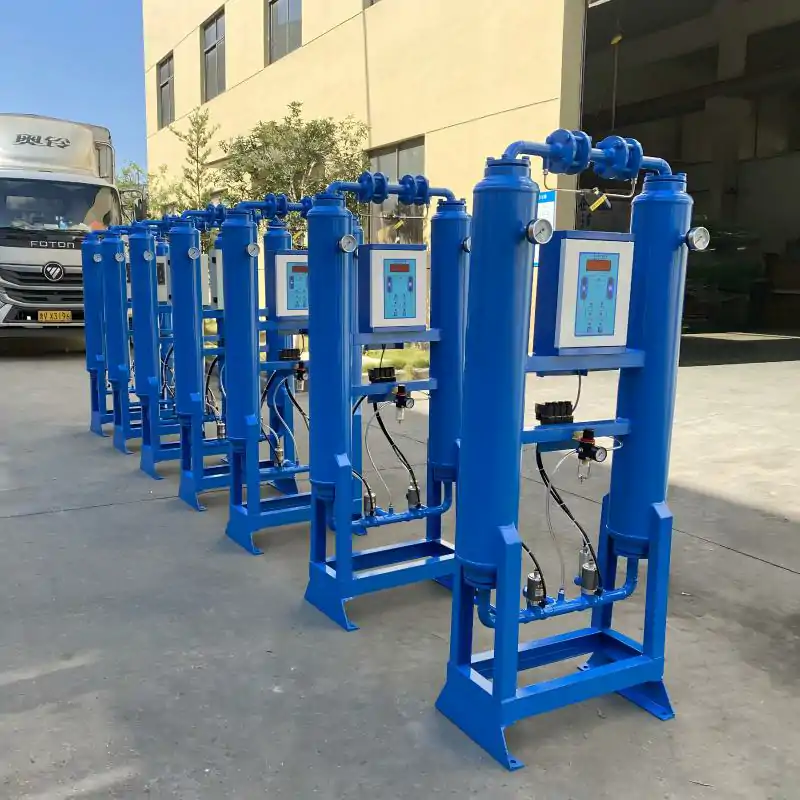

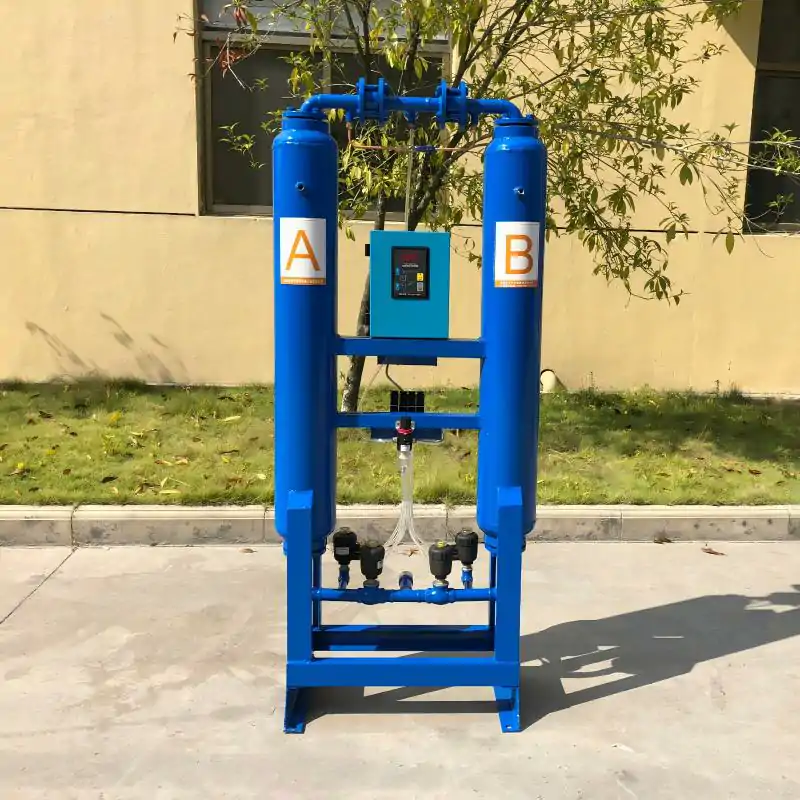

This dryer adopts pressure swing adsorption technology. It uses two molecular sieve towers to alternately adsorb and regenerate compressed air without external heating. It efficiently removes moisture from compressed air, delivers stable low dew point air, features simple structure, easy maintenance and reliable continuous operation, widely applied in pneumatic equipment, precision instruments and general industrial gas drying.
Product Specifications
| Model | BRWD050 | Weight (kg) | 2300 | |
|---|---|---|---|---|
| Capacity (Nm3/min) | 52 | Dimensions (mm) | 2100*1000*2750 | |
| Desiccant weight (kg) | 850 | Work Pressure (bar) | 6-10 | |
| Inlet/Outlet Connection | DN100 | Power (KW) | 0.2 |
Caution
Ready to use
Suitable for intermittent use and frequent start-stop conditions, unlike micro-heat desiccant dryers that need a long time to preheat.
Simple structure
No heating tubes, no thermostats, no high-temperature parts—risks of burning out or overheating are completely eliminated.
Low failure rate

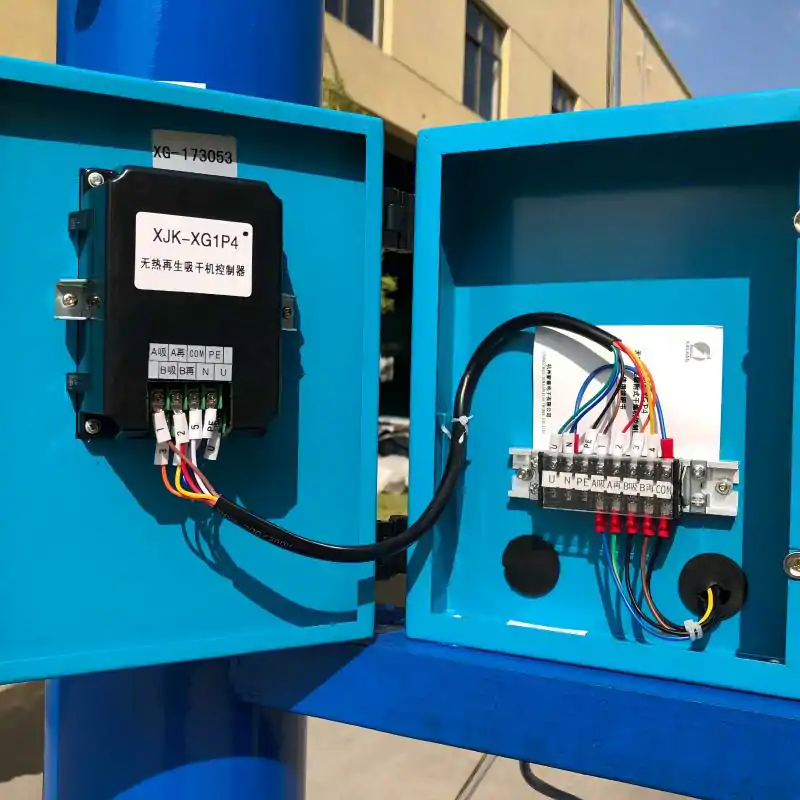

The control logic is simple: the two towers switch on a timer. Fewer parts, fewer points of failure.
Contact Us
Shop Air Compressor Dryer is the most cost-effective choice for the vast majority of conventional industrial applications.If you need this product or any similar ones, please contact us for the best quote. We also provide one-stop services for air energy, solutions, and accessories. Please feel free to contact us for any cooperation inquiries or further assistance.
