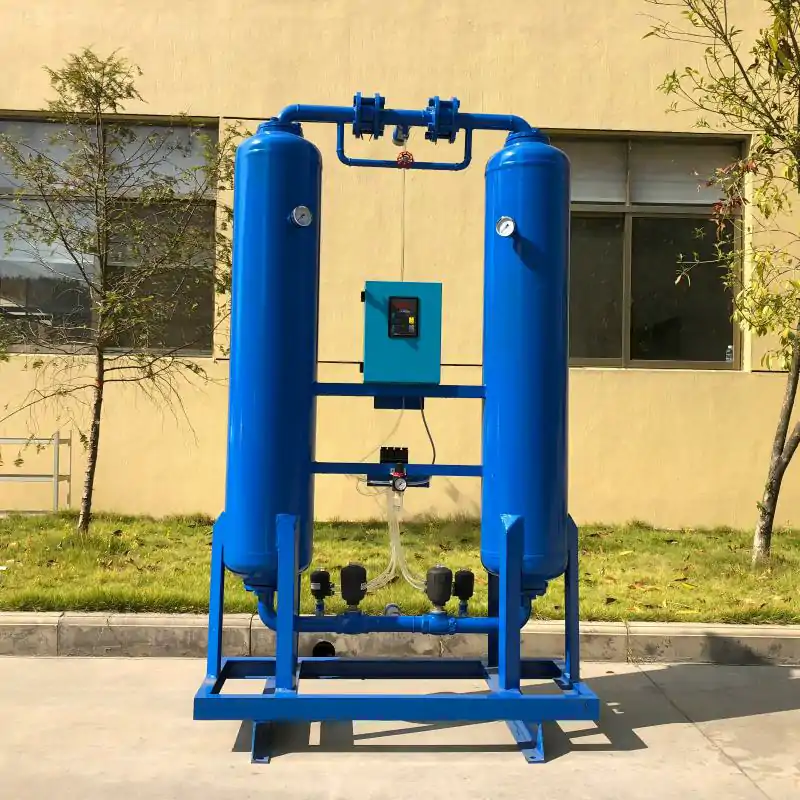

This dryer adopts pressure swing adsorption technology. It uses two molecular sieve towers to alternately adsorb and regenerate compressed air without external heating. It efficiently removes moisture from compressed air, delivers stable low dew point air, features simple structure, easy maintenance and reliable continuous operation, widely applied in pneumatic equipment, precision instruments and general industrial gas drying.
Product Specifications
| Model | BRWD080 | Weight (kg) | 4050 | |
|---|---|---|---|---|
| Capacity (Nm3/min) | 90 | Dimensions (mm) | 2400*1150*2920 | |
| Desiccant weight (kg) | 1360 | Work Pressure (bar) | 6-10 | |
| Inlet/Outlet Connection | DN125 | Power (KW) | 0.2 |
taboo
High intake air temperature is strictly prohibited
It’s recommended that the intake air temperature be ≤45°C. The higher the intake temperature, the more the adsorption capacity drops; high temperatures also speed up the aging of the adsorbent. When the upstream air compressor has a high-temperature issue, don’t send the hot air into the dryer.
Do not turn off or lower the purge gas valve
In non-heated models, regeneration relies on part of the dried compressed air for back-blowing desorption. If the purge valve is manually closed too much, regeneration is incomplete and the dew point spikes; the purge air volume is factory-calibrated, so don’t change it arbitrarily.
Don't start and stop the equipment frequently in a short period.
Frequent start-stop can cause repeated pressure shocks inside the tower, making the adsorbent particles collide and crumble. It’s recommended to keep at least a few dozen minutes between shutdowns; it’s not suitable for intermittent on-off operation.
