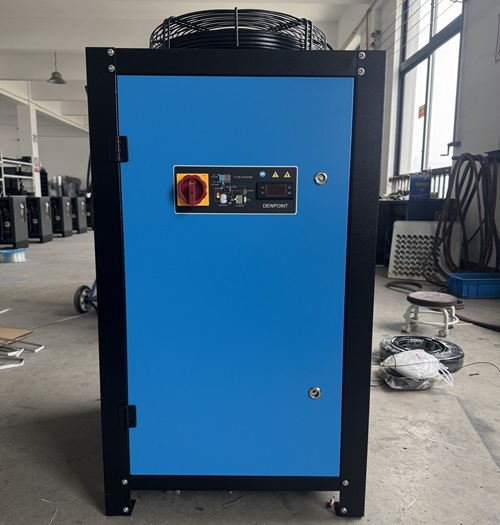

Compressor air dryer working principle is based on cooling compressed air and removing moisture through heat exchange. Our 8.5 m³/min plate heat exchanger refrigerated air dryer cools hot and wet compressed air, then separates the condensed water through the drainage system. As a result, the system supplies cleaner and drier air for daily production. With its medium flow capacity, the dryer also fits many factory air compressor systems.
Air Dryer Specifications
| Model | BL-60PHE | Intake temperatures | ＜50℃ |
| Capacity | 8.5 Nm3/min | Inlet pressure | 6-16bar |
| Voltage | 220V/50Hz | Pressure dew point | 2-8℃ |
| Power | 1.82KW | Weight | 88kg |
| Inlet/Outlet Connection | G1-1/2" | Dimensions | 650*620*910mm |
Product Features
Medium Flow Capacity
An 8.5 m³/min capacity works well for medium-size compressed air systems. It can support multiple air tools and production machines at the same time. Moreover, it gives factories enough air treatment capacity without using an oversized dryer. Therefore, it is a practical choice for growing production lines.
Efficient Plate Exchange
Wide Business Use
Many industries can use this model for daily compressed air treatment. For example, it suits machinery manufacturing, metal processing, automotive parts, plastic production, packaging, electronics, and general workshops. In addition, it works well with screw compressors and centralized air systems.
Contact Us
Compressor air dryer working principle helps users understand how refrigeration technology removes moisture from compressed air. With medium flow capacity, efficient heat exchange, and wide industrial use, this 8.5 m³/min plate heat exchanger refrigerated air dryer offers a reliable solution for factories that need stable compressed air quality.
