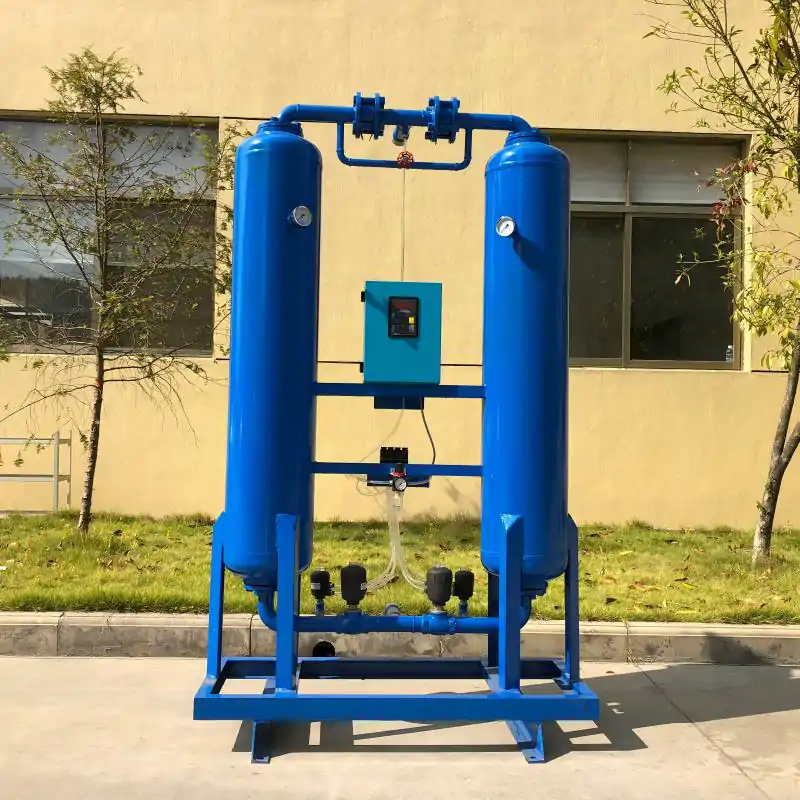

This dryer adopts pressure swing adsorption technology. It uses two molecular sieve towers to alternately adsorb and regenerate compressed air without external heating. It efficiently removes moisture from compressed air, delivers stable low dew point air, features simple structure, easy maintenance and reliable continuous operation, widely applied in pneumatic equipment, precision instruments and general industrial gas drying.
Product Specifications
| Model | BRWD130 | Weight (kg) | 4900 | |
|---|---|---|---|---|
| Capacity (Nm3/min) | 135 | Dimensions (mm) | 2700*1500*2920 | |
| Desiccant weight (kg) | 2275 | Work Pressure (bar) | 6-10 | |
| Inlet/Outlet Connection | DN150 | Power (KW) | 0.2 |
taboo
Absolutely no disassembling tanks, valves, or filters under pressure
Before disassembling for maintenance, you must fully release the pressure to 0, otherwise any leftover pressure could make parts pop out and hurt someone.
Do not operate the device without protection in environments below 0°C
The dew point of the outlet air is very low. If the ambient temperature drops below freezing, moisture inside the pipes and valves can freeze, causing the valves to stick or get damaged.
Don't run it on low flow for a long time without load.
Uses very little air and almost no flow, but regeneration purging still consumes air; at the same time, the water vapor inside the tower can’t be carried away, the adsorbent gradually becomes saturated, and the outlet dew point gets worse.
Contact Us
Compressed Air Dryer Rental is the most cost-effective choice for the vast majority of conventional industrial applications.If you need this product or any similar ones, please contact us for the best quote. We also provide one-stop services for air energy, solutions, and accessories. Please feel free to contact us for any cooperation inquiries or further assistance.
