Compressed air dryer freezing up can cause unstable drying, blocked pipes, and poor air quality. Our 8.5 m³/min high-temperature refrigerated air dryer helps avoid these problems with a stable refrigeration system and a design made for demanding factory conditions. It can handle inlet air temperatures up to 80°C, making it suitable for medium-flow compressed air systems.
Air Dryer Specifications
| Model | BRC085F | Capacity | 8.5 Nm3/min |
| Voltage | 220V/50Hz | Power | 1.8kw |

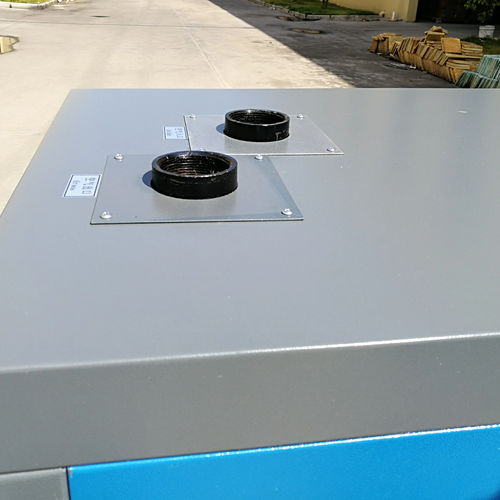

| Inlet/Outlet Connection | G2 | Weight | 220kg |
| Dimensions | 1250*700*1150 mm | Intake temperatures | <80℃ |
| Working pressure | 0.6-1.0Mpa | Pressure dew point | 2-10℃ |
Product Features
Stable Operation
First, this dryer keeps the cooling process stable even when the air load changes. It helps control the evaporator temperature and reduces the risk of freezing during low-load operation. As a result, the dryer can keep working smoothly and provide more stable dry air.
Industrial Use
Easy Maintenance

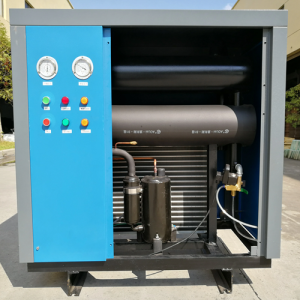

In addition, we use practical components and a clear internal layout to make daily maintenance easier. The electronic automatic drain valve removes condensate at set intervals, while the main refrigeration and electrical components remain easy to check and service.
Contact Us
Compressed air dryer freezing up is often related to unstable cooling conditions or an unsuitable dryer for the working environment. By choosing a high-temperature model with the right capacity, you can reduce these risks and keep your compressed air system running reliably. Our 8.5 m³/min model offers a practical solution for medium-sized factories and high-temperature applications.
If you are interested in our products, please contact us for a quotation. We will offer you the most competitive prices and the most attentive service.
