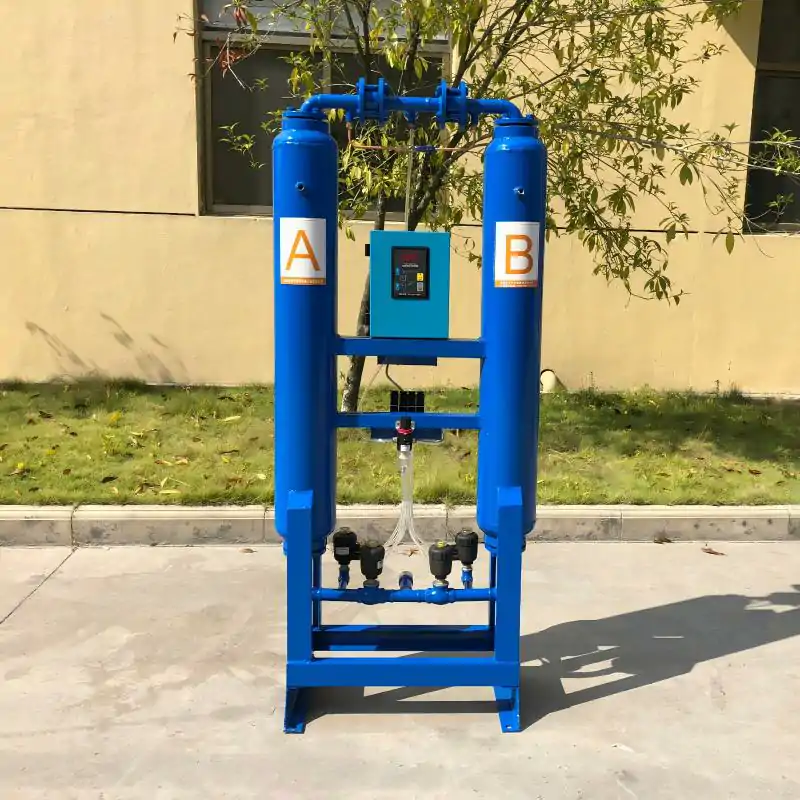

This dryer adopts pressure swing adsorption technology. It uses two molecular sieve towers to alternately adsorb and regenerate compressed air without external heating. It efficiently removes moisture from compressed air, delivers stable low dew point air, features simple structure, easy maintenance and reliable continuous operation, widely applied in pneumatic equipment, precision instruments and general industrial gas drying.
Product Specifications
| Model | BRWD030 | Weight (kg) | 1480 | |
|---|---|---|---|---|
| Capacity (Nm3/min) | 32 | Dimensions (mm) | 1700*850*2630 | |
| Desiccant weight (kg) | 550 | Work Pressure (bar) | 6-10 | |
| Inlet/Outlet Connection | DN80 | Power (KW) | 0.2 |
Caution
High drying depth
Standard atmospheric dew point is -40℃; an optional ultra-low dew point of -70℃ is available, with a drying effect far better than that of a refrigerated dryer (refrigerated dryer pressure dew point 2‑10℃).
Dry dew point stable
It’s hardly affected by intake air temperature fluctuations, so even in hot summers or when the compressor exhaust temperature is higher than usual, the dew point doesn’t really spike back up.
Low moisture content
The output compressed air has an extremely low water content, which can prevent rust in pipelines and pneumatic components, and avoid water-related failures in painting, powder coating, instruments, and precision equipment.
