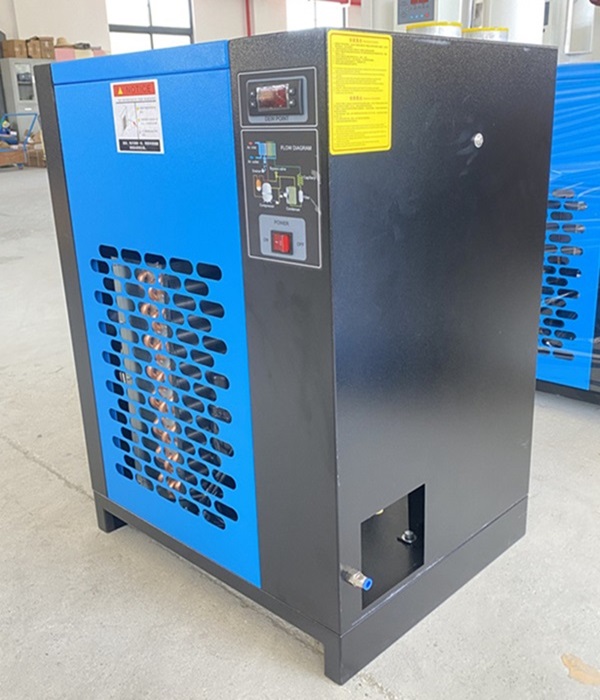

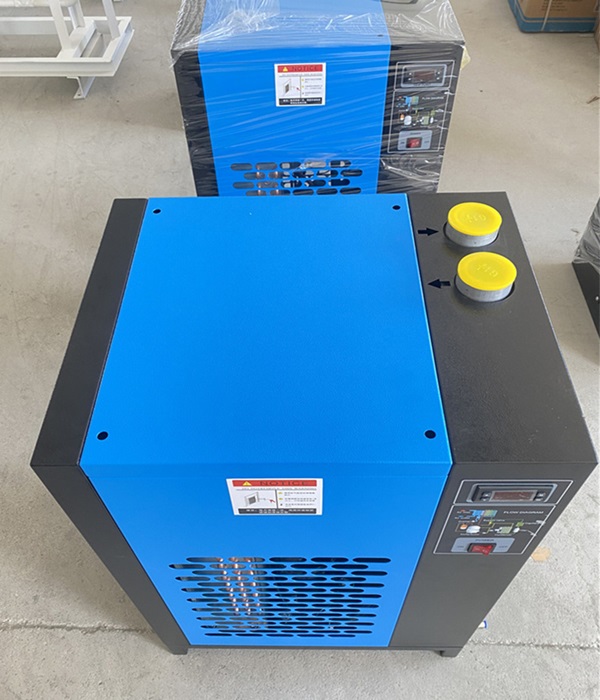

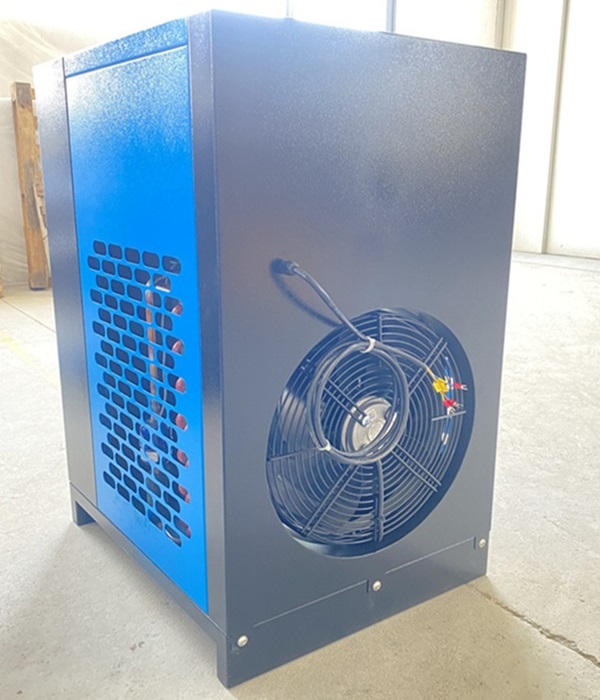

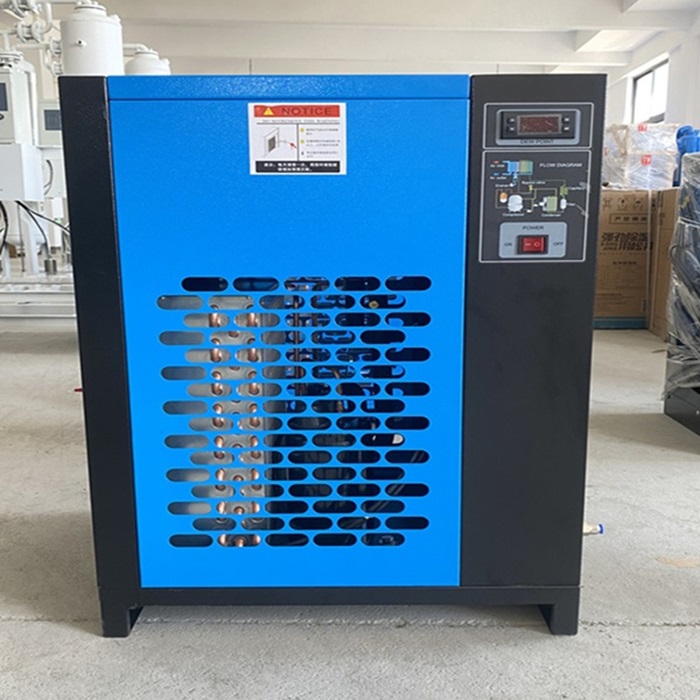

25 cfm air dryer is a compact plate heat exchanger refrigerated air dryer designed for small flow compressed air systems. It removes moisture efficiently while keeping energy consumption low, and it delivers stable performance in continuous operation. Because of its simplified structure and compact size, it is especially suitable for factories where space is limited and installation flexibility is important.
Air Dryer Specifications
| Model | BRBH-06 | Intake temperatures | ＜50℃ |
| Capacity | 0.6 Nm3/min | Inlet pressure | 6-16bar |
| Voltage | 220V/50Hz | Pressure dew point | 2-8℃ |
| Power | 0.28KW | Weight | 24kg |
| Inlet/Outlet Connection | G3/4“ | Dimensions | 380*330*550mm |
Product Features
Compact & Efficient Structure
This 25 cfm air dryer adopts a plate heat exchanger design, which improves heat transfer efficiency and reduces overall energy loss. As a result, it achieves faster cooling and more stable dew point performance. In addition, its small footprint and lightweight body make it easy to install even in narrow or crowded compressor rooms. The simple and modern appearance also fits well with standard industrial equipment layouts.
Small Flow Industrial Use
Main Product & Market Performance
As one of our factory’s main product lines, the plate heat exchanger air dryer has achieved strong sales performance in both domestic and international markets. It has been widely exported to Southeast Asia, Europe, and other regions, where customers value its efficiency and compact design. Moreover, we continuously optimize production to ensure stable quality and fast delivery, which helps strengthen long-term cooperation with distributors and end users.
Contact Us
25 cfm air dryer combines energy efficiency, compact structure, and reliable moisture removal, making it an ideal solution for small-scale compressed air systems. Its strong market acceptance and stable export performance further prove its practicality and competitiveness in real industrial applications.
If you are interested in our products, please contact us for a quotation. We will provide the most competitive price and the most attentive service.
