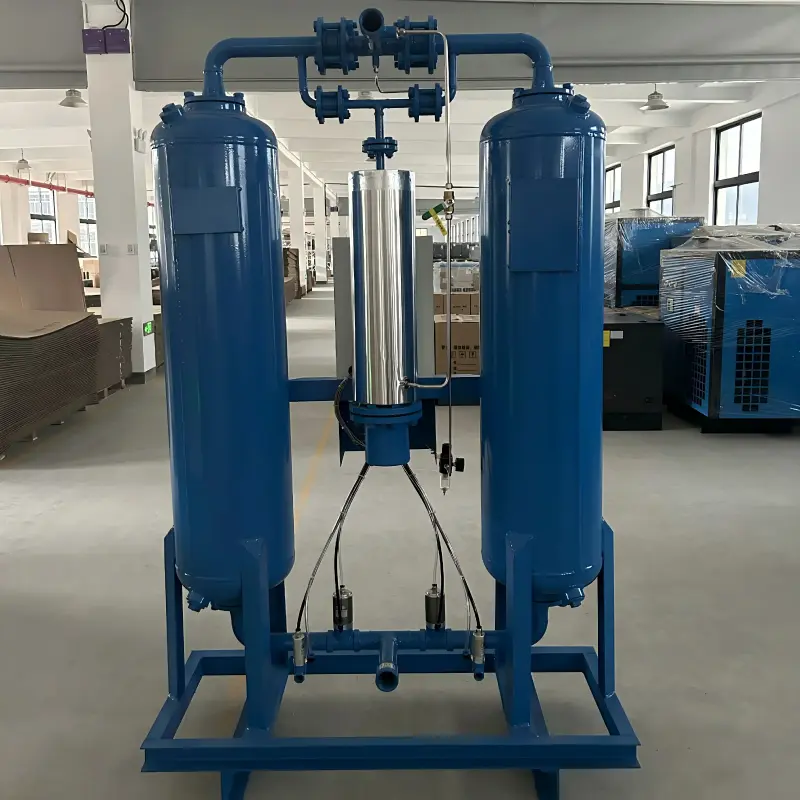

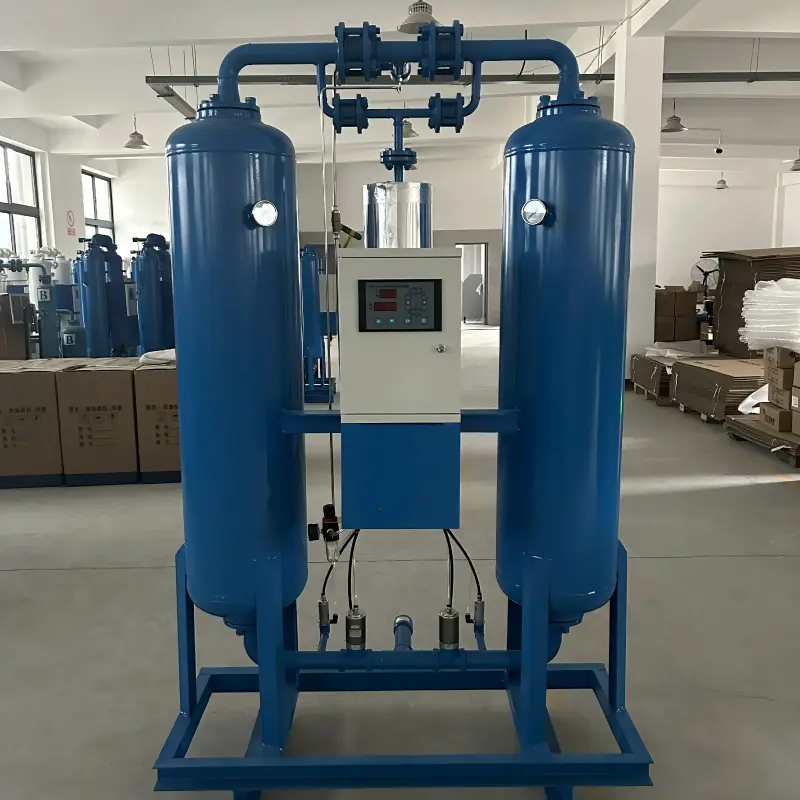

This twin-tower desiccant dryer adopts pressure swing adsorption with micro-heated regeneration. It removes water vapor from compressed air to achieve stable low pressure dew point (-40℃). Compared with heatless type, it features lower purge air consumption and better energy efficiency. Two adsorption towers work alternately to ensure continuous supply of dry compressed air, widely applied in machinery, electronics, chemical and food industries.
Product Specifications
| Model | BRVD080 | Weight (kg) | 3450 | |
|---|---|---|---|---|
| Capacity (Nm3/min) | 90 | Dimensions (mm) | 2650*1350*2900 | |
| Desiccant weight (kg) | 1360 | Work Pressure (bar) | 6-10 | |
| Inlet/Outlet Connection | DN125 | Power (KW) | 30 |
Product Features
Highly automated

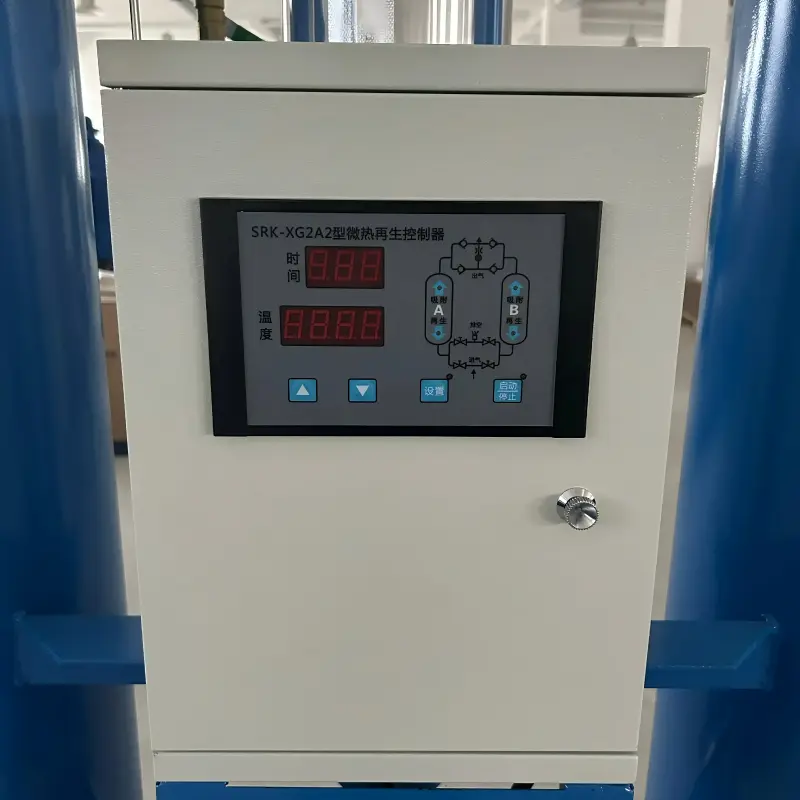

Standard PLC timing control, can be paired with dew point linked control; supports remote signal connection, making it easy to integrate with factory DCS and biogas power generation air compression systems.
Easy to maintain
Modular structure makes it easy to load adsorbents and service valves; with few trouble spots, a regular electrician can handle daily maintenance.
Operating condition adaptation advantages
It can be paired with a biogas generator set with an air compressor system to handle gas pre-treatment and instrument air drying. The independent heat source design ensures that the instrument air stays stable and dry, unaffected by fluctuations in the generator load.
