3.8 m³ Refrigerated Compressed Air Dryer
In industrial production, the quality of compressed air plays a crucial role in the smooth operation of production processes and the guarantee of product quality. As a professional manufacturer of compressed air dryers and provider of air post-treatment solutions, we understand the urgent needs of our customers for efficient and reliable drying equipment. Borin’s 3.8 m³ refrigerated compressed air dryer can safeguard your industrial production with its outstanding performance and excellent features.
Principle Of Operation
The amount of water vapor in compressed air is determined by the temperature of compressed air. Under the condition of keeping the pressure of compressed air basically unchanged, lowering the temperature of compressed air can reduce the content of water vapor in compressed air, and the excess water vapor will condense into liquid.
According to the correspondence between saturation vapor pressure and temperature of water, the refrigerating device is used to cool the compressed air to a certain dew point temperature, precipitate the water contained, and discharge the water through the vapor-water separator and automatic drain, so that the compressed air can be dried.
Product Specifications
| Model | BRA038F | Intake temperatures | <45℃ |
| Capacity | 3.8 Nm3/min | Working pressure | 0.6-1.0Mpa |
| Voltage | 220V/50Hz | Pressure dew point | 2-10℃ |
| Power | 910 w | Weight | 50.5 kg |
| Inlet/Outlet Connection | G1(1/2) | Dimensions | 800*450*740 mm |
Product Feature
•Ensure the normal operation of the equipment under the ambient temperature of 40℃;
•Using natural air as the cooling medium of the refrigeration system, without the need for a set of overall water supply and water recovery, cooling and other facilities,convenient and economical.
•The heat exchanger adopts counter-current design, high heat exchange efficiency and small volume;
•The vapor-water separator adopts three-stage separation method: direct collision separation + low-speed centrifugal separation + stainless steel wire mesh mist elimination separator, which separates 99.9% of liquid moisture from the cooled compressed air, prevents the secondary evaporation of water, and ensures the low dew point quality of the finished product. The low dew point quality of the finished product is guaranteed.
Product Recommendation
Our Advantages

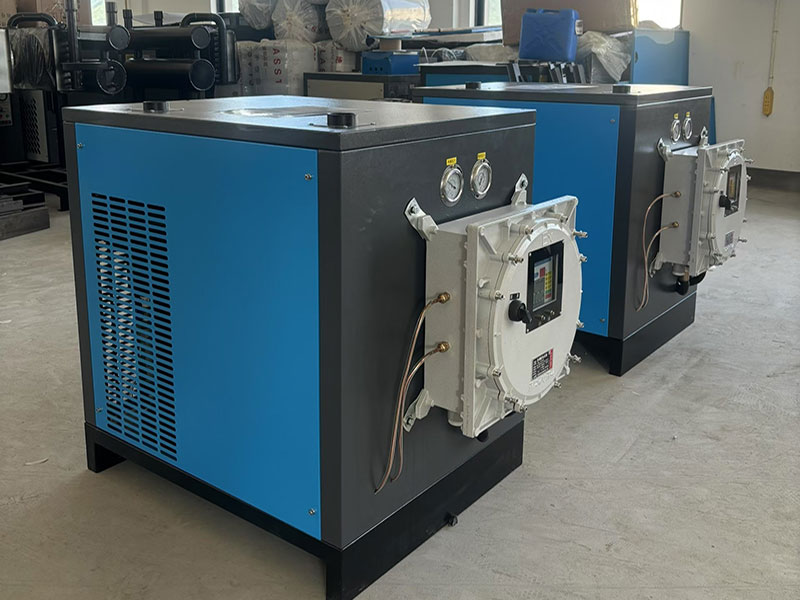

Product customization
We are well aware that each customer’s production scenario and process requirements are unique. Whether it’s the differences in parameters such as oil content and dust concentration in the customer’s air source, or the special performance requirements for equipment like explosion-proof, anti-corrosion, and aseptic, we can respond quickly and provide customized solutions.
According to the user’s needs, we can provide air purification equipment with various forms and characteristics such as air-cooled, water-cooled, standard, non-chlorofluorocarbon, high-temperature, instrument, single-chip microcomputer, programmable, industrial control computer, variable frequency, high pressure, explosion-proof, and corrosion-resistant.
During the customization process, our professional technical team will have in-depth communication with the customers. From the initial requirement analysis and scheme design, to the later prototype testing and optimization adjustments, we will be involved throughout the process. We ensure that each customized equipment can precisely meet the actual needs of the customers, making your production process more smooth and efficient.
Batch production
We have a strong mass production capacity, with an annual production capacity of up to 5,000 sets. The standardized production process, advanced production equipment, and professional production team ensure the stability and consistency of product quality during mass production.
For the standard 3.8 m³ refrigerated compressed air dryer, we can achieve rapid delivery, significantly shortening the waiting period for customers. This is undoubtedly a major advantage for customers with urgent production needs, as it helps them accelerate project progress and seize market opportunities.
Meanwhile, we have established a scientific production planning and scheduling system. We can reasonably arrange production tasks based on the order quantity and delivery deadlines of customers, ensuring that the delivery can be completed on time, with quality and quantity maintained. Even in the face of large-scale order demands, we can handle them calmly and provide stable and reliable product supply to customers.

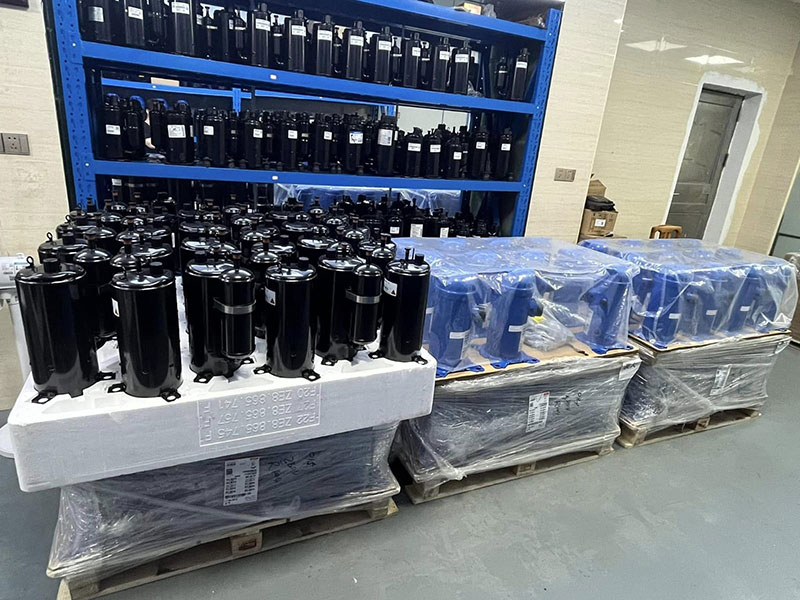

One-stop procurement of accessories
As a professional manufacturer of compressed air dryers, we not only offer complete machine products, but also provide one-stop purchasing services for customers including condensers and expansion valves, etc. This advantage can bring many conveniences and benefits to our customers.
With 22 years of manufacturing experience in air post-treatment equipment, we have a deep understanding of the structure and performance of such equipment. The accessories provided have a higher compatibility with equipment such as compressed air dryers, which can better ensure the operating efficiency and stability of the equipment, and reduce the occurrence of faults and maintenance issues caused by incompatible accessories.
Available component procurement: •condenser •drain valve •fan •refrigeration compressor •pressure switch •drying filter •evaporator •condenser •expansion valve.etc
Our 3.8 m³ refrigerated compressed air dryer, with its outstanding product features, combined with our company’s strong R&D capabilities, strict quality control system and comprehensive service capabilities, provides you with a one-stop compressed air drying solution. Choosing us means choosing efficient, reliable and energy-saving drying equipment, as well as professional, considerate and thoughtful services.
If you have any questions, please feel free to contact us at any time. Looking forward to becoming a loyal partner with you(CONTACT US NOW)
