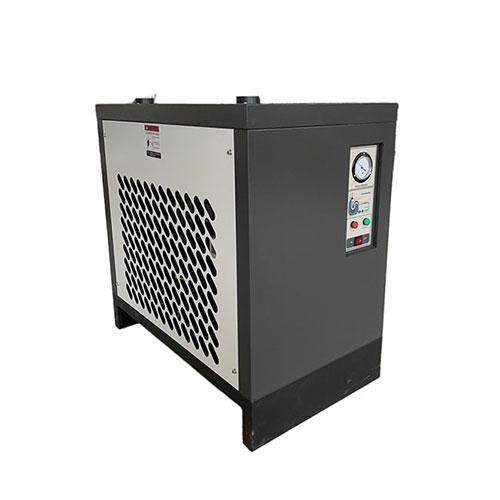

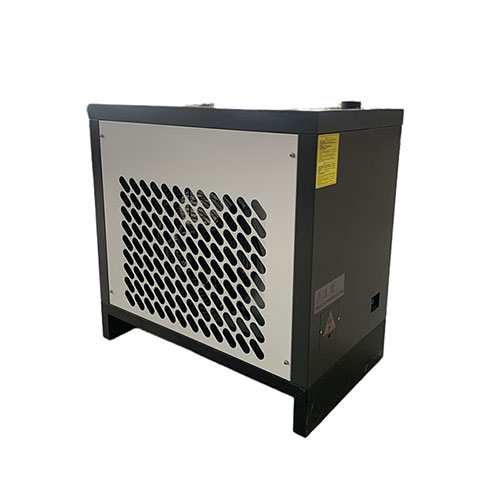

6.5 Nm3/min Refrigerated Compressed Air Dryer
We all know that moisture in compressed air can lead to corrosion of pipelines, malfunction of pneumatic tools, and even contamination of end products, resulting in costly downtime and repairs. If your business requires a steady supply of dry compressed air with a flow rate of 6.5 Nm³/min, our 6.5 Nm³/min Refrigerated Compressed Air Dryer is engineered to deliver exceptional performance, reliability, and cost-effectiveness.
As a leading manufacturer of compressed air dryers and a full-service provider of air post-treatment solutions, we don’t just sell products—we partner with you to optimize your compressed air system for long-term success.
Principle of operation
The amount of water vapor in compressed air is determined by the temperature of compressed air. Under the condition of keeping the pressure of compressed air basically unchanged, lowering the temperature of compressed air can reduce the content of water vapor in compressed air, and the excess water vapor will condense into liquid.

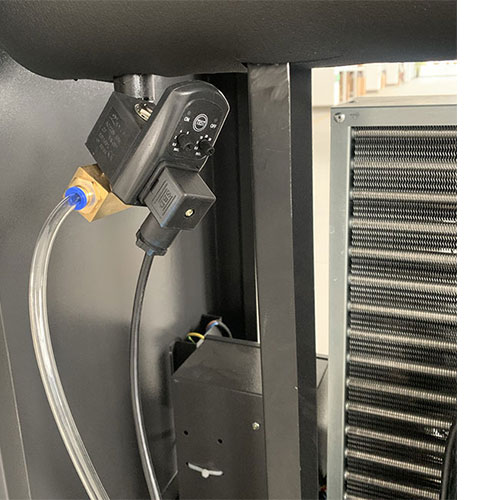

According to the correspondence between saturation vapor pressure and temperature of water, the refrigerating device is used to cool the compressed air to a certain dew point temperature, precipitate the water contained, and discharge the water through the vapor-water separator and automatic drain, so that the compressed air can be dried.
Product Feature
Ensure the normal operation of the equipment under the ambient temperature of 40℃

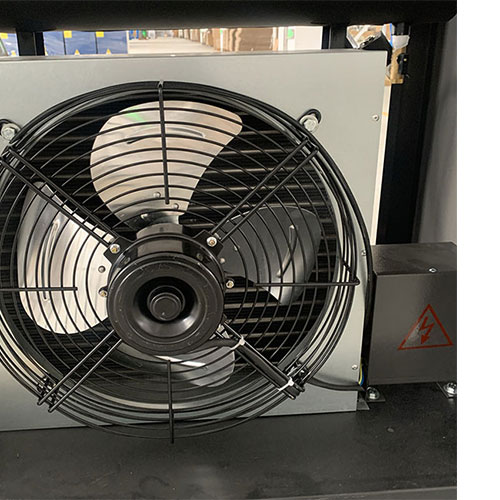

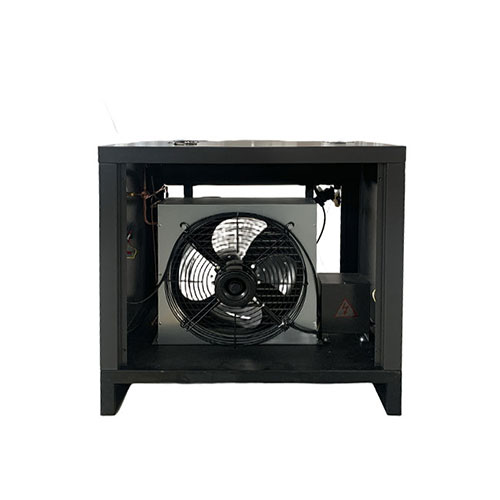

Uing natural air as the cooling medium of the refrigeration system, without the need for a set of overall water supply and water recovery, cooling and other facilities,convenient and economical

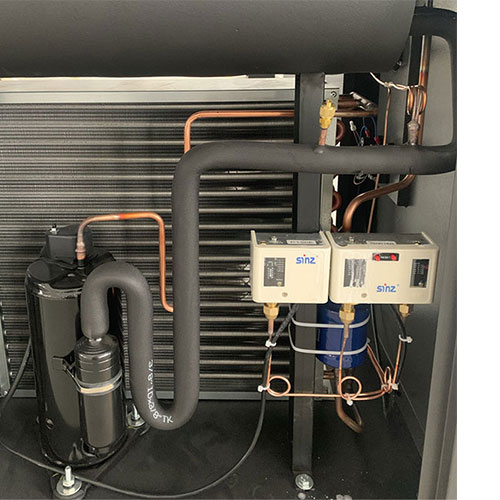

Th heat exchanger adopts counter-current design, high heat exchange efficiency and small volume
The vapor-water separator adopts three-stage separation method: direct collision separation + low-speed centrifugal separation + stainless steel wire mesh mist elimination separator, which separates 99.9% of liquid moisture from the cooled compressed air, prevents the secondary evaporation of water, and ensures the low dew point quality of the finished product. The low dew point quality of the finished product is guaranteed
Product Specifications
| Model | BRA065F | Capacity | 6.5Nm3/min |
| Voltage | 220V | Power | 11.3 kw |
| Inlet/Outlet Connection | G1(1/2) | Weight | 65kg |
| Dimensions | 850*500*820mm | Intake temperatures | <45℃ |
| Working pressure | 0.6-1.0Mpa | Pressure dew point | 2-10℃ |
Product Recommendation
Why Partner with Us?

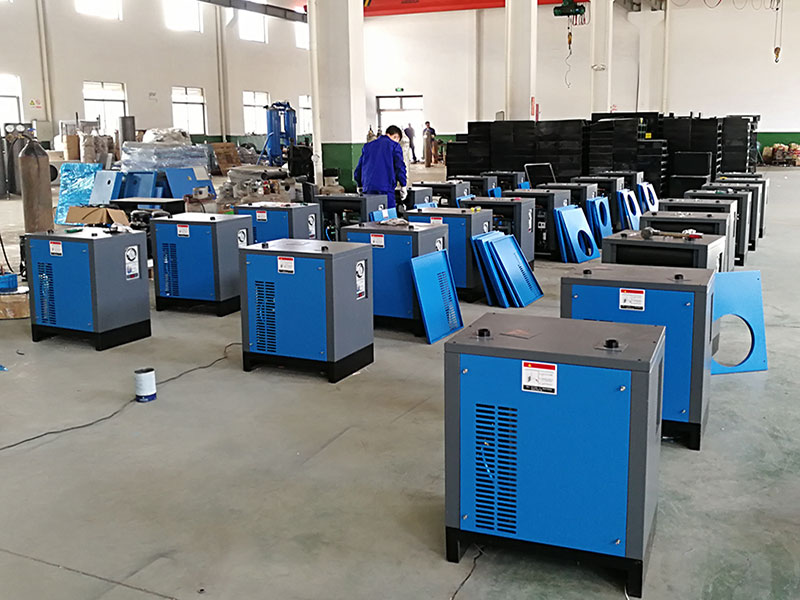

Customized Solutions
Every business has unique compressed air requirements. Our team of experienced engineers will work closely with you to assess your application, flow rate needs, and quality standards. We can customize our dryer with additional features—such as high-pressure compatibility (up to 16 bar), low-temperature operation (for cold environments).Or integrated filtration systems—to meet your exact specifications. We also design complete air post-treatment systems, combining dryers with filters, regulators, and receivers, to deliver a turnkey solution.
According to the user’s requirements, we can provide various types of air purification equipment with different characteristics. Such as: air-cooled, water-cooled, standard, non-chlorofluorocarbon, high-temperature, instrument, single-chip microcomputer, programmable, industrial control computer, variable frequency, high pressure, explosion-proof and corrosion-resistant.

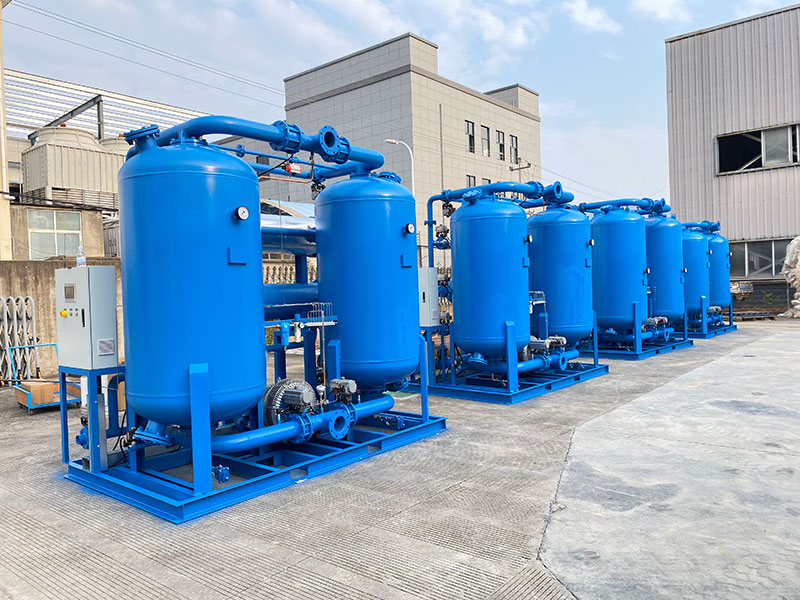

Innovation & Patented Technology
After 22 years of continuous innovation, Borin, based on the absorption and integration of advanced foreign air separation technologies and in combination with the actual working conditions in China, has developed the Borin ultrafiltration purification equipment. This equipment is an excellent post-treatment purification device for various oil-laden and oil-free air compressors and has obtained numerous patents.
Our air post-treatment equipment products are widely applied in various fields such as petrochemicals, power, shipbuilding, aerospace, electronics, metallurgy, mechanical processing and manufacturing, vehicle testing technology and manufacturing, textiles, chemical fibers, light industry, instruments, rubber, food, and air separation technology.
National Reach & Global Export Success
Domestic Market:
Our air post-treatment equipment has been sold in 30+ provinces/municipalities across China. And play a key role in national key projects (e.g., large power plants, aerospace manufacturing bases).
Global Export:
We’ve shipped complete sets of equipment to Brazil, Australia, Iran, India, Indonesia, Vietnam, Saudi Arabia, and other countries in Southeast Asia, the Middle East, Central Asia, and Africa. Our CE certification ensures seamless integration into international supply chains.
Investing in the right compressed air dryer is not just about moisture removal—it’s about safeguarding your equipment, improving product quality, and optimizing operational costs. Our 6.5 Nm³/min refrigerated compressed air dryer delivers unmatched reliability, efficiency.
We’re not just a manufacturer—we’re your long-term partner for all your air post-treatment needs.Ready to Upgrade Your Compressed Air System? Partner with a Team That’s Seen It All（CONTACT US NOW）
