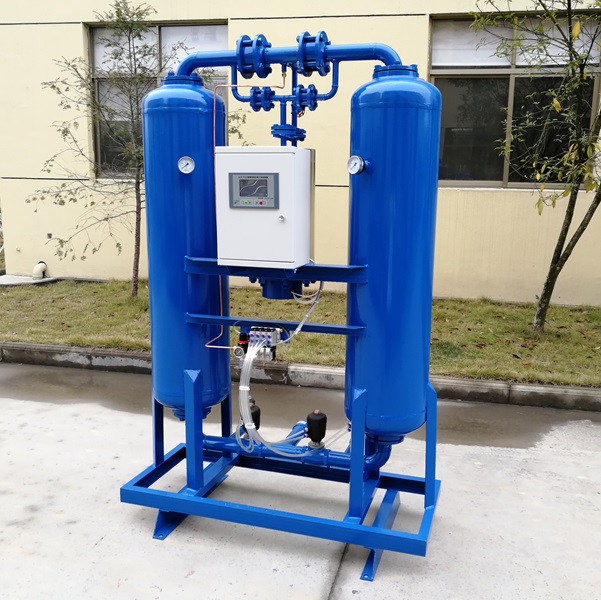

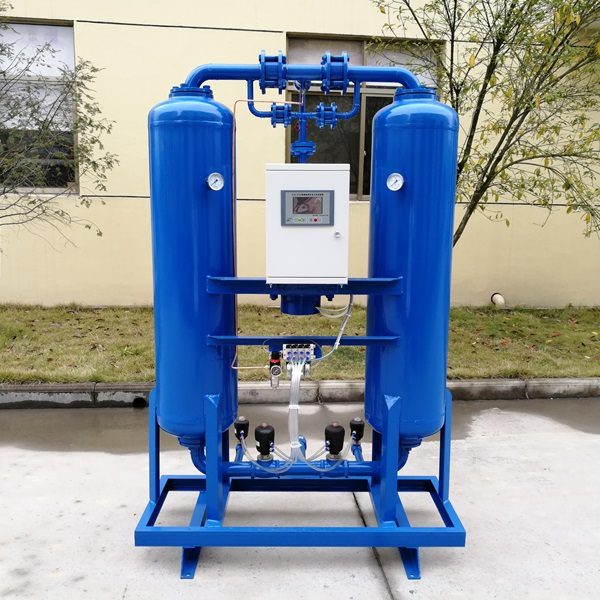

Our factory produces this 11 Nm³/min rotary air dryer, which is a medium-flow, highly stable compressed air drying equipment. It is mainly suitable for industrial scenarios where there are high requirements for dew point (-40 to -70℃), continuous and stable supply of gas is needed, and energy consumption reduction is desired. It is particularly suitable for key industries such as electronics manufacturing, food processing, and automotive parts.
Product Specifications
| Model | BRVD010 | Capacity | 11 Nm3/min |
| Voltage | 220V | Power | 4kw |
| Inlet/Outlet Connection | G2 | Weight | 430kg |
| Dimensions | 1250*630*2150mm | Intake temperatures | <50℃ |
| Working pressure | 0.6-1.0Mpa | Pressure dew point | ≤-20℃ |
| Place of origin | Zhejiang, China | Warranty | 1 Year |
Product Features
High requirement and low energy consumption
The 11 Nm³/min desiccant air dryer can maintain a stable dew point of -40 to -70℃ , far exceeding the 2℃-10℃ of ordinary cold dryers. It can meet the strict gas supply standards for precision production, avoiding product defects caused by moisture. In addition, it uses micro heating for regeneration, with a regeneration gas consumption of only 4-6%, much lower than the 15% of non-heated regeneration,.So it makes the utilization rate of compressed air higher and reduces operating costs.
High stability and automation

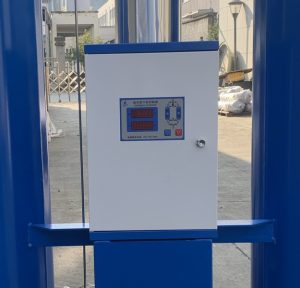

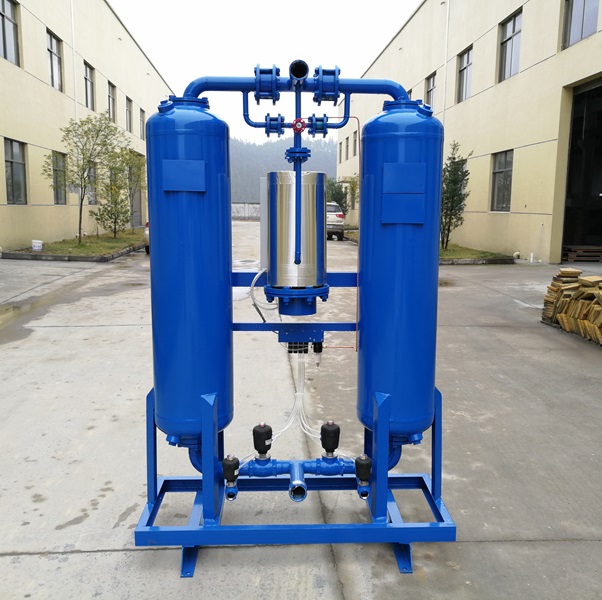

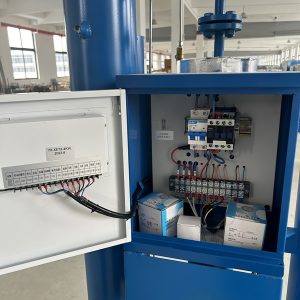

The dual-tower adsorption works alternately without shutdown for regeneration, ensuring uninterrupted gas supply 24 hours a day. In addition, the adsorbents are selected from high-quality activated alumina or molecular sieves, with a service life of up to 2-3 years.So it can reduce the replacement frequency. In terms of automation control, the compressed air dryer adopts a PLC automatic control system, It can enable dew point control, remote monitor, and other functions, At last,reduce operational difficulty.
Wide adaptability and customization
11 Nm³/min gas volume is just suitable for the production lines of small and medium-sized enterprises. Especially fits A single 75-90kw air compressor or the centralized use of multiple small-power air compressors.It can stay in a small floor area and be flexible arrangement in the corner of the workshop, without occupying valuable production space. In addition, we provide customization services to meet your reasonable factory adaptation requirements.
Contact Us
The 11 Nm³/min rotary air dryer offers high energy efficiency together with stable and intelligent operation, making it suitable for industrial applications with high air quality requirements.
If you are interested in this model or other types of desiccant air dryers, please feel free to contact us for technical details and pricing.We provide competitive pricing, professional support, and a one-year warranty for reliable and worry-free operation.
If you want to learn more about us, please click on our social media accounts below.
