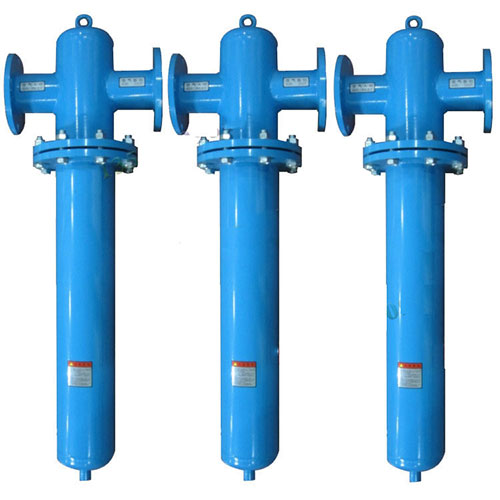

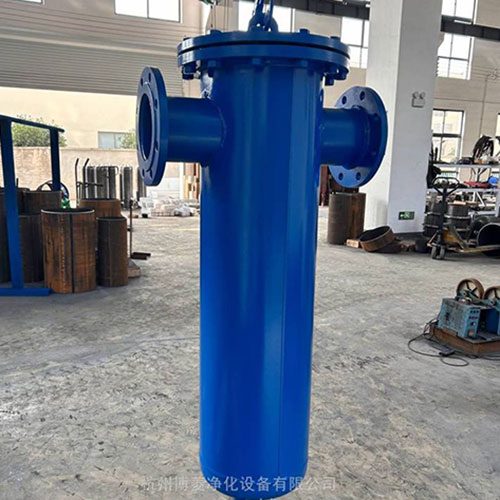

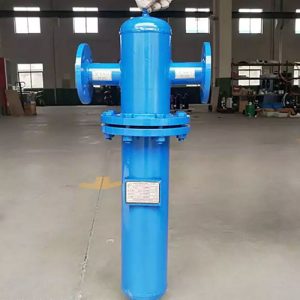

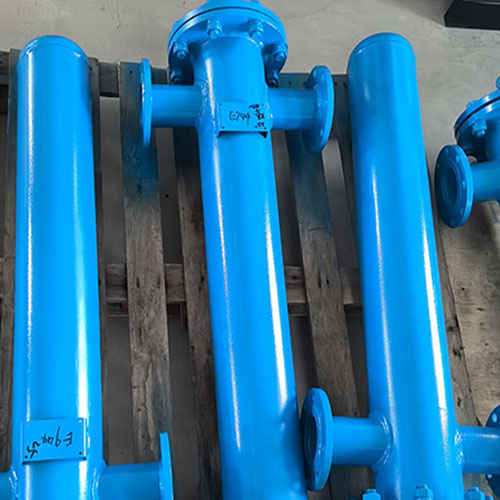

Borin compressed air flange precision industrial air filter can remove solid particles, dust, rust, as well as contaminants from compressed oil and hydrocarbons in the compressed air. It is an indispensable device for ensuring the quality of compressed air. According to the customer’s requirements for the quality level of compressed air, it can be selectively assembled. The filter element uses the original imported Hankson filter element, which has high filtration accuracy and a long service life.
Product Specifications
| Model | Import-export distance | length | weight |
| BLAF-15m³ | 34mm | 1030mm | 13.8kg |
| BLAF-20m³ | 34mm | 1130mm | 14.5kg |
| BLAF-25m³ | 34mm | 1230mm | 15kg |
| BLAF-30m³ | 43mm | 1070mm | 21.5kg |
| BLAF-35m³ | 43mm | 1070mm | 21.8kg |
| BLAF-40m³ | 43mm | 1170mm | 22.4kg |
| BLAF-45m³ | 43mm | 1170mm | 22.6kg |
| BLAF-50m³ | 43mm | 1270mm | 23.6kg |
| BLAF-55m³ | 47mm | 1270mm | 30kg |
| BLAF-60m³ | 47mm | 1270mm | 40kg |
Product Features
High-efficiency impurity removal
The flange industrial air filter adopts a multi-level filtration system. Which can effectively remove water, oil mist and solid particles. It can be flexibly combined with different precision filter elements, especially for achieving deep purification of water, oil mist and solid particles. It can remove particles of 0.01μm and above, and the oil mist concentration can be controlled at 0.01ppm/wt.
Reliable material, strong adaptability

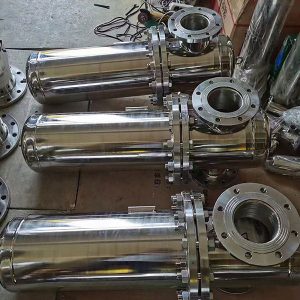

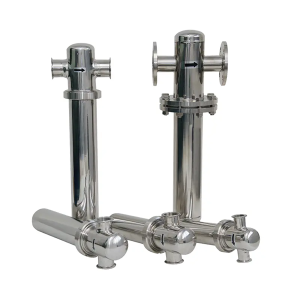

The filter body is made of 304 or 316L stainless steel, which is corrosion-resistant and heat-resistant. The filter element material has high cleanliness and does not cause any pollution to the filtering medium. The anti-corrosion coating can give the surface a high quality finish and ensure long-term high anti-corrosion performance
Flexible assembly
Flexible assembly according to customer requirements for compressed air quality level.It can freely combine different functional filter elements such as pre-filter, medium-efficiency filter, high-efficiency filter (HEPA), and activated carbon adsorption to form customized filtration solutions.
Contact Us
As a professional manufacturer of air post-treatment equipment (including refrigerated dryers, adsorption dryers, and air compressors) and a total solution provider, our flange industrial air filter is engineered to address these challenges head-on. It integrates flange connection’s stability with high-performance filtration technology, delivering reliable, cost-effective, and customized air purification for industrial scenarios.
Welcome to our social media platform to learn more about our products. If you have any needs, please don’t hesitate to contact us.
