Product Introduction
diy air dryer for air compressor
| Model | BRWD006 | Capacity | 6.8 Nm3/min |
| Power | 0.2kw(0.27hp) | Inlet/Outlet Connection | G1.5/RC-1.5 |
| Weight | 290kg | Dimensions | 1100*500*2035 mm |
| Work Pressure | 0.6-1.0MPa(6-10bar) | Recycled Gas Consumption | 8-10% |
| Intake Temperatures | ≤50℃ | Dew Point | -20~-40℃ |
Product Features
Low energy consumption and high efficiency

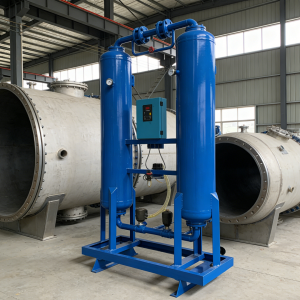

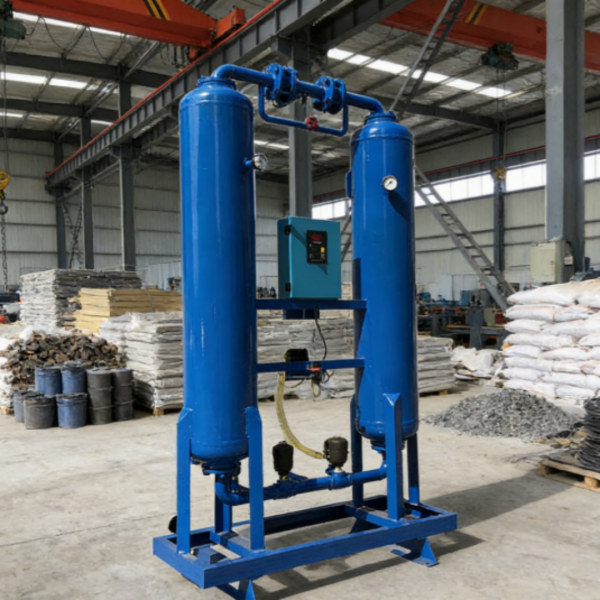

The 6.8 Nm³/min heatless adsorption dryer operates entirely without an external heat source, utilizing only 5%–10% of the already dried compressed air for adsorbent regeneration. This design drastically cuts energy consumption compared to conventional heated dryers.
In terms of performance, the dryer reliably maintains a stable pressure dew point between –40°C and –70°C, ensuring thorough moisture removal from compressed air. This effectively prevents common issues such as pipeline corrosion, equipment freezing, and product contamination caused by residual moisture in the air supply system.
Integrated with Premium Components

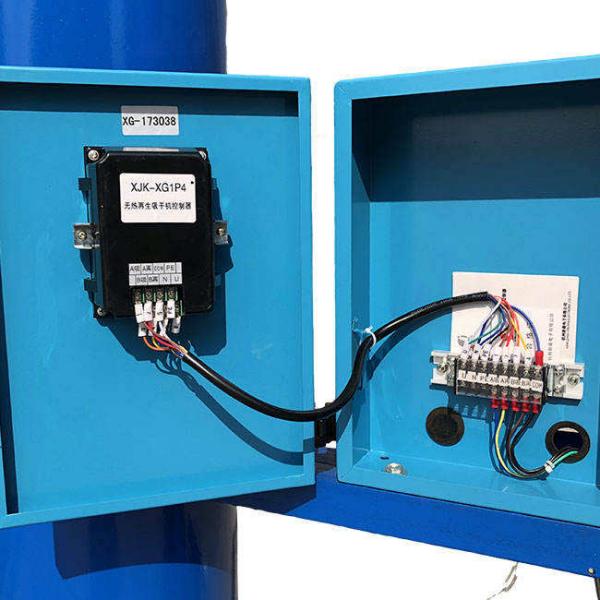

The 6.8 Nm³/min heatless desiccant air dryer for compressors is equipped with an automated PLC control system, which ensures continuous dry air supply by managing timed switching between twin towers, allowing for fully autonomous operation.
For moisture adsorption, the unit utilizes a highly absorbent desiccant with an extended service life of 3 to 5 years under standard operating conditions, significantly reducing maintenance frequency and replacement costs.
Customized Solutions for Your Unique Needs
Looking for a reliable air dryer? Protect your pneumatic systems with our solution. We offer a high-performance air dryer for pneumatic applications. It ensures clean, moisture-free air for maximum efficiency. This unit is built for easy monitoring and low maintenance. It provides long-term reliability in demanding environments. Our minimum order quantity is just 1 unit. We also support OEM and ODM projects. Enjoy custom pneumatic air dryer solutions tailored to you. All are available at a competitive price. Contact us today to enhance your system. Experience our cost-effective drying technology.
