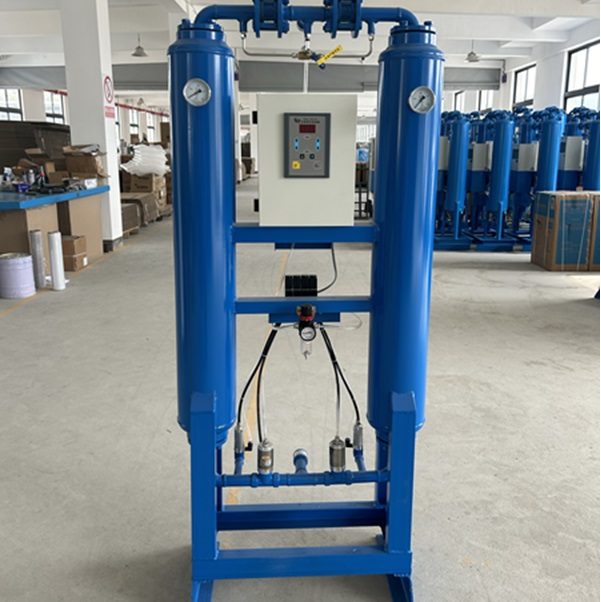

This Borin 2.6 Nm³/min heatless air dryer for a compressor is an industrial-grade drying equipment specifically designed for medium and small flow requirements. With its core advantages of “high efficiency, energy saving, and safety and reliability”, it has become the preferred choice for drying equipment for small and medium-sized enterprises in the field of compressed air treatment. This product adopts dual-tower adsorption technology, which can stably reduce the dew point of compressed air to -40 to -70℃. Therefore, the air dryer for a compressor is widely used in industries such as electronics and power, food and beverage, medical and chemical.
Product Specifications
| Model | BRWD002 | Capacity | 2.6 Nm3/min |
| Power | 0.2kw(0.27hp) | Inlet/Outlet Connection | G1(1/2)" |
| Weight | 120kg | Dimensions | 700*350*1680 mm |
| Work Pressure | 0.6-1.0MPa(6-10bar) | Recycled Gas Consumption | 8-10% |
| Intake Temperatures | ≤45℃ | Dew Point | -20~-40℃ |
Product Features
Low consumption and high performance
The 2.6 Nm³/min heatless adsorption air dryer for a compressor operates without the need for an additional heat source, consuming only 5%-10% of the dried air to complete the adsorbent regeneration process. This results in significantly lower operational energy consumption compared to heated dryers. In terms of drying performance, it can maintain a stable pressure dew point between -40℃ and -70℃, deeply removing water vapor from the compressed air. This effectively eliminates risks such as pipeline corrosion, equipment freezing, and contamination.
High reliability and durability
The 2.6 Nm³/min heatless desiccant air dryer for a compressor operates with an automated PLC control system. This system manages the automatic, timed switching between twin towers to ensure a continuous supply of dry air, enabling fully autonomous operation.
For the adsorbent, it uses a highly absorbent desiccant, which under standard operating conditions offers a service life of 3 to 5 years. This significantly reduces the need for frequent replacements.
Easy maintain and wide applicability
The 2.6 Nm³/min heatless adsorption air dryer for a compressor has a compact design, optimized for small to medium flow rates. It saves floor space and installs flexibly, fitting easily into workshops with limited room.This dryer serves many industries. In the electronics and semiconductor sector, it protects circuits from moisture damage. In the food and beverage industry, it supplies dry, clean air to meet strict hygiene and safety standards.
Contact Us
This heatless desiccant air dryer for a compressor has three main advantages:low consumption and high performance,high reliability and durability and easy maintain and wide applicability.If you are interested in this product or similar ones, please do not hesitate to contact us. We can offer you highly competitive prices and excellent services.
In addition, we also offer OEM/ODM services. We can customize the appearance and logo according to your brand requirements, expand the product line and enhance competitiveness.
