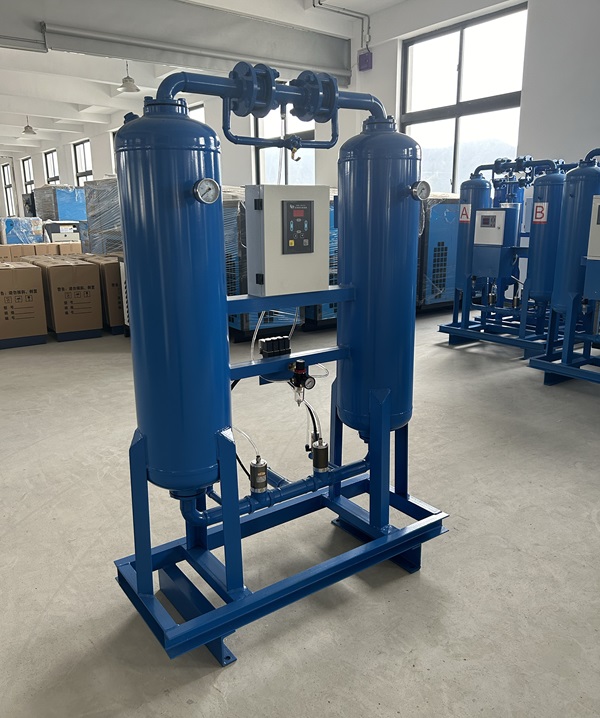

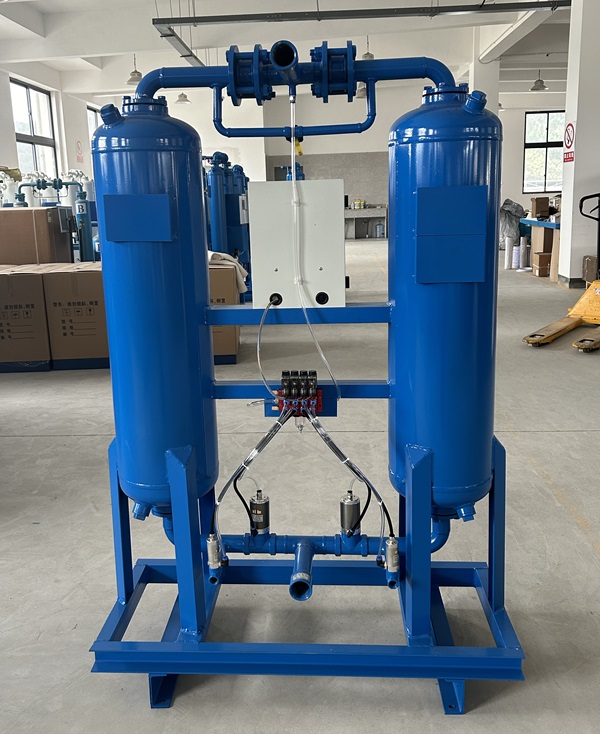

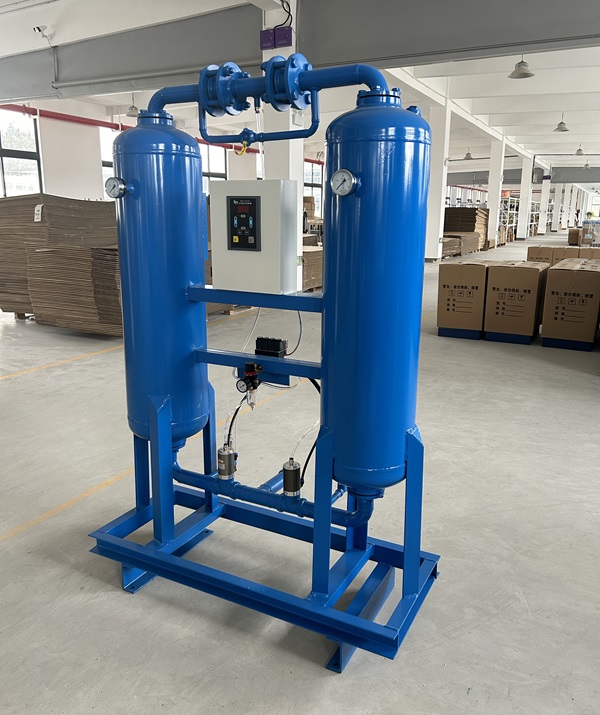

This Borin 3.8Nm³/min non-thermal regenerative adsorption air dryer and compressor is a distinctive product of our factory. This product does not require external heating. It can achieve cycle regeneration by simply utilizing the dry air it generates itself, with low energy consumption and the ability to consistently provide dry air with a dew point as low as -40℃ or even -70℃. Moreover, this product is mainly applicable to industries that require high levels of compressed air drying, such as electronics and semiconductors, food packaging, and medical and chemical industries.
Product Specifications
| Model | BRWD003 | Capacity | 3.8 Nm3/min |
| Power | 0.2kw(0.27hp) | Inlet/Outlet Connection | G1(1/2)" |
| Weight | 210kg | Dimensions | 1050*450*1700 mm |
| Work Pressure | 0.6-1.0MPa(6-10bar) | Recycled Gas Consumption | 8-10% |
| Intake Temperatures | ≤45℃ | Dew Point | -20~-40℃ |
Product Features
High performance and stability
This adsorption dryer uses adsorbents (such as activated alumina) for deep water removal, continuously providing ultra-dry air with a pressure dew point ranging from -40℃ to -70℃. This meets the strict dew point requirements of some precision manufacturing industries. Moreover, it employs high-quality switching valves to ensure the integrity of the working process, and is stable and reliable.
Energy-saving and durability

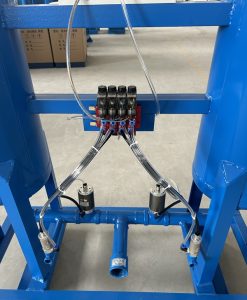

The regeneration process of this 3.8Nm³/min non-thermal desiccant air dryer does not require external electric heating or steam. It only needs to utilize a portion of its own dry air for circulation regeneration, resulting in extremely low energy consumption. Additionally, the product’s structure is durable and has a long maintenance cycle. The adsorbent typically has a lifespan of 3 to 5 years, which helps to reduce the overall usage cost.
Easy maintenance and operational intelligence

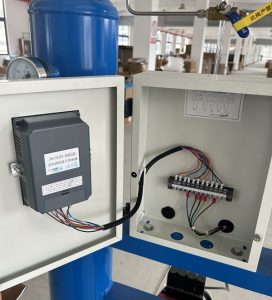

The desiccant air dryer adopts modular or compact design to save space, and is equipped with dedicated filling ports and discharge ports for the adsorbent, making the replacement of the adsorbent and equipment maintenance more convenient. Additionally, the compressed air dryer is configured with an automatic controller, which can achieve functions such as timed switching, remote control, and fault alarm, basically achieving fully automatic operation.
Recommend Models
Contact Us
In conclusion,this 3.8Nm³/min non-thermal regenerative adsorption air dryer and compressor has the following main features:high performance and stability,energy-saving and durability,easy maintenance and operational intelligence.
If you have any requirements that match this feature, please do not hesitate to contact us. We will offer you highly competitive prices and comprehensive services throughout the process. Additionally, we also provide OEM/ODM services.
