115V~60Hz Non-cycling refrigerated air dryer
The 115V~60Hz non-cycling refrigerated air dryer, with its outstanding performance of high efficiency, energy saving and stability, is widely used in various industrial fields, providing a reliable guarantee for enterprise production.
If you are looking for a high-performance and high-quality non-cycling refrigerated air dryer, please feel free to learn more about our 115V~60Hz Non-cycling Refrigerated Air Dryer.

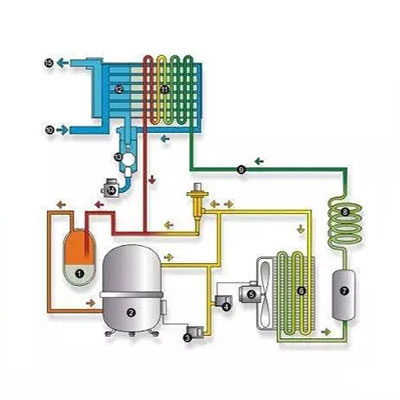

Principle Of peration
The amount of water vapor in compressed air is determined by the temperature of compressed air.
Under the condition of keeping the pressure of compressed air basically unchanged, lowering the temperature of compressed air can reduce the content of water vapor in compressed air, and the excess water vapor will condense into liquid.
According to the correspondence between saturation vapor pressure and temperature of water. The refrigerating device is used to cool the compressed air to a certain dew point temperature, precipitate the water contained, and discharge the water through the vapor-water separator and automatic drain, so that the compressed air can be dried.
Product Parameters
| Type | Refrigerated air dryer | Material | Metal, Aluminum, Cast Steel |
| Warranty | 1 Year | Place of origin | Zhejiang, China |
| Voltage | 115V~60Hz~1PH | Dimension(L*W*H) | 650*490*770 |
| Weight | 55 | Capacity | 50 CFM |
| Pressure dew point | 2-10℃ | Working pressure | 100psi ~ 200psi' (6~13bar) |
| OEM | OEM Service Provided | Video outgoing-inspection | Provided |
| Certification | ISO,CE | Machinery test report | Provided |
The Specificities Of Non-cycling Refrigerated Air Dryer
The amount of water vapor in compressed air is determined by the temperature of compressed air.
Under the condition of keeping the pressure of compressed air unchanged, lowering the temperature of compressed air can reduce the water vapor content in compressed air, and the excess water vapor will condense into liquid.
According to the correspondence between saturation vapor pressure and water temperature. The refrigerating device cools the compressed air to a certain dew point temperature, precipitates the water contained, and discharges the water through the vapor-water separator and automatic drain so that the compressed air can be dried.
Our Advantages
As a professional manufacturer of compressed air dryers and provider of air post-treatment solutions. We are equipped with advanced production facilities and a strict quality control system to ensure that every non-circulating refrigerated air dryer has outstanding performance and reliable quality. Our products adopt international advanced refrigeration technology and high-quality components, and have undergone strict quality inspection. They feature efficient water removal, energy conservation and environmental protection, and stable operation.
In addition, we also offer comprehensive air post-treatment solutions. According to the different needs of customers, we tailor the most suitable dryers and supporting equipment for them. Let customers have no worries.
Comprehensive demand assessment
Our professional technical team will gain a thorough understanding of the customer’s industry characteristics, production scale, the status of the existing compressed air system, and specific requirements for dry air. For instance, for customers in the chemical industry, considering the possible presence of corrosive gases in the production environment, we will focus on assessing the anti-corrosion requirements of the equipment.

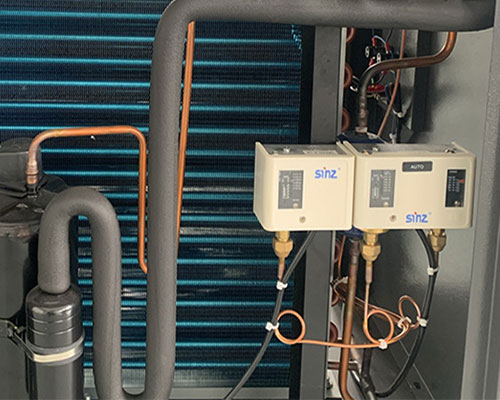

Personalized parameter customization
Based on the results of the requirements assessment, we customized the key technical parameters of the equipment. In addition to the conventional adjustable parameters such as rated processing capacity, working pressure range, intake air temperature, and pressure dew point. We can also customize the power of the refrigeration compressor, the type of refrigerant, power supply specifications, etc. according to the special needs of customers.

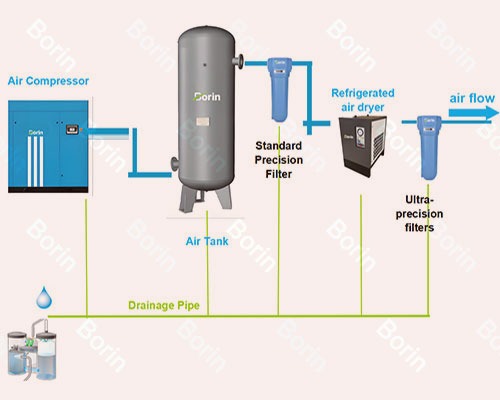

System integration optimization
Not only does it provide a single air dryer device, but it can also integrate and optimize the entire compressed air post-treatment system for customers. Based on the customer’s existing air compressors, air storage tanks and other equipment, the installation location and connection method of the non-circulation refrigerated air dryer should be reasonably planned. Ensure that the entire system operates efficiently and stably.
In a highly competitive market environment, choosing a non-cycling refrigerated air dryer with excellent performance and reliable quality is crucial for the development of an enterprise. If you are interested in our products or are seeking high-quality air drying solutions, please feel free to contact us at any time. We will serve you wholeheartedly.
