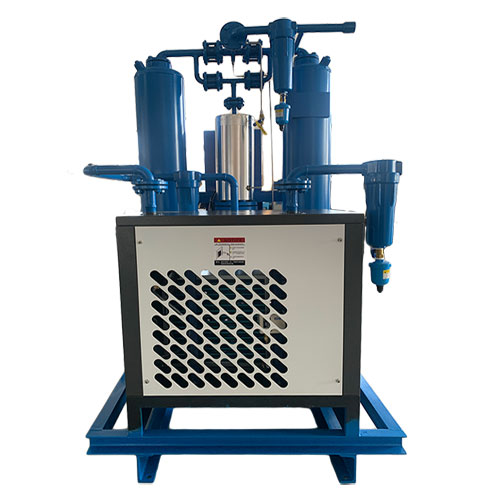

6.8m³ Low dew point combined air dryers
In the field of industrial manufacturing, compressed air is hailed as the “fourth major energy source”, and its quality is directly related to production efficiency, equipment lifespan and product yield. However, when traditional drying equipment is used to meet the strict demands of industries such as high-precision manufacturing, pharmaceutical electronics, and food packaging. It often encounters pain points such as unstable dew point, high energy consumption, and complex maintenance.
As an industry pioneer that has been deeply engaged in the field of Air compression equipment for more than 20 years. Borin, with its independently developed low dew point combined air dryers, has broken through industry bottlenecks with innovative technologies and provided enterprises with stable, efficient and energy-saving compressed air purification solutions.
Product Features
| Type | Air Dryer | Material | Cast Steel |
| Intake scheduling | 20-45℃ | Intake pressure | 0.6-1.0MPa |
| Regenerative air consumption | 3%-5% | Pressure dew point | Normal form -40℃ |
| Capacity | 6.8Nm³/min | Equipment size | 1300*1200*1880mm |
| Equipment weight | 680KG | Voltage | 220/50Hz |
| Air nozzle diameter | RC1/2 | Warranty | 1 Year |
Product Features
Low dew point
The low dew point combined air dryers can achieve a very low pressure dew point, typically below -40℃, and can reach as low as -70℃ according to the requirements of different users
Low energy consumption
The regeneration air consumption of low dew point combined air dryers is only 3%-5%, which greatly saves the consumption of compressed air.
Combined technology
The gas-liquid separator combines two separation technologies: cyclone separation and filter element separation. It can fully separate the cooled liquid water components and give full play to the efficiency of freeze-drying
Modular design

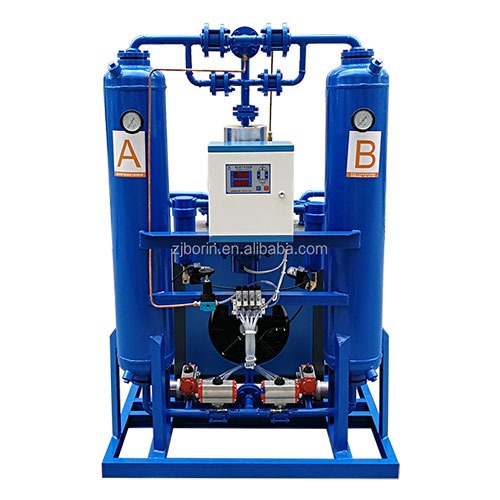

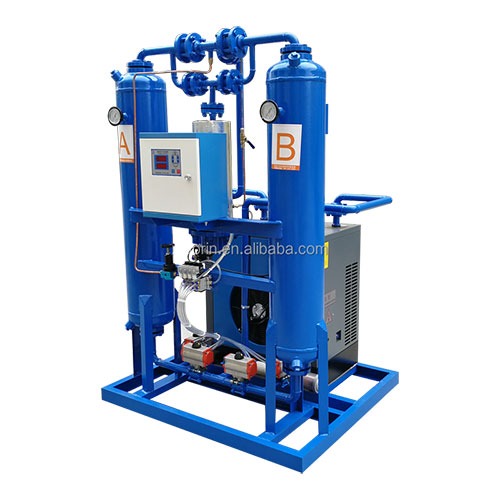

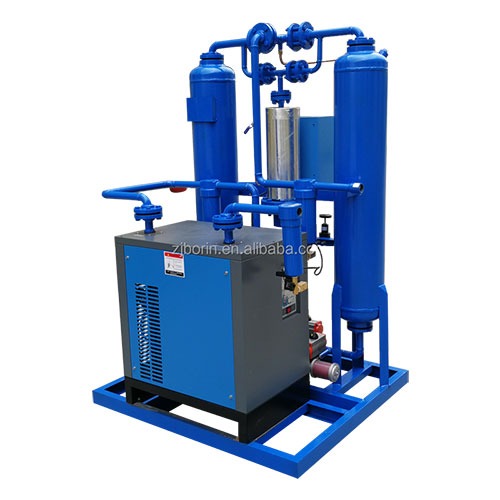

All the operation switches and display instruments of the Low dew point combined air dryers are concentrated on the panel of the box plate. The refrigerated air dryer and the adsorption regeneration air dryer can operate independently per the customer’s requirements, or both cooling and adsorption can be carried out simultaneously.
Use brand accessories
The refrigeration compressors adopt medium and high-temperature fully hermetic and semi-hermetic refrigeration compressors of brands such as RERFORMER, MANEUROP, BITZER, COPELAND, HANBELL and GMCC

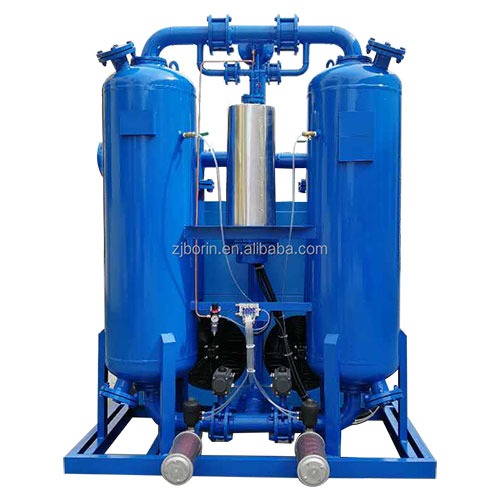

Adsorption air dryer section
It adopts imported brand pilot solenoid valves and pneumatic butterfly valves, which are reliable in performance, stable in switching and accurate in operation. The amount of regeneration gas can be adjusted according to the operating load requirements of the equipment and the level of air dew point to achieve energy-saving effects.
R&D And Manufacturing Capabilities
We have a professional R&D team, among which senior engineers account for 30%. The team is dedicated to the research and innovation of post-treatment technology for compressed air and has obtained more than 20 technical patents. We are equipped with modern production workshops and advanced manufacturing equipment.
From material procurement to finished product assembly, every process strictly follows the ISO 9001 quality management system standard to ensure that every low dew point combined air dryers has stable and reliable quality. Borin not only offers high cost-performance products, but also provides customized dryer designs and air post-treatment solutions based on customers’ special needs
With its strong R&D capabilities, Borin has successfully won numerous awards for OEM and ODM cooperation projects. There are more than 20 high-tech certificates for independently developed products.
Whether it is industries such as electronic manufacturing, pharmaceuticals, food and beverage, which have extremely high requirements for compressed air quality, or large-scale gas-consuming industries like chemical engineering and automotive manufacturing. Borin low dew point combined air dryers can meet your needs with outstanding performance, convenient operation and maintenance, and reliable quality.
If you are looking for an efficient, energy-saving and stable compressed air drying solution, please contact us. We will provide you with professional technical consultation and personalized solutions to help enterprises improve production efficiency and reduce operating costs!
