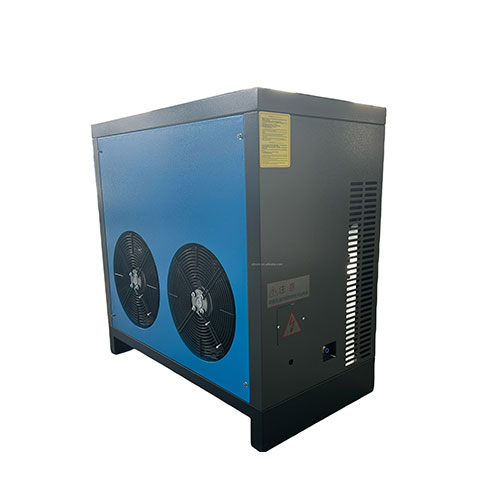

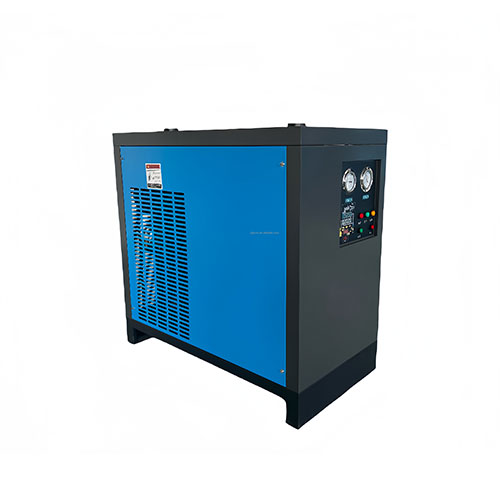

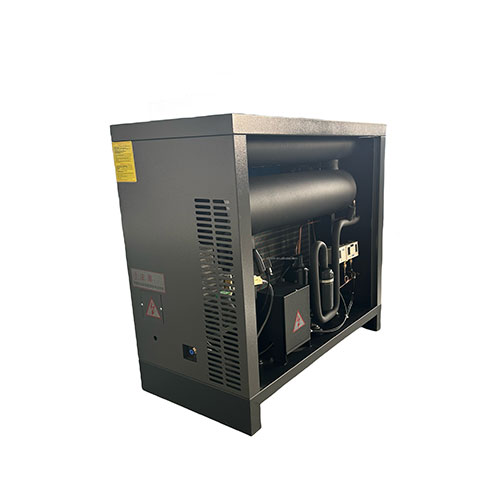

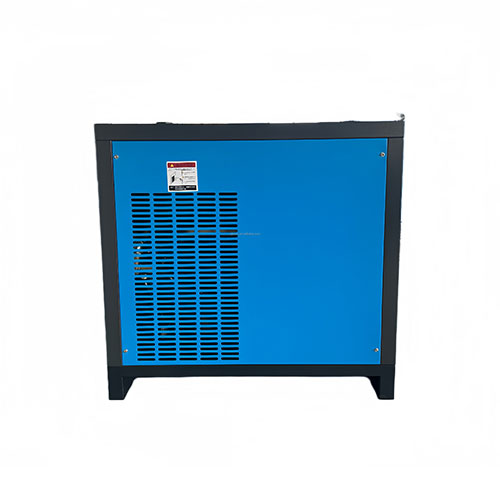

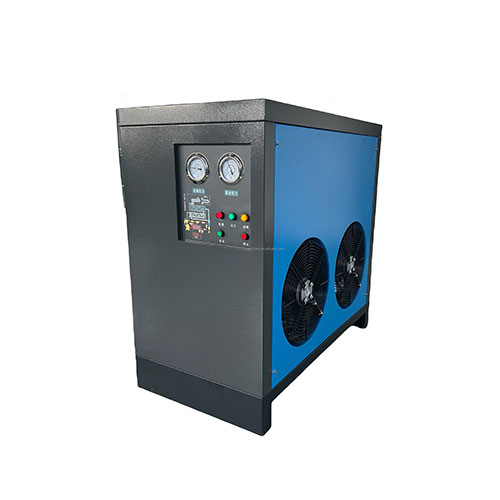

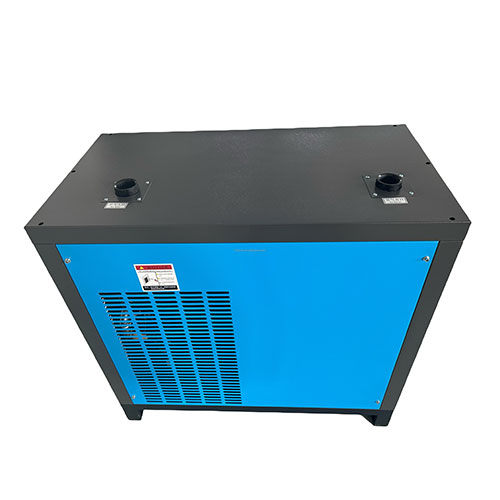

High temperature 6.5 Nm3/min Refrigerated Compressed Air Dryer
In industries where compressed air plays a vital role—from manufacturing and automotive to food processing and electronics—moisture in compressed air can lead to costly equipment damage, product defects, and operational downtime.
If your operations involve high-temperature compressed air (often above 40°C/104°F) and require a reliable flow rate of 6.5 Nm³/min, our high temperature 6.5 Nm³/min refrigerated compressed air dryer is engineered to solve your moisture problems efficiently.
As a leading manufacturer of compressed air dryers and provider of air post-treatment solutions, we combine cutting-edge technology, durable design, and end-to-end service to meet your unique industrial needs.
Principle of operation
The amount of water vapor in compressed air is determined by the temperature of compressed air. Under the condition of keeping the pressure of compressed air basically unchanged, lowering the temperature of compressed air can reduce the content of water vapor in compressed air, and the excess water vapor will condense into liquid.
According to the correspondence between saturation vapor pressure and temperature of water, the refrigerating device is used to cool the compressed air to a certain dew point temperature, precipitate the water contained, and discharge the water through the vapor-water separator and automatic drain, so that the compressed air can be dried.
Product Features

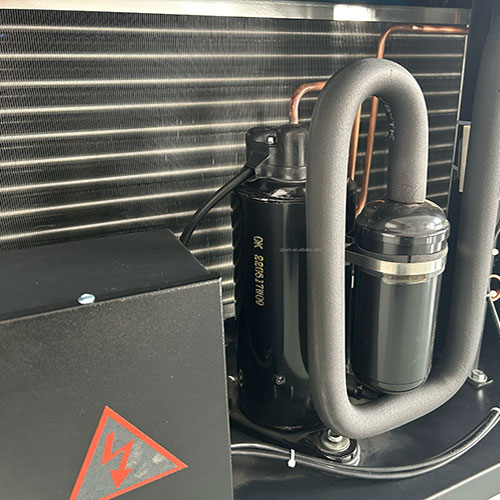

•Stable dew point control: It can still provide a stable pressure dew point of 2~10℃ under high temperature and high humidity conditions to avoid ice blockage or moisture residue.
•Efficient heat exchange: It is preferred to use equipment with high-efficiency threaded tubes or plate heat exchangers, which can improve the heat exchange efficiency between refrigerant and air and reduce energy consumption.

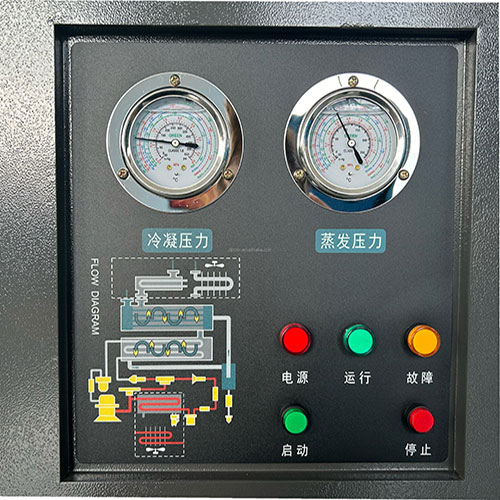

•Durable key components and low maintenance: The core components are all made of brands that meet CE or UL certification, compressor brands (such as Danfoss, Copeland, and Meizhi), and evaporator materials (stainless steel anti-corrosion), so the maintenance requirements are minimal, thereby reducing downtime and operating costs.
•Anti-icing design: Adopt intelligent hot gas bypass valve or dual refrigerant circuit technology to avoid shutdown caused by low temperature icing
•High cost performance: While ensuring product quality, the price is favorable, which can meet the application scenarios of painting, pneumatic instruments, pneumatic tools, sandblasting, air movement and mixing, and particle product transportation.
•Warranty and spare parts supply: The whole machine warranty is ≥1 years, the core components (such as compressors) warranty is ≥2 years, and the after-sales service is permanent.
Product Specifications
| Model | BRC065F | Capacity | 6.5 Nm3/min |
| Voltage | 220V/50Hz | Power | 1.3 kw |
| Inlet/Outlet Connection | G1.5 | Weight | 160kg |
| Dimensions | 900*550*970 mm | Intake temperatures | <85℃ |
| Working pressure | 0.6-1.0Mpa | Pressure dew point | 2-10℃ |

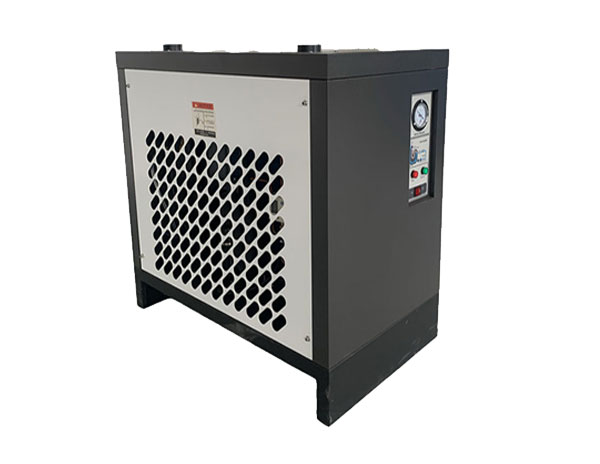

Product Recommendation
Why Partner with Us?
Customization Expertise
No two industries are alike. Our engineers collaborate with you to design tailored solutions, whether integrating the dryer into a new system or retrofitting it into legacy infrastructure.
End-to-End Air Treatment Ecosystem
Pair the 6.5 Nm³/min dryer with our high-efficiency filters, desiccant dryers, or nitrogen generators for a complete air treatment system that meets stringent quality standards.
Global Compliance & Certifications
All products adhere to CE, UL, and ISO standards, ensuring safety and reliability across markets. We also offer customization for regional compliance requirements.
24/7 Technical Support & Field Service
our high temperature 6.5 Nm³/min refrigerated compressed air dryer with a 1-year comprehensive warranty. This covers all core components (including the desiccant bed, control system, and stainless steel casing) against manufacturing defects. During the warranty period, we provide free replacement parts to resolve issues quickly.
Who Can Benefit from Our High Temperature 6.5 Nm³/min Refrigerated Compressed Air Dryer?
This dryer is ideal for industries and applications where high-temperature compressed air is a challenge:
•Automotive industry: For dry air in painting booths (prevents paint defects) and pneumatic tools (avoids rust).
•Plastics manufacturing: For injection molding (dry air prevents bubble formation in plastic parts).
•Food & beverage: For packaging (dry air prevents mold growth) and pneumatic conveying (avoids product contamination).
•Metalworking: For air-powered tools and machinery (prevents corrosion in metal parts).
•Power generation: For compressed air used in turbine control systems (ensures reliable operation).
If you’re struggling with moisture in high-temperature compressed air, our High Temperature 6.5 Nm³/min Refrigerated Compressed Air Dryer is the solution you need. As your partner in air post-treatment, we’ll work with you to assess your needs, design a customized system, and provide ongoing support to keep your operations running smoothly.
Get in touch today for a free consultation and quote. Let’s build a more efficient, reliable compressed air system for your business.(CONTACT US)
