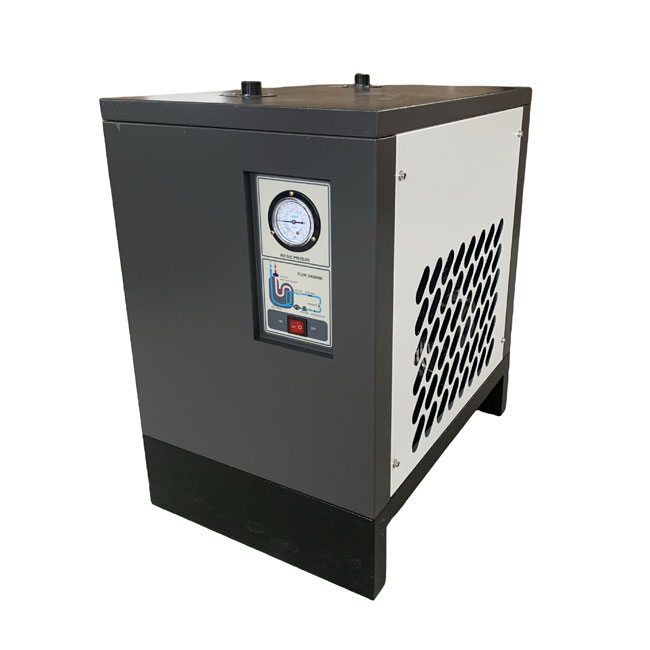

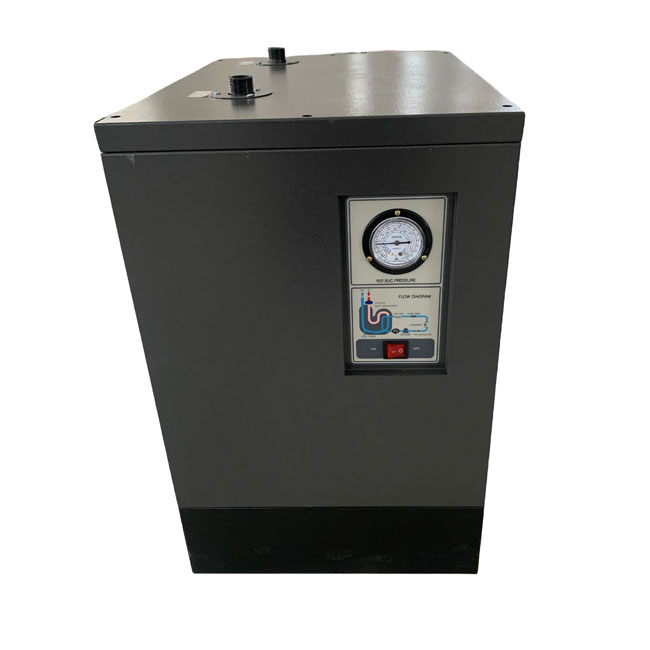

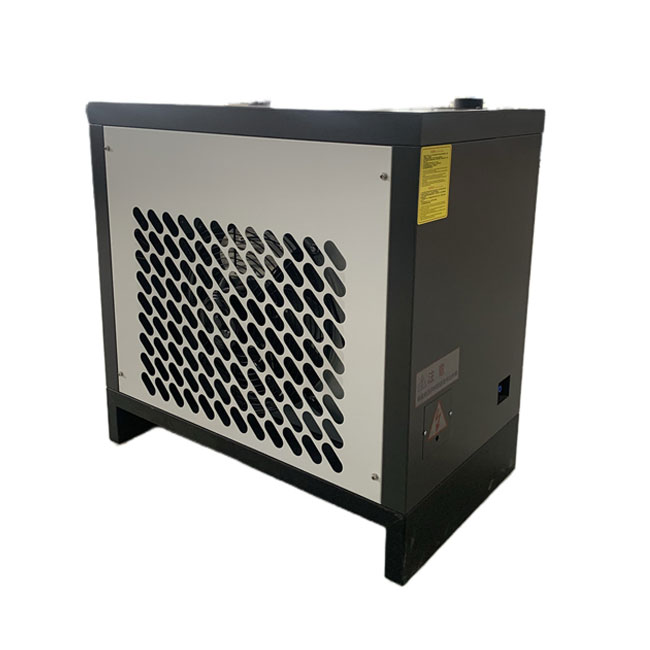

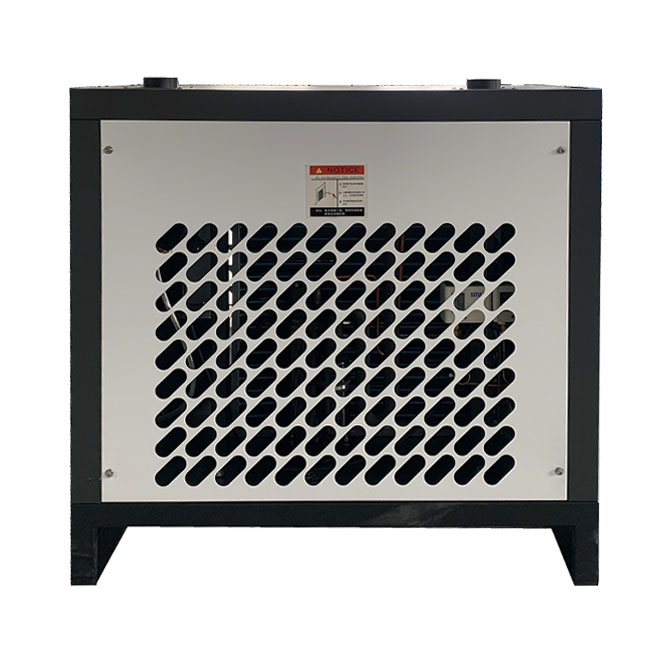

1.6Nm³/min Refrigerated Air Dryer
In industrial production, the quality of compressed air plays a crucial role in numerous production processes and product quality. As a professional manufacturer of compressed air dryers and provider of air post-treatment solutions, we have specially introduced the 1.6Nm³/min refrigerated air dryer for you, helping your enterprise achieve more efficient and stable production.
Product Features

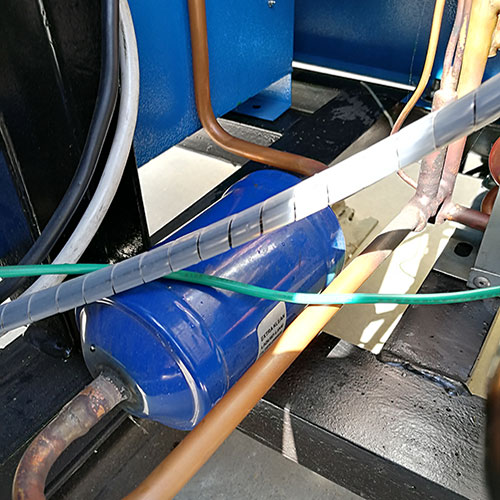

Powerful performance
Our 1.6Nm³/min refrigerated air dryer utilizes advanced refrigeration technology. It cools the air to lower its temperature, causing the moisture in the humid air to condense and precipitate, thereby producing dry and clean compressed air. The pressure range of the 1.6Nm³/min refrigerated air dryer is 0.6 – 1.6Mpa, which perfectly matches the common industrial gas source pressure and ensures stable operation under various working conditions. In terms of gas volume handling, it precisely matches the flow rate of 1.6Nm³/min, efficiently meeting the gas demand for production of corresponding scale.

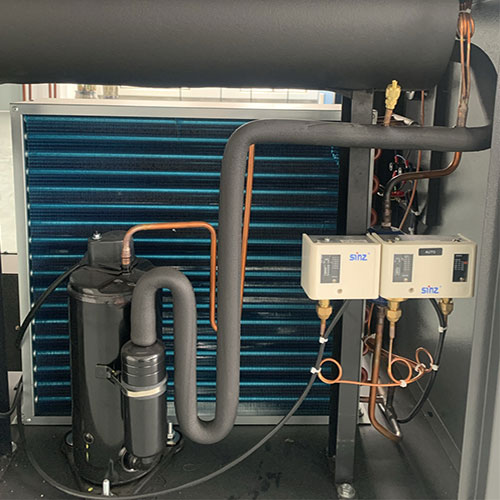

High-quality configuration
To ensure the long-term safe, efficient and reliable operation of the equipment, we strictly control the selection of components. The refrigeration components and control elements all adopt internationally renowned high-quality brands, which significantly extends the service life of the equipment.

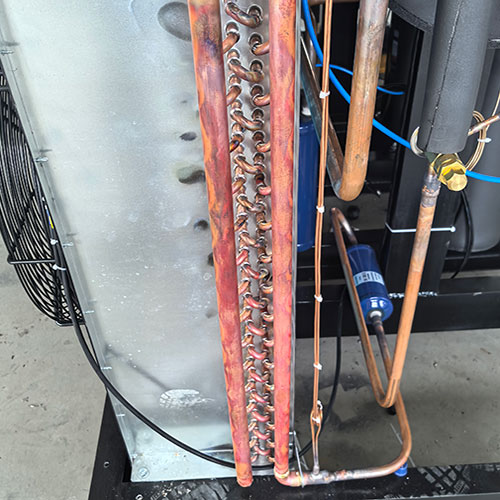

The specially designed secondary condenser ingeniously utilizes the outlet cooling source. It not only ensures a good heat dissipation effect for the machine’s refrigeration system, but also increases the outlet temperature of the compressed air, saving energy while avoiding the loss caused by condensation on the pipeline.

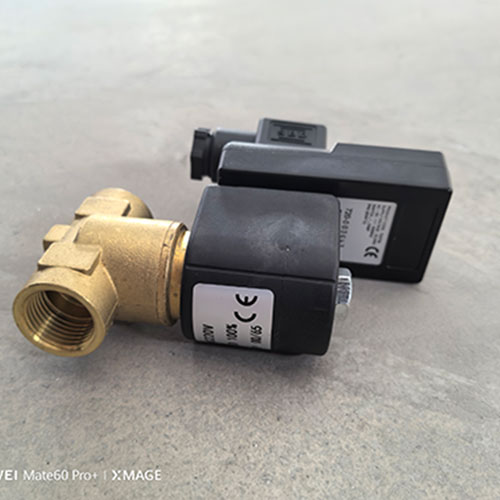

The highly efficient air moisture removal device, combined with the excellent automatic drainage valve, can continuously and stably discharge the condensate water outside the machine, further ensuring the stability of equipment operation and the dryness of compressed air.
In addition, the machine is equipped with high-precision protection devices such as high-voltage switches, low-voltage switches, water condenser safety valves, and overload relays, providing comprehensive protection for the safe operation of the equipment.
Convenient operation

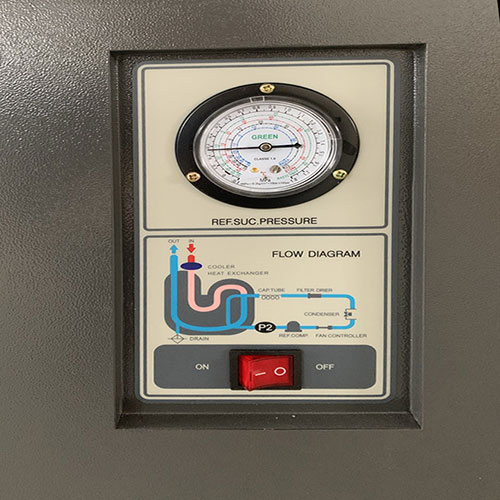

1.6Nm³/min refrigerated air dryer is equipped with a clear and understandable control panel. The operator only needs to simply set the relevant parameters to enable the automatic operation of the equipment. The operating status of the equipment is displayed in real time, making it convenient for the operator to promptly grasp the equipment situation.

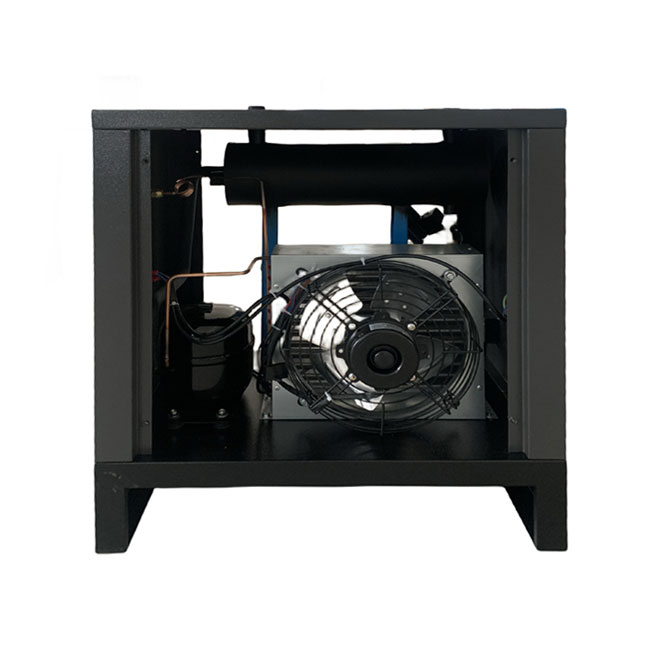

In terms of maintenance, 1.6Nm³/min refrigerated air dryer has a well-designed structure. Its key components are easy to disassemble and replace, making the daily maintenance process simple and convenient. This significantly reduces the downtime for equipment maintenance and enhances the equipment’s effective utilization rate.
Product Specifications
| Model | BRC016F | Capacity | 1.6Nm3/min |
| Voltage | 220V/50Hz | Power | 0.65 kw |
| Inlet/Outlet Connection | G1 | Weight | 90kg |
| Dimensions | 600*440*840mm | Intake temperatures | <85℃ |
| Working pressure | 0.6-1.0Mpa | Pressure dew point | 2-10℃ |
Product Recommendation
What Can We Offer

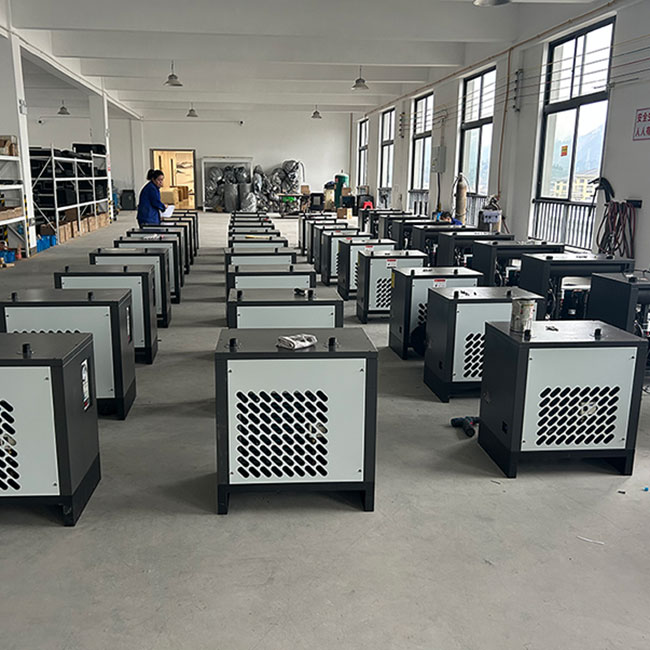

Customized service
We are well aware that the production demands and working conditions of each enterprise vary. Therefore, leveraging our profound technical expertise and rich industry experience, we provide customized services for our clients.
Whether you need a compressed air dryer with a processing capacity exceeding the standard specification, or have unique requirements for special specifications, materials, temperature, pressure, control methods, etc. We can tailor the most suitable compressed air dryer for your enterprise based on your specific parameters and requirements. This ensures that the equipment perfectly fits your production process and provides strong support for your production operations.
—Flexible adjustment of parameters
Based on parameters such as gas pressure, environmental temperature, and dew point requirements, the processing capacity, refrigeration power, and drainage method (such as electronic drainage device or zero-consumption gas drainage device) of the dryer are customized.
—Upgrade in material and protection
For corrosive environments such as those in the chemical industry and along the coast, a stainless steel casing or anti-corrosion coating can be selected. In cold regions, a preheating module can be added to prevent the refrigerant from freezing.
—Integrated solution
Based on the customer’s existing air compression system, we provide a coordinated design for the dryer, filter and storage tank, optimize the pipeline layout, reduce pressure drop losses, and improve the overall energy efficiency.
One-stop procurement
In addition to providing high-quality compressed air dryers and customized services, we also offer one-stop procurement of accessories for our customers. During the use of the 1.6Nm³/min refrigerated air dryer, if you need to replace or add accessories, you can easily purchase various high-quality accessories that match the equipment at Borin, which greatly saves your procurement time and cost, and provides you with a convenient and worry-free service experience. From the equipment to the accessories, we fully meet your needs and are your reliable partner for air post-processing equipment and solution.
Available component procurement:

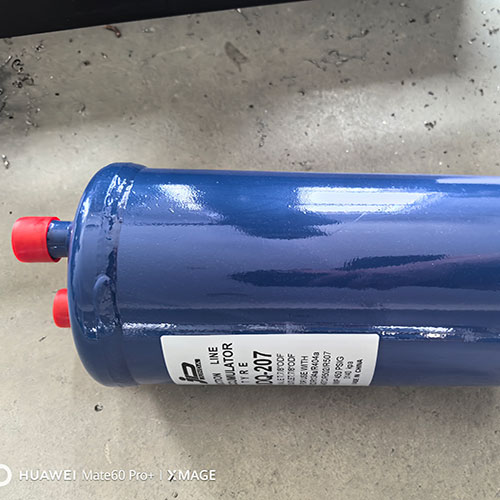

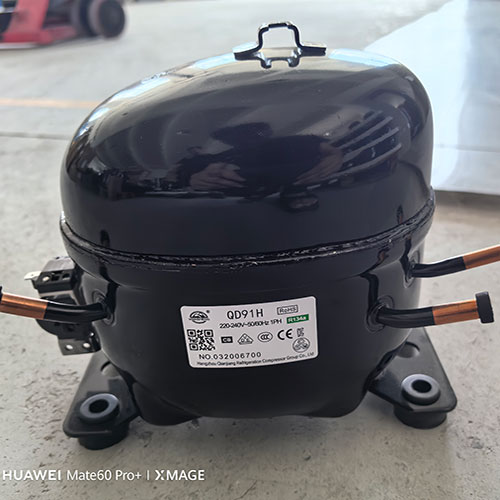

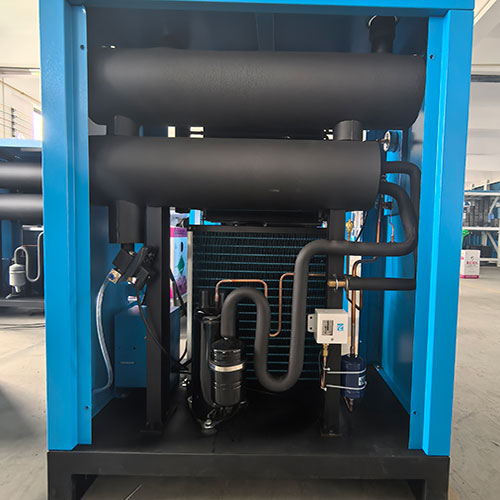

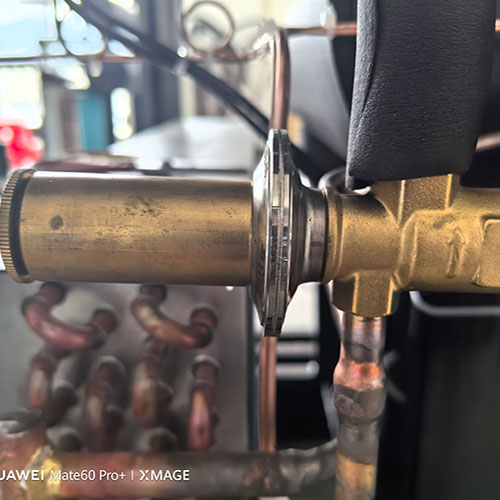

Condenser, drain valve, fan, refrigeration compressor, pressure switch, drying filter, evaporator, condenser, expansion valve
If you are interested in this product or our customized services, please feel free to contact us at any time. Our team will provide you with detailed explanations and professional advice. You can also raise more questions regarding the application scenarios of the product, technical details, etc., so that I can offer you more comprehensive information.
