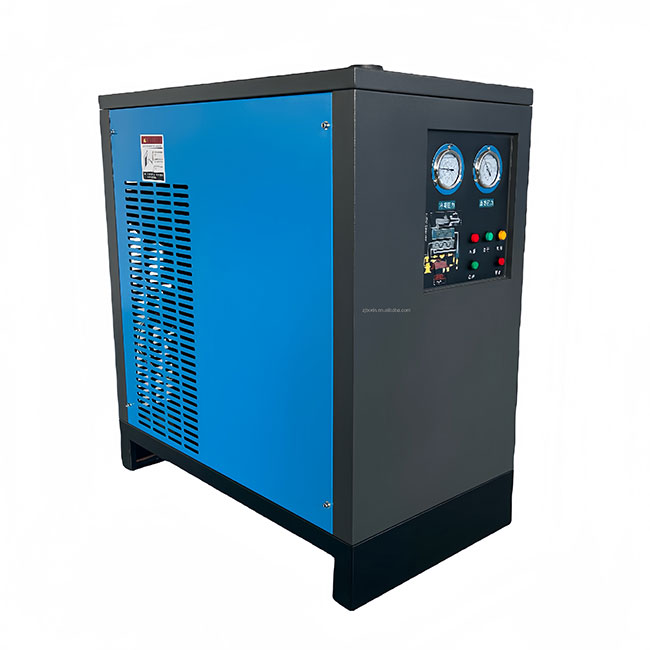

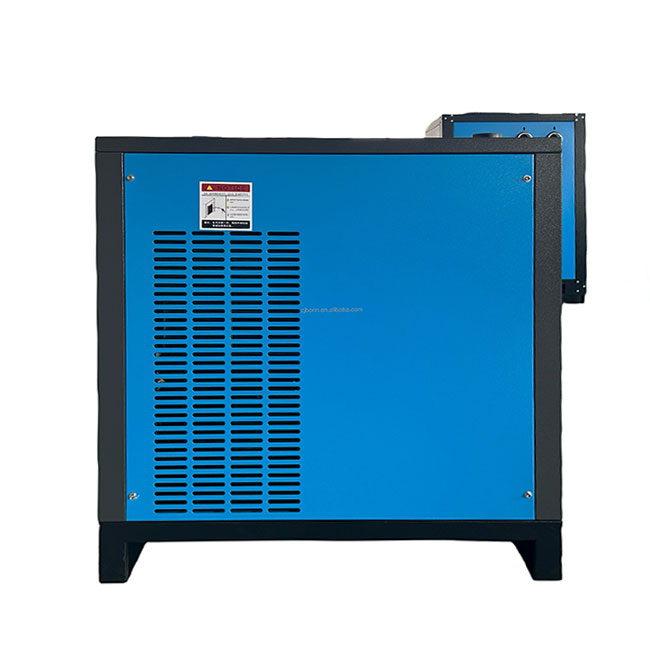

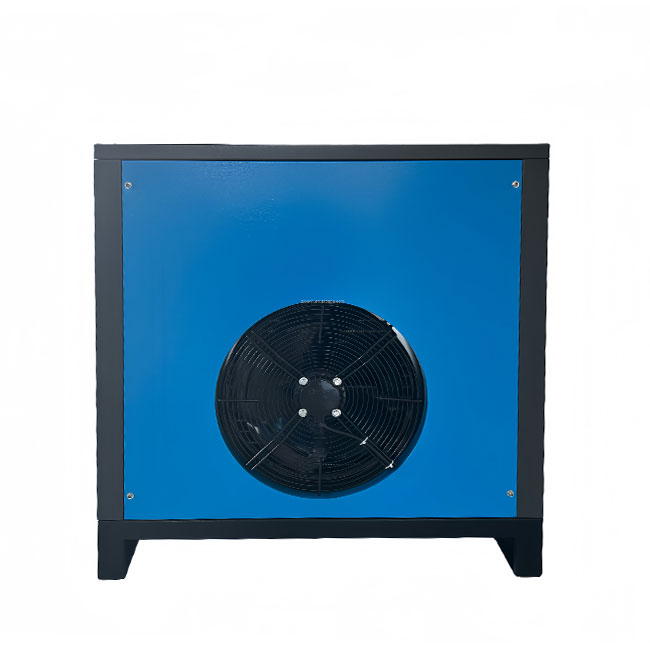

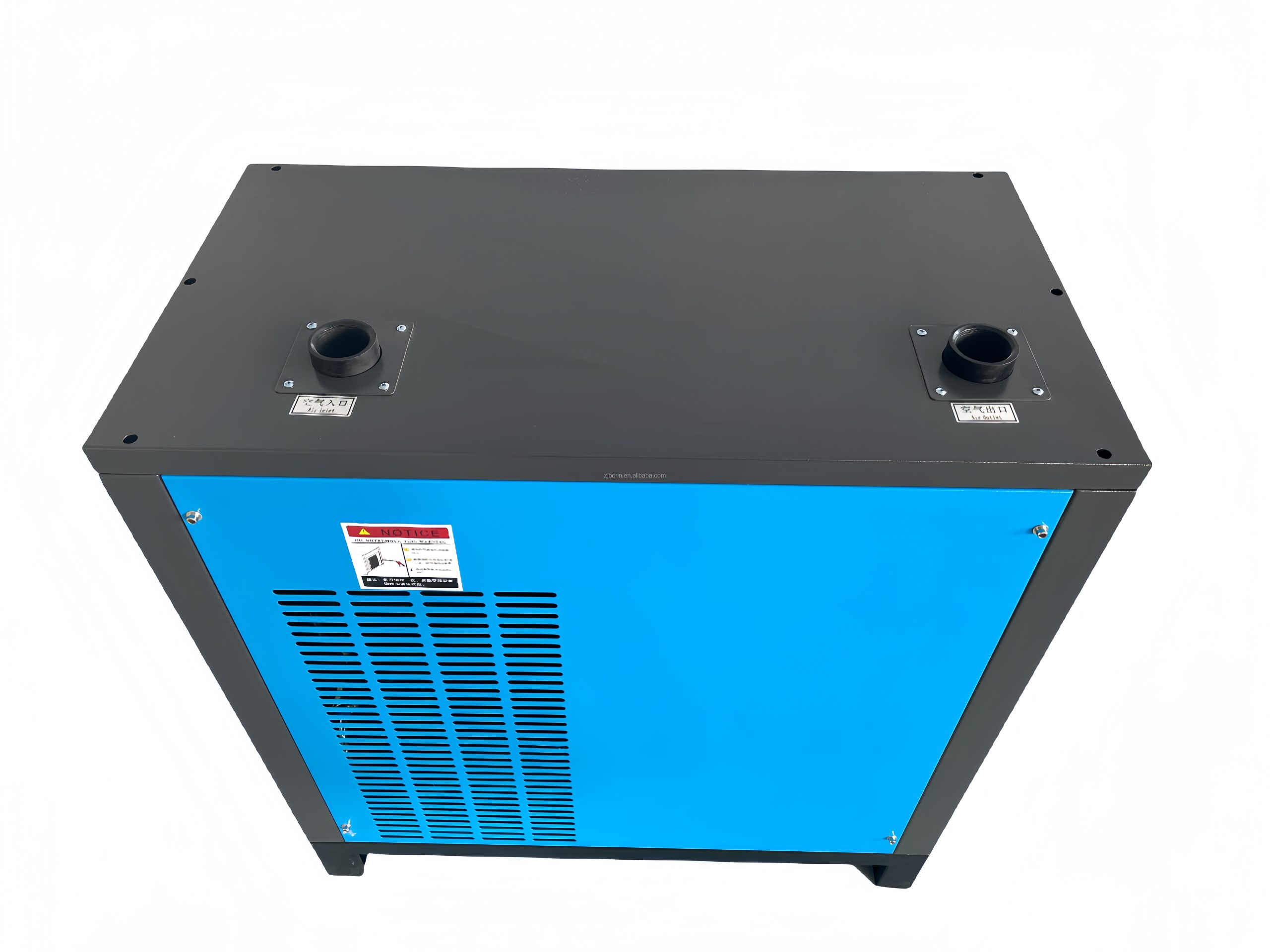

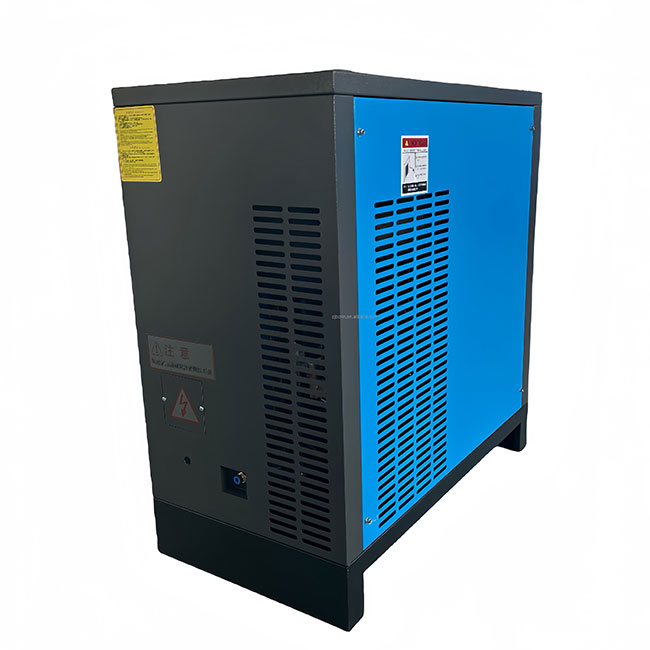

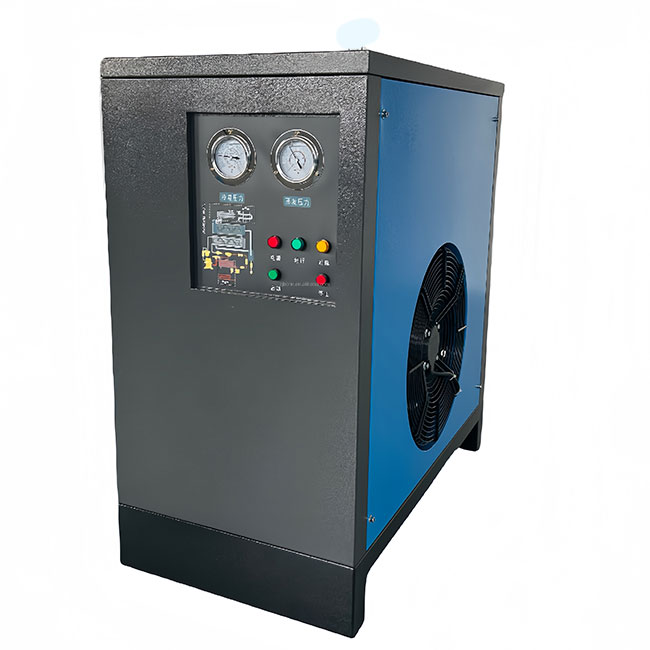

High-Temperature 3.8 m³ Refrigerated Compressed Air Dryer
In industrial production, the quality of compressed air directly affects production efficiency, product quality, and the lifespan of equipment. As a professional manufacturer of compressed air dryers and provider of air post-treatment solutions, we present you with an efficient and reliable high-temperature 3.8 m³ refrigerated compressed air dryer to meet your demand for high-quality compressed air in various complex working conditions.
Working Principle
The amount of water vapor in the compressed air is determined by the temperature of the compressed air, in the case of keeping the pressure of the compressed air basically unchanged, reducing the temperature of the compressed air can reduce the water vapor content in the compressed air, and the excess water vapor will condense into a liquid.
Refrigerated dryer is based on the corresponding relationship between the saturated vapor pressure of water and the temperature, the use of refrigeration device to cool the compressed air to a certain departure point temperature, precipitate the contained water, and discharge the water through the steam separator and the automatic drainer, so that the compressed air can be dried.
Product Specifications
| Model | BRC038F | Power | 0.85kw |
| Voltage | 220V | Refrigerant | R134A/R407C/R410A |
| Capacity | 3.8Nm3/min | Size | 800*440 * 820mm |
| Dew point | 2-10 ℃ | Weight | 94 |
| Working pressure | 0.6Mpa ~ 1.0Mpa | Warranty | 1 Year |
Product Feature

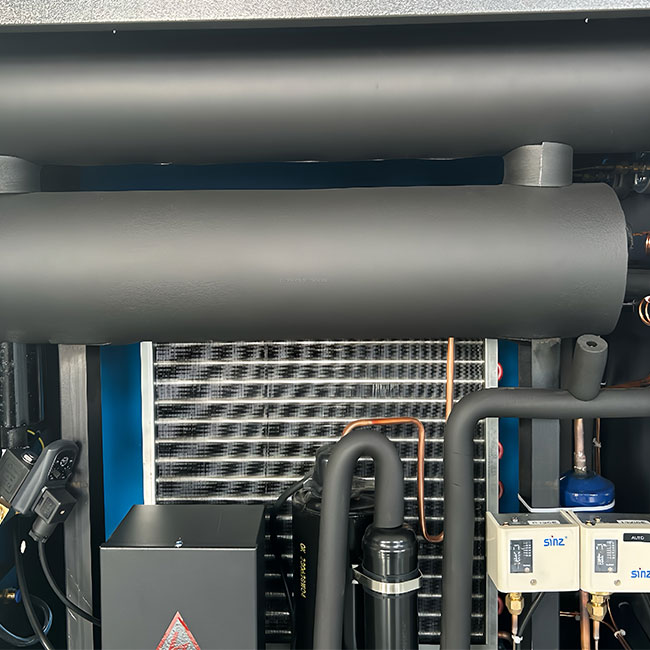

Efficient water removal capability
This refrigerated compressed air dryer employs advanced refrigeration technology to rapidly lower the temperature of the compressed air, causing the water vapor within to condense into liquid form and be efficiently separated and discharged. Its uniquely designed heat exchanger increases the utilization rate of the cooling capacity.
Through this highly efficient operation method, it can reduce the moisture content in the compressed air to an extremely low level, ensuring that the pressure dew point of the output compressed air remains stable at 2 – 10℃, meeting the strict requirements for compressed air quality in various industrial applications.

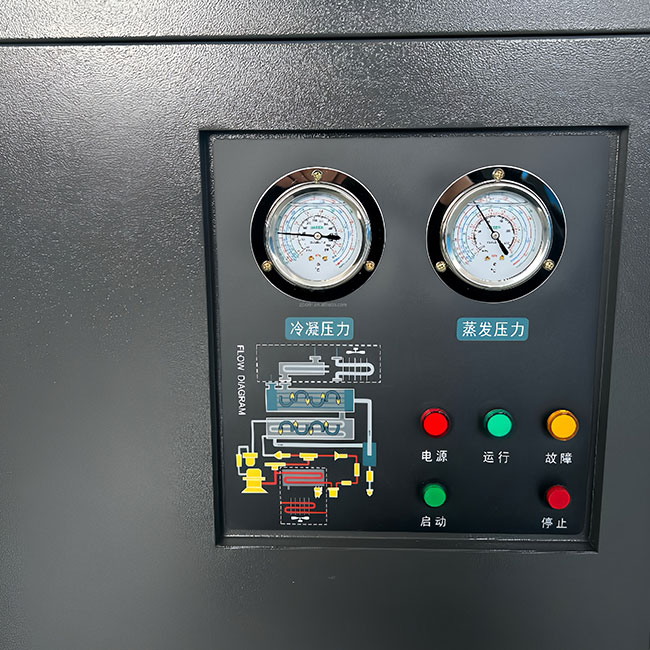

Adapt to operating in high-temperature environments
For high-temperature conditions, our high-temperature 3.8 m³ refrigerated compressed air dryer has been specially optimized. It can operate stably under harsh inlet temperature conditions, and this feature makes it particularly suitable for production processes that generate high-temperature compressed air, such as air compression applications in certain high-temperature processes.
The key components of the equipment, such as the condenser, are made of special materials and have a specific design. This ensures that the equipment can still efficiently dissipate heat in high-temperature environments, maintain the stable operation of the refrigeration system, and guarantee that the dryer can continuously output high-quality dry compressed air.
Reliable gas-liquid separation system
To ensure that the moisture in the compressed air is completely separated during the drying process, we have equipped a filter-type gas-liquid separator, with American Hankson filter elements installed inside. The gas-liquid separation effect of this separator is extremely thorough. Compared with the cyclone separator, it can more effectively prevent the secondary evaporation of moisture, thereby effectively guaranteeing the drying effect of the refrigerated dryer, providing pure and dry compressed air for downstream equipment, and reducing equipment failures and quality problems caused by moisture residue.
Our Advantages
Strong technical R&D capabilities
Our company has a highly qualified R&D team composed of senior engineers and technical specialists. The team members have extensive industry experience and professional knowledge, and they conduct in-depth research on post-treatment technologies for compressed air. They are capable of continuously innovating and upgrading products based on market demands and customer feedback.
Over the years, we have actively carried out R&D of new products, achieving multiple technological breakthroughs and obtaining a number of patent achievements, ensuring that our products always remain at the forefront of the industry. For instance, our innovative technologies in heat exchanger design and refrigeration system optimization have provided solid technical support for the outstanding performance of the high-temperature 3.8 m³ refrigerated compressed air dryer.

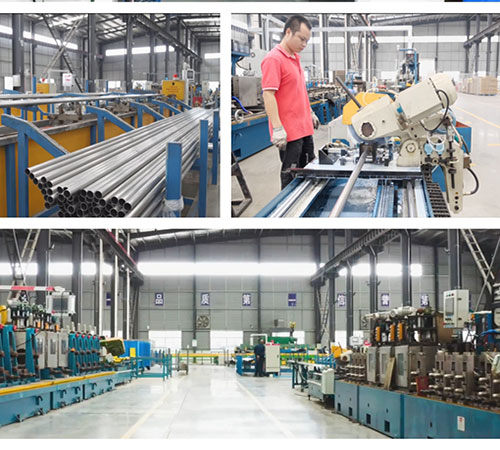

Strict production manufacturing standards
In the production process, we strictly adhere to international quality management system standards such as ISO9001 and ISO14001. From materials to product assembly, every production step is meticulously controlled and carefully inspected to ensure that every dry machine produced has stable and reliable performance as well as excellent quality.
Our production workshop is equipped with modern technological equipment and advanced manufacturing processes. It has professional production lines and on-line inspection devices, achieving automation, precision and standardization in the production process, providing a strong guarantee for delivering high-quality products to customers.
Rich experience in industry applications
For a long time, we have been dedicated to providing post-treatment solutions for compressed air in various industries, and have accumulated rich experience in industry applications. Whether in heavy industries such as oil and gas, chemical processing, or in light industries such as pharmaceuticals and electronics where the quality of compressed air is extremely demanding, we can tailor the most suitable products and solutions for our customers based on the characteristics and needs of different industries.
Our products and services have been widely adopted by numerous enterprises both at home and abroad, and have received high recognition and praise from customers. This not only demonstrates the reliability and adaptability of our products, but also lays a solid foundation for us to serve more industry customers in the future.
Our high-temperature 3.8 m³ refrigerated compressed air dryer boasts outstanding product performance. Our strong technical and manufacturing capabilities, as well as our comprehensive service system, can provide you with reliable post-treatment solutions for compressed air in your industrial production. Choosing us means choosing high-quality products, professional technical support, and considerate service guarantees, making your production process more efficient, stable, and reliable.
