1.6 Nm3/min Heated Desiccant Air Dryers
Do you desire stable and dry air with a pressure dew point as low as -40℃? Are you eager to have energy-saving equipment with a 40% reduction in energy consumption? Do you expect to enjoy a personalized service with 7×24-hour rapid response?
1.6 Nm3/min heated desiccant air dryer, with innovative technology and excellent service as the core, relying on the factory’s top R&D team, intelligent production system and strict quality control, will provide you with a satisfactory air post-processing solution.

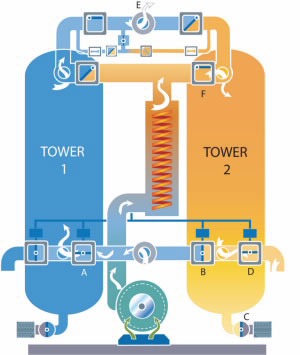

Operation Principle Of The Heated Desiccant Air Dryer
Microthermal regeneration drier utilizes the unique microporous structure of desiccant itself to adsorb moisture in air according to capillary effect. The equipment adopts unloading pressure desorption, desiccant residual heat heating desorption.
The equipment design adopts double-cylinder structure. Under the control of the program controller, one cylinder adsorbs the water at the same time, and the other cylinder desorbs it, and two cylinders circulate continuously in an alternating cycle, and the moisture in compressed air is eliminated by the equipment itself.
The water in compressed air is removed by the muffler carried by the equipment itself. The water in the compressed air is removed by the muffler of the equipment itself.
1.6 Nm3/min Heated Desiccant Air Dryer Parameter
| Model | BRVD001 | Capacity | 1.6 Nm3/min |
| Voltage | 220V | Power | 1kw |
| Inlet/Outlet Connection | G1 | Weight | 196.5kg |
| Dimensions | 850*450*1650mm | Intake temperatures | <50℃ |
| Working pressure | 0.6-1.0Mpa | Pressure dew point | ≤-20℃ |
| Power(w) | 1000 | Voltage | 220V |
| Place of origin | Zhejiang, China | Warranty | 1 Year |
Product Specificities
-Selected high dilution of activated alumina, molecular sieve so that the equipment output air dew point is low, producing less dust, long service life.
-Adopt famous brand switching valve, stable performance to ensure the integrity of the workflow and then adjustable air consumption, high efficiency and energy saving.
-Adopting special airflow diffusion device, reduce the pressure loss of compressed air, heater design is reasonable, dehumidification, regeneration effect is good, air consumption is small, high heating efficiency, minimize energy consumption.
-The whole machine adopts programmable microcomputer controller, the adsorption and regeneration working time can be adjusted to the dew point temperature requirements.
Product Advantages
High efficiency and energy saving
The design with a processing flow rate of 1.6Nm³/min heated desiccant air dryer enables it to meet the demand for compressed air drying in small and medium-sized industrial production. The application of micro-thermal regeneration technology significantly reduces energy consumption during the regeneration process, lowers the operating costs of enterprises.
Stable and reliable drying effect
This air drier uses high-quality adsorbents and advanced control systems to ensure that the dew point of compressed air remains at a low level. Typically reaching -40℃ or even lower. The stable drying effect can effectively prevent moisture in compressed air from condensing in pipelines and equipment, thereby avoiding pipeline corrosion, equipment damage, and quality issues.
Coarse barrel design
The coarse barrel structure provides a wider “playground” for the adsorbent. Increasing the contact area between the adsorbent and compressed air, and improving the adsorption efficiency. In addition, the coarse barrel has high strength and can withstand large pressure and temperature changes. Ensuring the stable operation of the equipment and a longer service life.
Why Choose Us

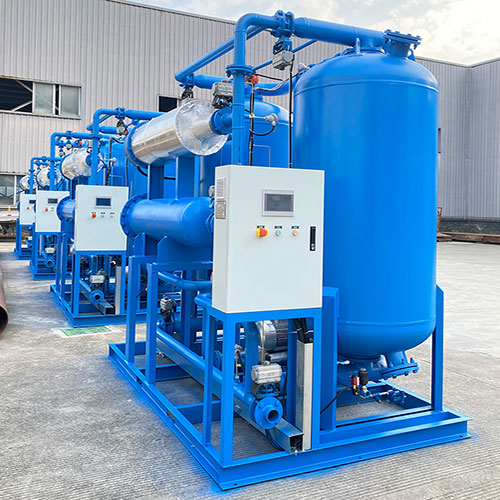

Customized Service Capability
Borin is well aware that the production requirements and operating conditions of different customers vary greatly. Therefore, we provide customized services.
We can design and manufacture air compression dryers that meet the individual needs of customers based on their actual requirements. (such as processing flow, dew point requirements, installation space, etc.)
For customers with limited space, the structure design of the air dryer can be optimized to make it more compact. For those with extremely high dew point requirements, more efficient adsorbents and regeneration technologies can be adopted to ensure that the drying degree of the compressed air dryer meets the requirements.

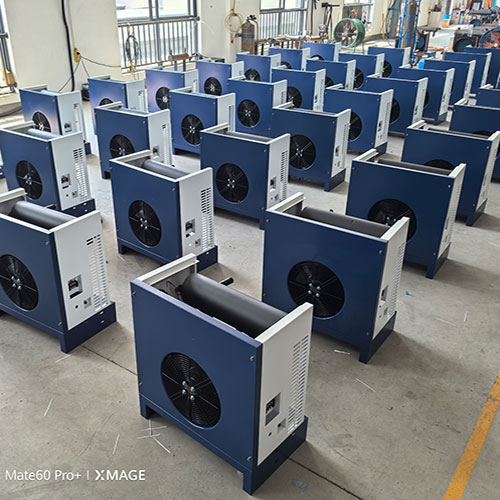

One-stop procurement
Borin has been deeply engaged in the field of air post-treatment equipment for many years. With its profound technical accumulation and rich industry experience. We not only can provide customers with high-performance core equipment of different models of compressed air dryers, but also supply various related accessories such as condensers and expansion valves in a one-stop service.
The one-stop purchasing model enables customers to avoid multiple trips and saves time and energy. The rich inventory of accessories ensures a timely supply and meets urgent needs. Strict quality control and complete after-sales guarantee ensure that the accessories and equipment are perfectly matched and operate stably. Truly creating a worry-free, efficient and convenient purchasing experience for customers.

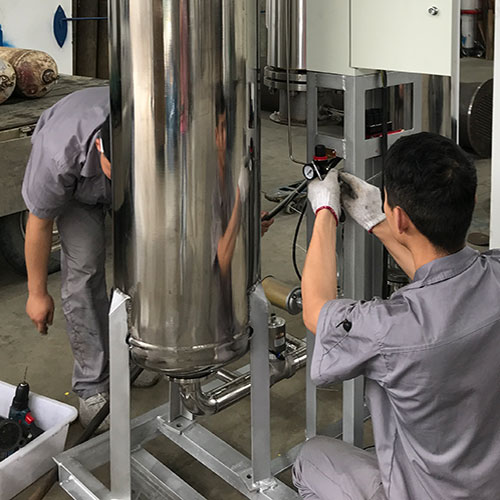

Comprehensive after-sales service network
Borin has established a comprehensive after-sales service network and has a professional after-sales service team. In case of any equipment issues, customers can contact the after-sales or technical service personnel promptly. We will respond to customers’ needs at the earliest possible time and provide them with technical support and solutions. If necessary, Borin offers a free accessory replacement service.
The 1.6Nm³/min heated desiccant air dryer demonstrates our factory’s strong advantages in R&D, production, and quality control, with its outstanding performance and reliable quality. Choosing us means choosing an efficient, energy-saving, and stable compressed air dryer solution. Contact us immediately to obtain your customized compressed air dryer solution.(CONTACT US NOW)
