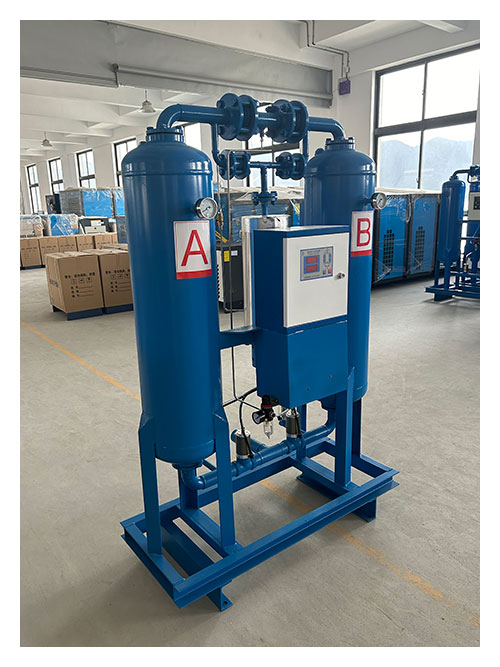

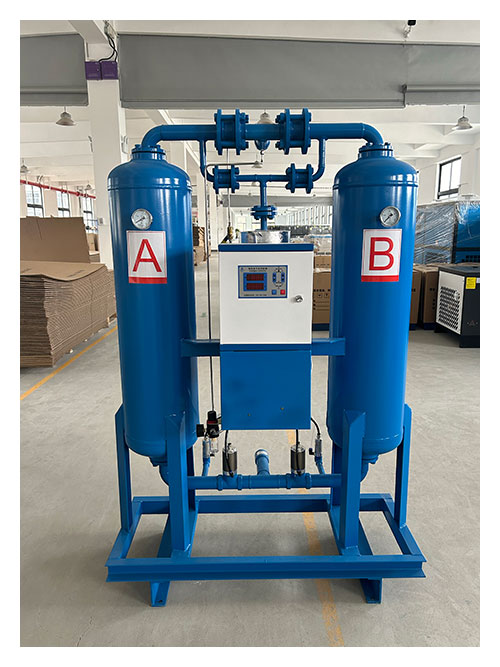

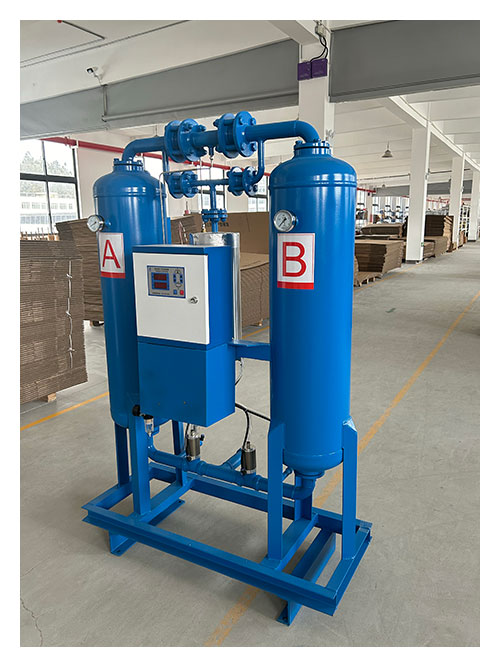

3.8m³ Heated Desiccant Air Dryer
Borin is a manufacturer of compressed air dryers with 22 years of industry experience, and also a provider of air post-treatment solutions. Currently, we have provided professional equipment and services to over 5,000 enterprises in various industries worldwide, and have received wide recognition from domestic and international customers.
Relying on profound technical accumulation, quality that meets international standards, and strong comprehensive capabilities, we have meticulously developed a 3.8m³ heated desiccant air dryer. This equipment not only possesses unique product features, but also can provide strong support for the compressed air drying needs of various industries through comprehensive services and customization capabilities.
Principle of operation
Microthermal regeneration drier utilizes the unique microporous structure of desiccant itself to adsorb moisture in air according to capillary effect. Adopts unloading pressure desorption, desiccant residual heat heating desorption.

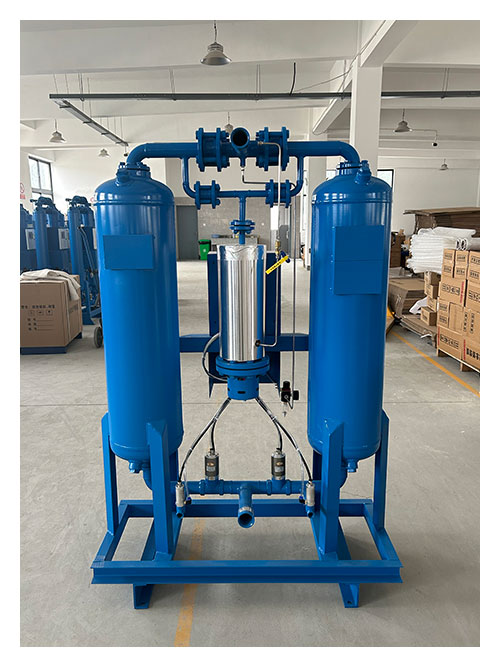

The equipment design adopts double-cylinder structure, under the control of the program controller, one cylinder adsorbs the water at the same time, and the other cylinder desorbs it, and two cylinders circulate continuously in an alternating cycle, and the moisture in compressed air is eliminated by the equipment itself. The water in compressed air is removed by the muffler carried by the equipment itself. The water in the compressed air is removed by the muffler of the equipment itself.
Product specifications
| Model | BRVD003 | Capacity | 3.8 Nm3/min |
| Voltage | 220V | Power | 1.5kw |
| Inlet/Outlet Connection | G1.5 | Weight | 245kg |
| Dimensions | 1050*480*1700mm | Intake temperatures | <50℃ |
| Working pressure | 0.6-1.0Mpa | Pressure dew point | ≤-40℃ |
Product advantage
Selected high dilution of activated alumina, molecular sieve so that the equipment output air dew point is low, producing less dust, long service life.
Adopt famous brand switching valve, stable performance to ensure the integrity of the workflow and then adjustable air consumption, high efficiency and energy saving.
Adopting special airflow diffusion device, reduce the pressure loss of compressed air, heater design is reasonable, dehumidification, regeneration effect is good, air consumption is small.

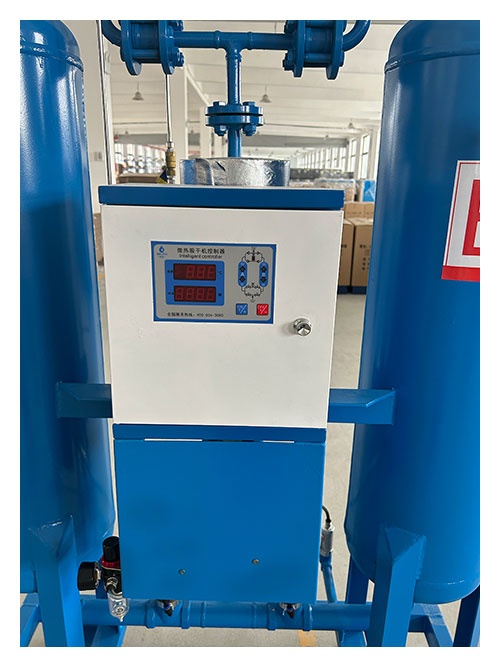

The whole machine adopts programmable microcomputer controller, the adsorption and regeneration working time can be adjusted to the dew point temperature requirements.
Product recommendation
Our service
Consultation service
Our professional team not only understands the basic operating conditions of the customers, but also takes into account factors such as the industry standards of the customer’s country, environmental protection requirements, production plans, and future capacity expansion needs. We will provide customers with more forward-looking selection suggestions.
At the same time, we will also provide customers with detailed analysis of the equipment’s operating costs(including energy consumption and maintenance expenses), so that customers can have a clear understanding of the total life cycle cost of the equipment.
Technical Support Service
We have a seasoned technical team that can provide comprehensive technical support to our clients. During the operation of the equipment, if the clients encounter technical problems, they can contact us at any time through phone calls, emails, video conferences or online communication methods. Multilingual technical staff will offer professional solutions.
For complex technical issues, we will provide remote guidance via video. In case it is necessary, we will arrange for technicians to go to the site (this will be determined based on the actual situation and negotiated accordingly) to assist the customers in troubleshooting and solving problems.
Product customization service
Based on our strong R&D capabilities and production capacity, we can offer diversified product customization services to meet the special needs of our customers. The customization scope covers multiple aspects (include equipment performance, structure, and functionality).
For example: In terms of performance customization, for specific intake temperatures, customized models that are resistant to high or low temperatures can be provided, ensuring normal operation in extreme temperature ranges of -10℃ to 60℃.
Accessory supply service
The variety of accessories is extremely rich. It not only includes the core components of the 3.8m³ heated desiccant air dryer, such as adsorbent, heating tube, solenoid valve, control panel, etc. But also covers various wear parts, such as sealing rings, filter elements, pressure gauges, etc., which can meet all the needs of customers for daily maintenance and emergency replacement of components.
Available component procurement: •Condenser • drain valve •fan •refrigeration compressor • pressure switch •drying filter •evaporator •condenser • expansion valve.etc.
3.8m³ heated desiccant air dryer boasts outstanding performance. Our extensive industry experience, strong customization capabilities and professional services have made us a reliable partner for enterprises in compressed air drying and treatment.
If you have more detailed requirements regarding the specific content of technical support services or other aspects, please feel free to contact us at any time.
