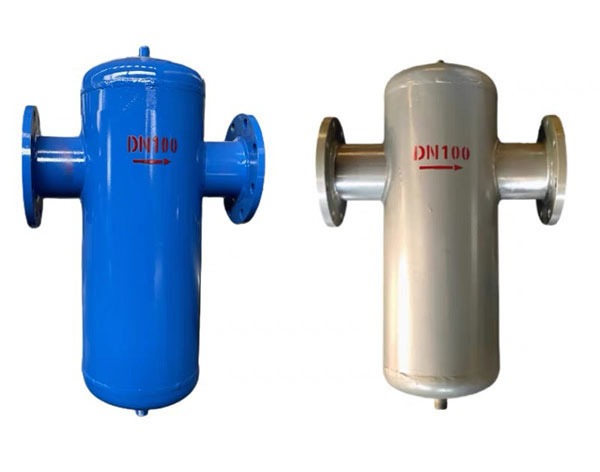

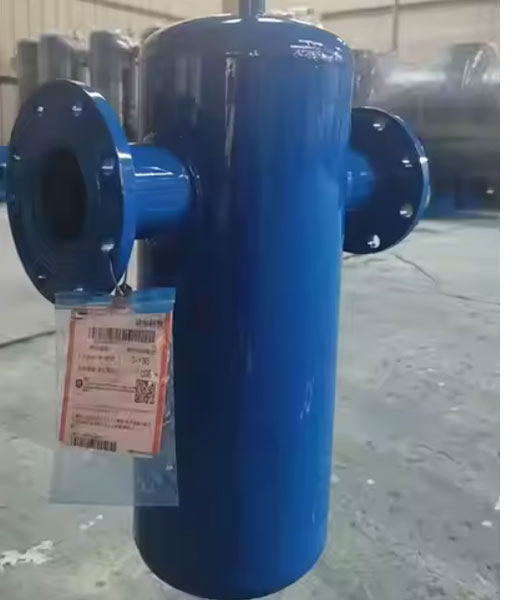

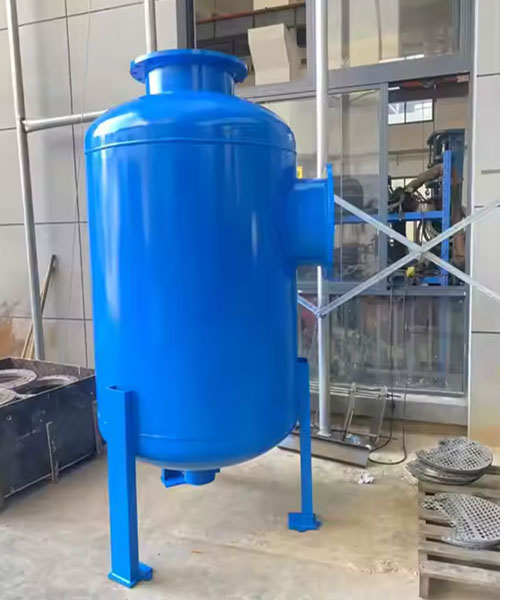

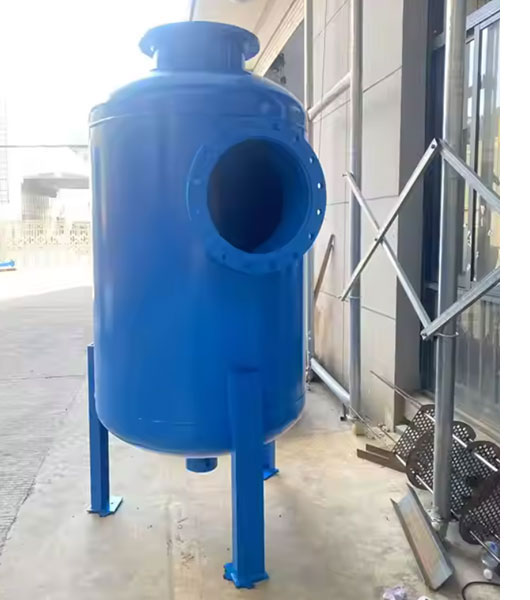

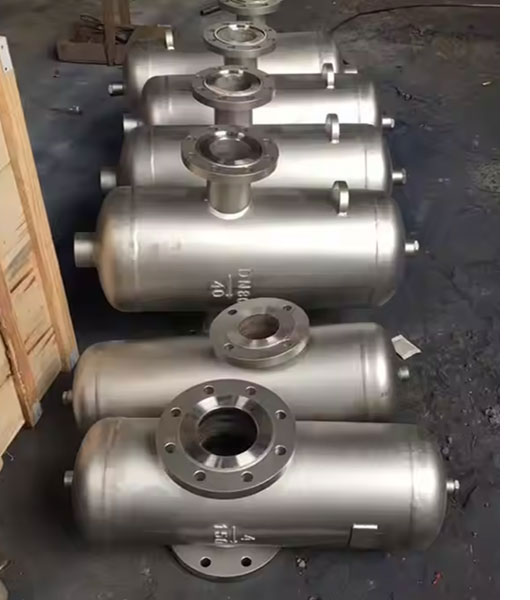

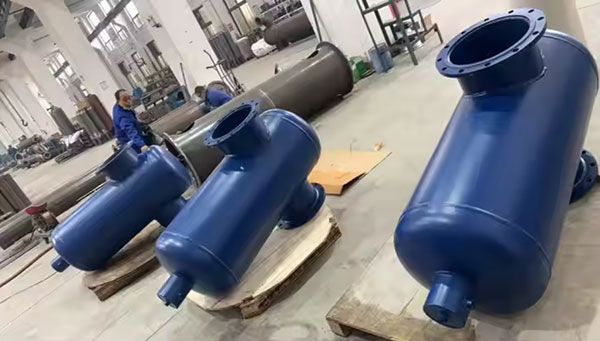

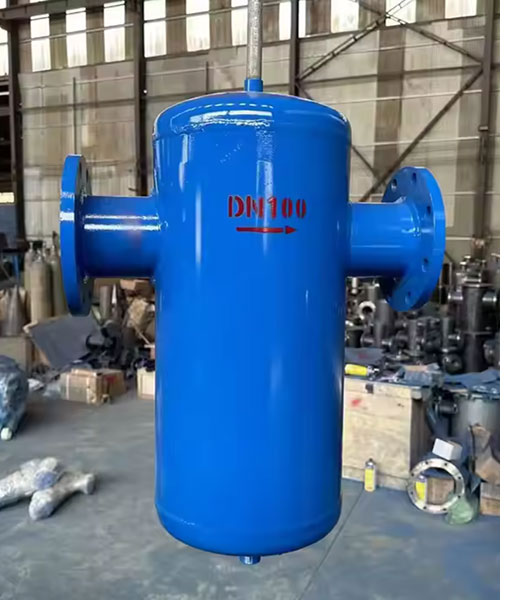

Flange Water Separator
The flange water separator is a device mainly used in industrial liquid-containing systems to separate gas and liquid, improving the drying degree of steam and reducing the phenomenon of steam carrying water. Commonly used types of gas-water separators include tubular separators, baffle-type separators, and cyclone separators, etc.
Installing flange water separator before compressed air filter and drying equipment can remove 99 % of liquid water,making down stream purification more efficient. The unique two-stage cyclone separation design makes it more effective than traditional type of water separator.The air and water separator can be installed in various position such as after the air compressor, after the rear cooler or after the air receiver tank.
Product Specifications
| Type | Separator | Material | Carbon Steel |
| Filter type | Flange | Usage | Filter Air/Water |
| Product characteristics | Gas Purification | Color | Customized |
| Pressure | 2.5Mpa | Size | DN 100 |
| Warranty | 1 Year | Place of origin | Zhejiang, China |

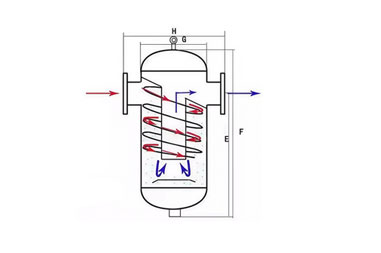

Flange Water Separator Operating Principle
The compressed air water separator applies a centrifugal motion effect to force the liquid water to separate from the compressed air, the rotation causes the condensate to adhere to the inner wall of the water separator, when the condensate is heavy enough it falls to the bottom of the water separator and is stored until it is discharged from the system by an automatic drain valve.
Flange Water Separator Features
Metal shell, good pressure resistance. The shell is made of high-strength aluminum alloy metal, corrosion-resistant, with good pressure resistance and heat resistance, making it safe to use.
Eliminate 99% of liquid water. Large aperture design, stable pressure.Large aperture design, small changes in air pressure, purification and filtration have little effect on the original pressure.
After the gas source is filtered, it can greatly reduce the failure rate of the equipment, prolong the service life of the equipment. And improve the quality of the products produced.
Flange Water Separator Advantages
Some potential benefits of using a compressed air water separator include:
1.Protecting downstream equipment from damage caused by moisture and impurities
2. Improving the performance and efficiency of pneumatic equipment
3. Reducing maintenance and repair costs
4. Extending the lifespan of pneumatic equipment
Our Advantages

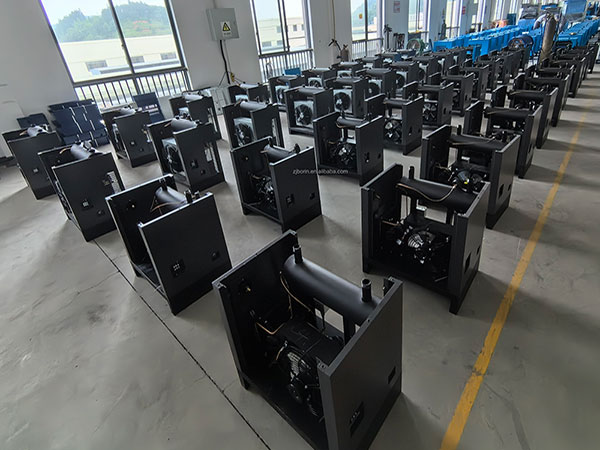

Professional manufacturer of compression air purification equipment
Borin is a specialized high-tech enterprise integrating research, manufacturing and trade. We has obtained ISO9001 quality management system certification and EU CE certification. Over the years, Borin has actively participated in and promoted the development of the air drying technology industry. We specializes in manufacturing compressed air purification equipment, air dehumidification and cooling equipment.
The main products of Borin include: ▪ refrigeration air dryers ▪ adsorption air dryers ▪ compressed air storage tanks ▪ compressed air precision filters ▪ combined low dew-point dryers ▪ compressed air pre-cooling machines ▪ rear coolers ▪ non-standard fluid heat exchangers ▪ chillers ▪ dehumidifiers ▪ humidifiers, rotary dehumidifiers various non-standard drying room products.
Abundant supply of accessories
We are well aware of the complexity and difficulties that customers encounter during the procurement of air compressor equipment and accessories. Leveraging our strong supply chain advantages, we can provide customers with a one-stop procurement service for accessories, helping them eliminate intermediate links and reduce overall costs.
In addition to the flange water separators, we also offer a full range of accessories such as fans, condensers, and safety valves. All the accessories strictly follow industry standards to ensure the stability and reliability of the equipment operation. At the same time, we support the rapid customization of accessories to meet the special needs of customers.
If you are interested in our flange water separators, please don’t hesitate to contact us.(CONTACT US NOW)
