Compressed air filters
In the compressed air system, the filter is the core barrier to ensure air quality, directly determining the stability of production equipment and product quality. Whether it is food packaging, precision electronics manufacturing, or high-cleanliness industries such as pharmaceuticals and automotive painting, solid particles, oil stains, rust and hydrocarbons in compressed air can all become fatal hazards.
As a provider of comprehensive solutions for compressed air systems, our company has launched high-performance compressed air filters. Centered on original imported filter elements, multi-layer filtration technology, and flexible customized services, combined with one-stop accessory supply and technical support, we offer customers clean air solutions from the source to the terminal
Compressed Air Filters Specification
| Model | C-001 | T-001 | A-001 | AA-001 | H-001 |
| Airdelivery | 1.2Nm/min | 1.2Nm²/min | 1.2Nm²/min | 1.2Nm²/min | 1.2Nm²/min |
| Dustremoval | ≤3um | ≤lm | ≤0.0lum | ≤0.0lum | ≤0.0lum |
| Oilcontent | ≤5ppm | ≤lppm | ≤0.0lppm | ≤0.00lppm | ≤0.003ppm |
| Pressure | ≤1. OMPa | ≤1. OMPa | ≤1. OMPa | ≤1. OMPa | ≤1. OMPa |
| Inlet temp | ≤66℃ | ≤66℃ | ≤66℃ | ≤66℃ | ≤66℃ |
| Service life | 8000h | 8000h | 8000h | 8000h | 8000h |
| Quantities | 1 | 1 | 1 | 1 | 1 |
| Treatment medium | Rectangular fiber | Rectangular fiber | Rectangular fiber | Rectangular fiber | Rectangular fiber |
| Separation principle | Double-deckfiltration | Double-deckfiltration | Double-deckfiltration | Double-deckfiltration | Double-deckfiltration |
| Pressure loss | ≤0.007MPa | ≤0.007MPa | ≤0.007MPa | ≤0.007MPa | ≤0.007MPa |
| Weight | IKG | IKG | IKG | IKG | IKG |
Compressed Air Filters Features
1..Fully intercept pollutants and safeguard the purity of the gas source
The compressed air filter is the core device to ensure the quality of compressed air and can efficiently intercept various pollutants. From micron-sized solid particles, dust, rust to compressor oil contaminants, hydrocarbons, etc., the filter, with its scientific filtration structure, achieves deep purification of the air source.

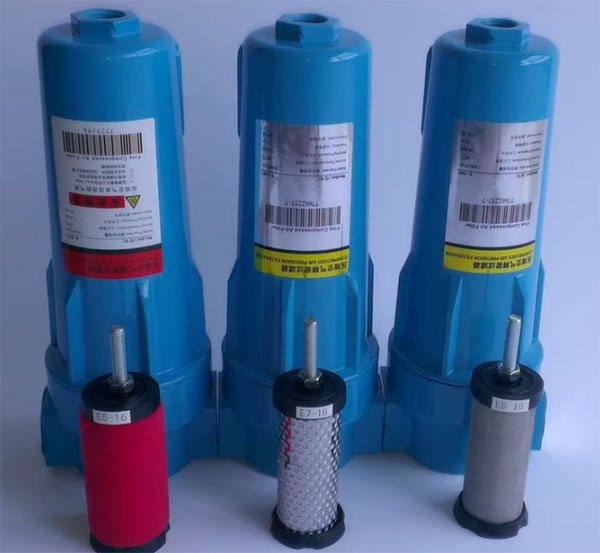

2.Imported Hankson filter elements, interpreting high-end quality
Our compressed air filters are equipped with original imported Hankson filter elements, whose filtration accuracy reaches the industry-leading level and can precisely capture extremely fine particulate impurities. Meanwhile, Hankson filter elements feature outstanding durability. Compared with ordinary filter elements, their service life is extended by 50%. This not only reduces the human and material costs caused by frequent filter element replacement but also ensures the long-term stability of the filtration effect, providing enterprises with a reliable and long-lasting air source guarantee
3.Multi-layer composite filtration creates a high-quality air source free of oil and impurities
To meet the strict requirements of different industries for compressed air quality, Borin compressed air filters use a variety of high-quality materials to build a multi-layer filtration system. The primary filter layer quickly intercepts large particle impurities, the medium-efficiency filter layer further filters out fine suspended particles, and the high-efficiency filter layer focuses on capturing tiny pollutants such as oil mist and hydrocarbons. This process progresses layer by layer, achieving seamless purification of the compressed air without any blind spots, and ultimately outproducing high-quality compressed air free of oil and impurities
4.With anti-corrosion coating, it ensures long-term stable operation.
The filter housing is treated with a special anti-corrosion coating, which not only endows the surface with high-quality smoothness but also provides excellent anti-corrosion performance. In damp and highly corrosive industrial environments, this coating can effectively resist acid and alkali erosion and oxidation, ensuring that the filter housing maintains good performance for a long time, is not prone to deformation or rusting, reduces the risk of failure caused by equipment corrosion, provides a solid guarantee for the stable operation of the filter, and lowers the equipment maintenance costs of enterprises.
5.Flexible assembly solution, meeting diverse demands
We are well aware that different enterprises have varying requirements for the quality grade of compressed air. Borin compressed air filters support flexible assembly. According to the actual needs of customers, the filtration level, filter element type and other configurations can be adjusted to precisely match the requirements of the production scene for the air source. We can customize exclusive filtration solutions for customers to ensure that every unit of compressed air meets production standards
Our Advantages
Supply of full-category accessories
We simultaneously supply a full set of post-treatment equipment including: ▪refrigerated air dryers ▪adsorption air dryers ▪compressed air storage tanks ▪compressed air precision filters ▪combined low dew point air dryers ▪ compressed air pre-coolers ▪ after-coolers ▪ non-standard fluid heat exchangers ▪water chillers ▪ dehumidifiers ▪ humidifiers ▪ rotor dehumidifiers , and various non-standard drying room products, simplifying the procurement process.
The inventory of original factory filter elements, seals, drain valves and other consumables is sufficient to ensure prompt delivery
Professional technical support
▪Free compressed air quality inspection and system solution design.
▪Free provision of filter elements and other components and other value-added services.
▪After becoming our partner, we will provide 7× 24-hour technical service support
Choosing Borin’s compressed air filters means choosing a stable air source guarantee, ultimate cost optimization, and a worry-free service experience. Contact us immediately to get free working condition detection and customized solutions.
