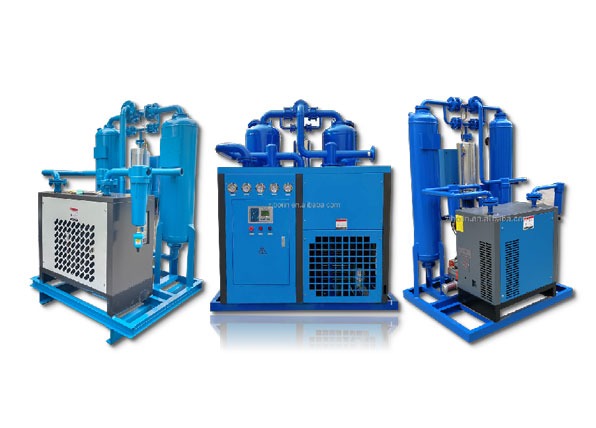

25m³ Combination Air Dryer
Borin 25m³ combination air dryer has been meticulously designed to meet the drying requirements of various industries, featuring outstanding drying capabilities. It adopts an advanced combined design, ingeniously integrating the advantages of adsorption drying and freeze drying.
Whether it is for electronic components with extremely high drying standards or chemical raw materials with strict drying speed requirements, this combination air dryer can easily handle them and provide stable and efficient drying
Product Parameters
| Type | Air Dryer | Material | Cast Steel |
| Intake scheduling | 20-45℃ | Intake pressure | 0.6-1.0MPa |
| Regenerative air consumption | 3%-5% | Pressure dew point | Normal form -20℃ ~ -70℃ |
| Capacity | 25Nm³/min | Equipment size | 1850*1500*2850mm |
| Equipment weight | 1950KG | Voltage | 220/50Hz |
| Air nozzle diameter | DN80 | Warranty | 1 Year |
product Feature
Superior adaptability to extreme working conditions
25m³ combination air dryer can easily handle extreme environments such as high temperatures, high humidity and high dust content. It can ensure the continuous output of stable dry compressed air under various harsh working conditions.
In oil and gas extraction projects in desert areas, even in the face of temperatures of 50℃ and severe sandstorms, the equipment’s built-in high-temperature-resistant sealing materials and efficient dust-filtering screens can ensure stable operation. In coastal environments with high humidity, its anti-corrosion coating and special material metal components can effectively resist salt fog erosion and prevent internal rusting of the equipment.
Low dew point
The dew point temperature is an important indicator for measuring the dryness of compressed air. A low dew point indicates that the moisture content in the compressed air is extremely low, effectively preventing various problems caused by moisture.
The 25m³ combination air dryer excels in low dew point performance, with its dew point temperature capable of being stabilized at -40℃, and can reach as low as -70℃ according to different user requirements. It provides high-quality dry compressed air for industrial production.
Convenient and efficient operation
All the operation switches and display instruments of the combination air dryer are concentrated on the panel of the box. The refrigerated dryer and the adsorption regeneration dryer can operate independently or simultaneously with suction and adsorption according to customer requirements.
Moreover, it can display the equipment’s operating parameters in real time, such as temperature, pressure, dew point, etc. This facilitates the operators’ promptly understanding of the equipment’s operating status, significantly improving the equipment’s operational convenience and management efficiency.
Product Recommendations
Our Ability

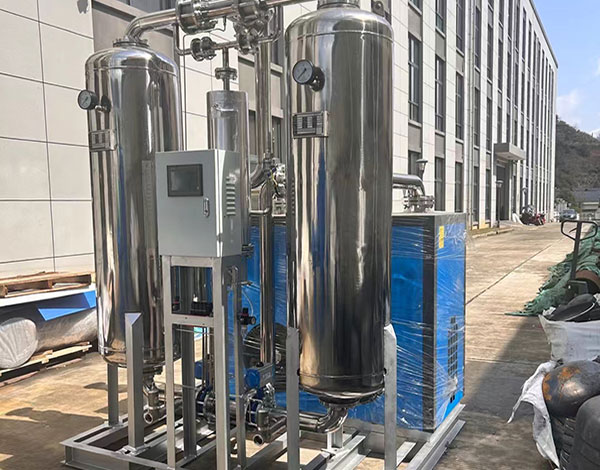

Product development capabilities
The 25m³ combination air dryer demonstrates our strong independent R&D capabilities. Borin has a professional R&D team with rich industry experience and profound technical expertise. They are constantly committed to the innovation and improvement of drying machine technology. With strong R&D capabilities and professional production manufacturing capabilities, we can customize various types of air dryers for you.
We are well aware that you have diverse and detailed requirements for air dryers in terms of performance, functions, and other aspects. Whether it’s the pursuit of ultimate drying efficiency; precise functional configuration; or being constrained by specific usage scenarios and space specifications. With our professional capabilities, we will provide you with suitable solutions for air post-processing equipment.
Batch production capability
In addition to our strong R&D and customization capabilities, we also have outstanding batch manufacturing capabilities. We possess advanced production equipment and a complete production management system, enabling us to achieve large-scale and efficient production of air dryers.
Our factory has introduced several high-precision CNC machining centers, automated welding equipment, and advanced testing instruments. These devices not only enhance production efficiency and product quality, but also ensure the consistency and stability of the products.
With our strong mass production capabilities, we can respond quickly to customer demands and achieve large-scale, efficient production. Whether it’s small orders or large projects, we can ensure the delivery of products on time, with quality and quantity guaranteed.
The 25m³combination air dryer, with a series of outstanding product advantages, has become the preferred equipment for many enterprises. Behind this is the strong manufacturing strength of our factory, which provides comprehensive support.
From research and innovation to production and manufacturing; from quality control to after-sales service, every aspect demonstrates professionalism and craftsmanship, jointly creating the extraordinary quality of the 25m³combination air dryer. Choosing Borin means choosing efficient, stable and intelligent production solutions. Contact us immediately to obtain a customized compressed air optimization plan.(CONTACT US NOW)
