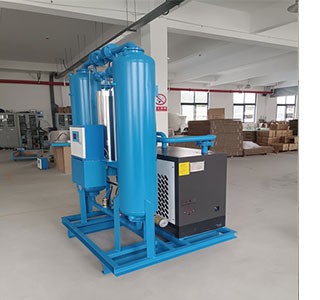

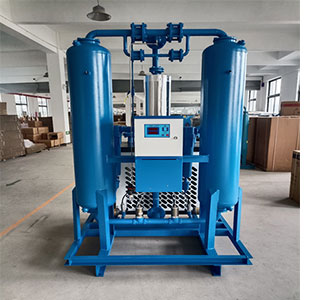

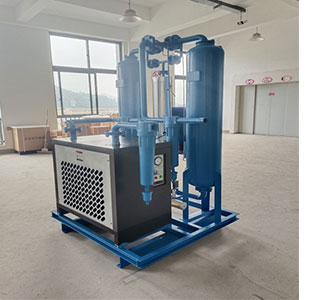

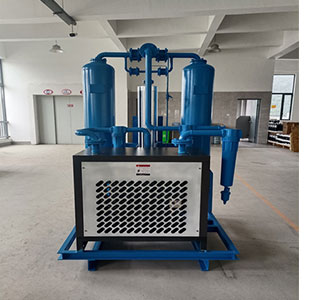

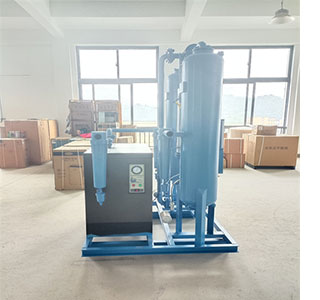

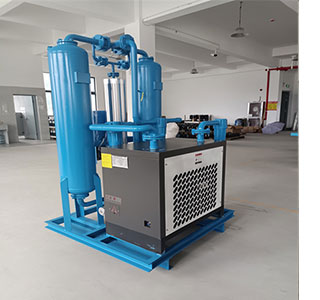

6.8m³ Combination Air Dryer
In industrial production, the quality of compressed air directly affects product quality, equipment lifespan and production efficiency. As a crucial part of air post-treatment equipment, the performance of the compressed air dryer is of vital importance. Borin 6.8m³ low dew point combined air dryer, with its advantages (such as low dew point, energy-saving and high efficiency, stability and reliability), has provided efficient and stable compressed air drying solutions for numerous enterprises.
Borin, as a professional manufacturer of air post-processing equipment, has profound technical expertise, rich industry experience, strong R&D capabilities and powerful manufacturing capacity. We can offer you air post-processing equipment and solutions that are in line with your requirements.
Product Specifications
| Type | Air Dryer | Material | Cast Steel |
| Intake scheduling | 20-45℃ | Intake pressure | 0.6-1.0MPa |
| Regenerative air consumption | 3%-5% | Pressure dew point | Normal form -40℃ |
| Capacity | 6.8Nm³/min | Equipment size | 1300*1200*1880mm |
| Equipment weight | 680KG | Voltage | 220/50Hz |
| Air nozzle diameter | RC1/2 | Warranty | 1 Year |
Working principle
6.8m³ low dew point combined air dryer ingeniously combines the advantages of both the refrigeration dryer and the adsorption dryer, breaking through the limitations of a single drying method.
The high-temperature and high-humidity compressed air from the compressor first enters the heat exchanger, where it exchanges heat with the already dried low-temperature compressed air, achieving an initial cooling effect.
Subsequently, the air enters the evaporator and is further cooled to around 2℃. During this process, a large amount of gaseous moisture condenses into liquid water and is discharged through an efficient gas-liquid separator.
After the initial drying process, the moisture content of the air significantly decreases. Then it enters the adsorption cylinder. The desiccant inside the cylinder performs a deep dehumidification process on the air, and finally, high-quality compressed air with an extremely low dew point is output.
While the partially heated and compressed air is then used for the regeneration of the adsorbent, effectively enhancing the regeneration efficiency and reducing energy consumption.
Product Advantages
Refrigeration system：
Adopt internationally famous refrigeration compressor and high performance refrigeration components and other parts, and the system design is perfect.
Adsorption system：
- The tower body is designed and manufactured in accordance with the pressure vessel specifica-tion.
- Selection of domestic famous desiccant, high compressive strength, wear resistance,high temperature resistance, no hydrolysis.
- Special design is adopted to enable continuous gas supply when the adsorption tower is switched.
- The slow and safe charging procedure and time-delay switchingdesign eliminates airflow pulsation, prevents the adsorbent from moving and mitigatedthe impact.
- Separate filling port and discharge port for easy replacement of adsorbent. Imported pneumatic butterfly valve is selected to ensure the stable operation of equipment.
Characteristics of control box：
It adopts ATMEL’s high-performance microprocessor chip design. The panel is provided with a clear process flow chart, which can directly display the running state of the equipment. LED display: including operation cycle state, valve switching state and timing selection state display. Highly integrated, high reliability, highcost performance.
Product Recommend
Borin Ability
Strong R&D and Manufacturing Capabilities
Borin has been dedicated to the research and manufacturing of air post-treatment equipment for 22 years. We possess advanced production equipment, a complete quality inspection system, and strict management procedures. From material procurement to component processing, to complete machine assembly and debugging, every step strictly follows international standards and industry norms, ensuring the reliability and consistency of product quality.
Meanwhile, we continually increase our investment in R&D. We actively introduce advanced technologies and concepts from both domestic and international sources, and continuously enhance the technical content and competitiveness of our products. Our professional team not only provides customers with high-quality compressed air drying equipment, but also offers professional technical consultation and solutions based on the specific working conditions and requirements of the customers, thereby creating greater value for them.

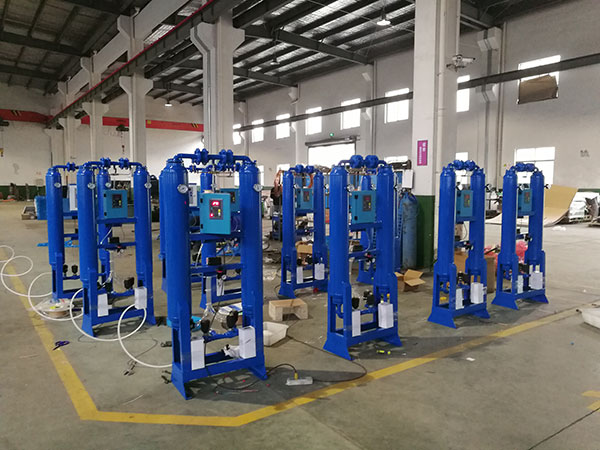

Professional customization
As a professional manufacturer of air post-treatment equipment, Borin has an experienced and highly skilled R&D team. We can provide personalized customized services according to the actual needs of our customers.
According to different industrial conditions, special models such as explosion-proof type, high-pressure type and mobile type can be customized. Parameters such as dew point, flow rate and pressure can be adjusted. Whether it is due to special work pressure, intake temperature requirements, or specific limitations on dew point accuracy and equipment size, we can achieve this through optimized design and precise manufacturing. We can tailor-make the most suitable low dew point combination air dryer and other compressed air dryers for our customers.
6.8m³ combination air dryer is the result of Borin’s technical expertise and innovative spirit. With outstanding product performance, professional customized services, and strong R&D and manufacturing capabilities, we provide customers with high-quality compressed air drying solutions.
If you are looking for a reliable and efficient compressed air drying equipment, Borin will be your ideal choice. Let’s work together to ensure the production safety of your enterprise and create a brighter future.
