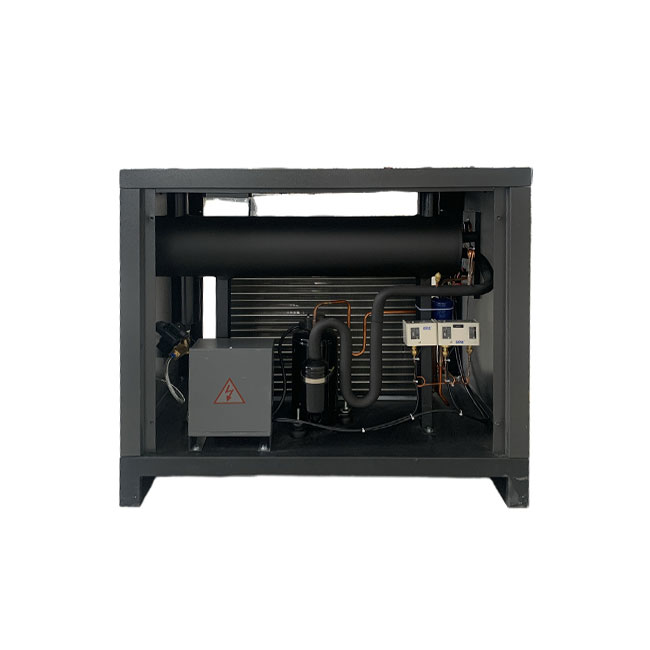

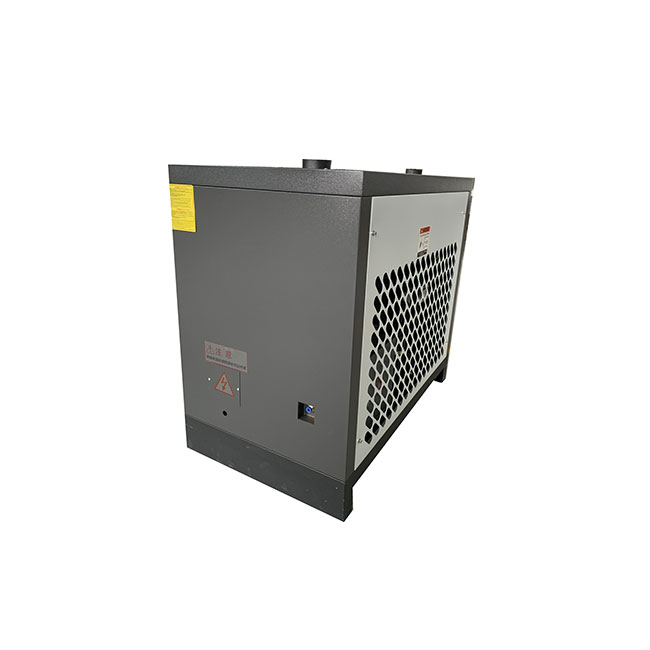

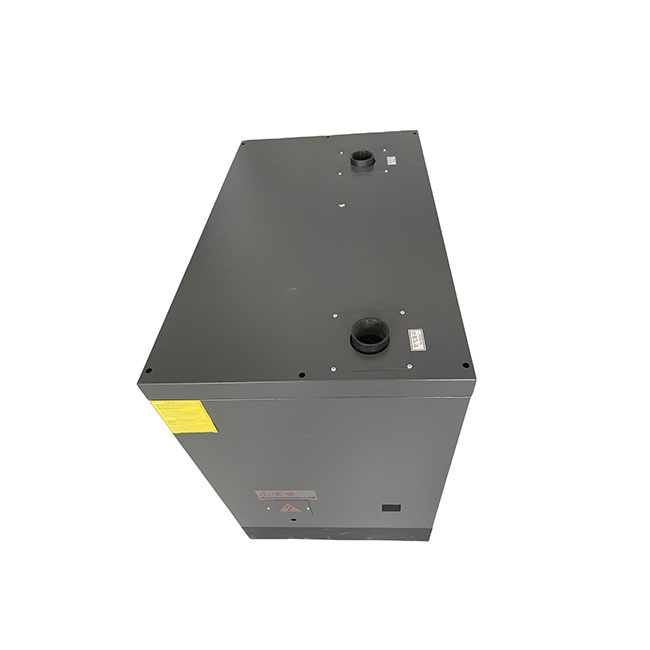

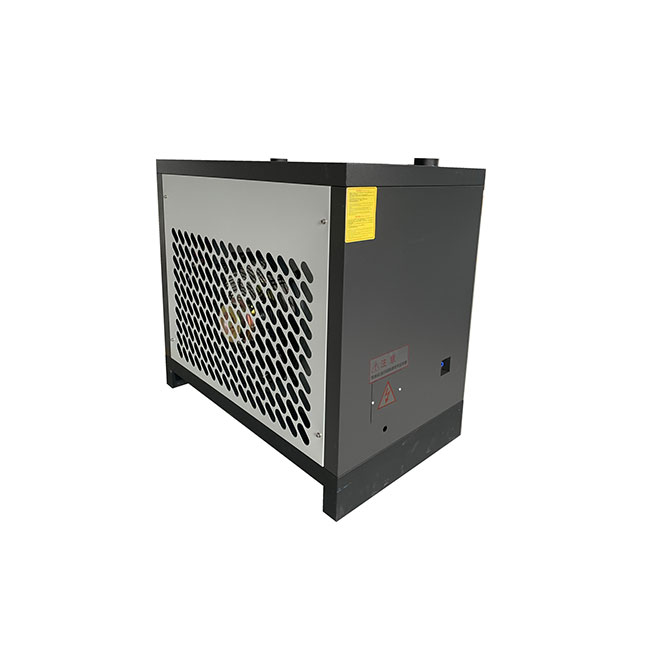

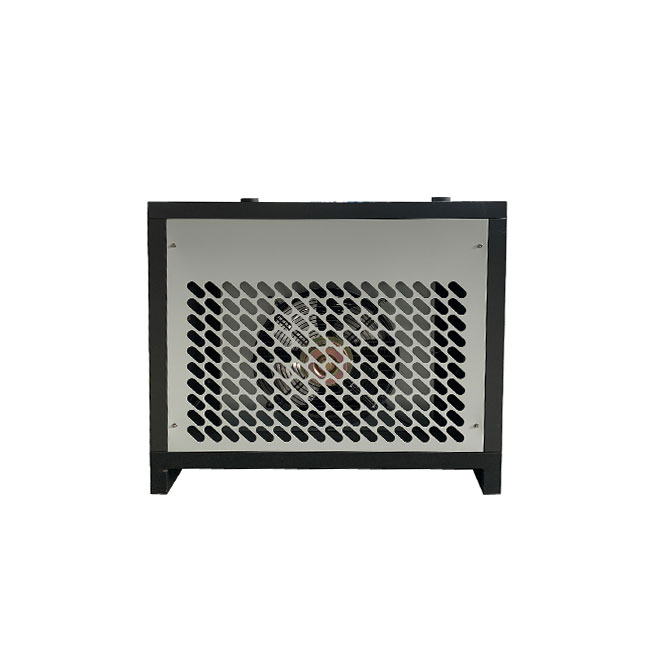

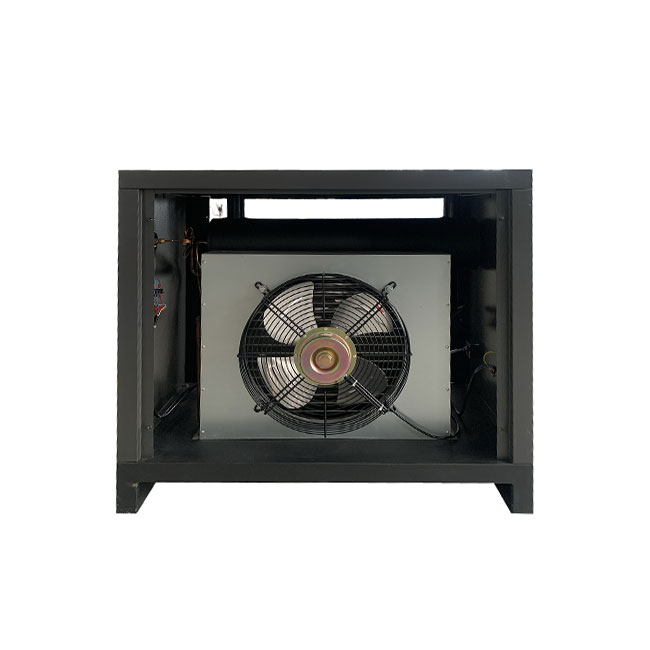

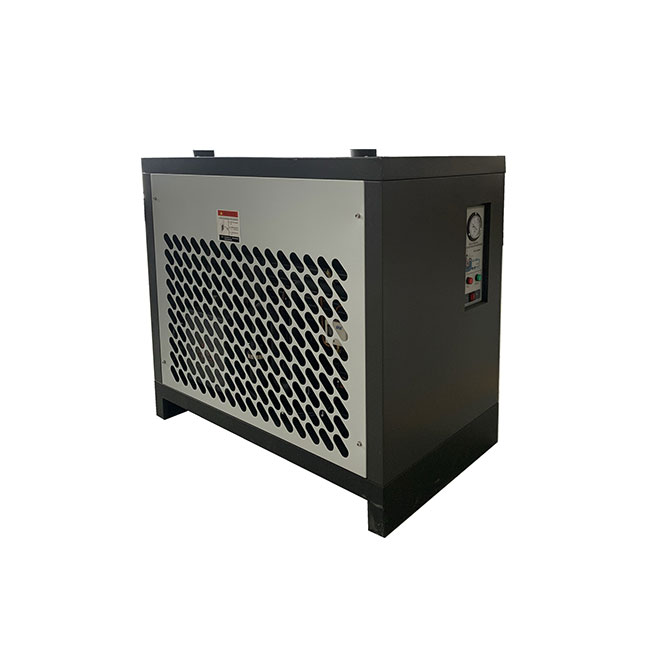

8.5 Nm3/min Refrigerated Compressed Air Dryer
In industrial operations, dry, clean compressed air is the lifeblood of equipment performance—from manufacturing lines to automation systems. Moisture in compressed air causes corrosion, equipment malfunctions, and product defects, leading to costly downtime and maintenance.
Our 8.5 Nm³/min Refrigerated Compressed Air Dryer is engineered to solve these challenges, delivering reliable dew point control and consistent air quality for mid-sized industrial applications.
Why choose a refrigerated compressed air dryer?
Refrigerated air dryers are the most widely used solution for removing moisture from compressed air. By cooling the air to a dew point temperature (typically 2–10°C), water vapor condenses into liquid, which is then separated and drained away.
Our 8.5 Nm³/min refrigerated compressed air dryer is engineered to deliver consistent performance. Even in demanding environments, making it ideal for medium-scale industrial operations.
•The steam-water separator adopts a three-stage separation method to prevent secondary evaporation of water and ensure the low dew point quality of the finished gas.
•The refrigeration compressor adopts fully enclosed or semi-enclosed refrigeration compressors from companies such as PERFORMER, BITZER, COPELAND, MANEUROP, GMCC, etc. With stable operation, low noise, high COP, reliable performance, power saving and long life.
•Refrigeration control vision uses world-leading refrigeration components from Danfoss, Emerson, and SPORLAN.
•Customized special models are accepted: environmentally friendly refrigerant dryer, variable frequency dryer, remote control dryer, high-pressure dryer, explosion-proof dryer, etc.
Key Features
Stable dew point control
It can still provide a stable pressure dew point of 2~10℃ under high temperature and high humidity conditions to avoid ice blockage or moisture residue.
Efficient heat exchange
It is preferred to use equipment with high-efficiency threaded tubes or plate heat exchangers, which can improve the heat exchange efficiency between refrigerant and air and reduce energy consumption.
Anti-icing design
Adopt intelligent hot gas bypass valve or dual refrigerant circuit technology to avoid shutdown caused by low temperature icing
Durable key components and low maintenance
The core components are all made of brands that meet CE or UL certification, compressor brands (such as Danfoss, Copeland, and Meizhi), and evaporator materials (stainless steel anti-corrosion), so the maintenance requirements are minimal, thereby reducing downtime and operating costs.
High cost performance
While ensuring product quality, the price is favorable, which can meet the application scenarios of painting, pneumatic instruments, pneumatic tools, sandblasting, air movement and mixing, and particle product transportation.
Product Specification
| Model | BRA085F | Capacity | 8.5Nm³/min |
| Dew point | 2-10 ℃ | Intake pressure | 0.6Mpa ~ 1.0Mpa |
| Refrigerant | R22 | Air connection diameter | G2 |
| Total power | 1.75kw | Weight | 96kg |
| Dimensions (L * W * H) | 1030*630 * 950mm | Voltage | 220V |
Product Recommendation
Why Partner with Borin?
Custom-Engineered Solutions
Whether you need a standalone air dryer or a fully integrated air treatment system, our team tailors solutions to match your specific requirements.
End-to-End Support
From initial consultation and installation to ongoing maintenance and troubleshooting, we offer comprehensive service packages to keep your operations running smoothly.
High-Quality Components & Warranties
Our air dryers are built using premium materials and undergo rigorous testing to ensure reliability. We back our products with industry-leading warranties.
Cost-Effective & Sustainable Options
We prioritize energy efficiency and eco-friendly designs to help reduce your carbon footprint while lowering long-term operational expenses.
Our 8.5 Nm³/min refrigerated compressed air dryer combines cutting-edge technology with durability, offering unmatched value for medium-scale industrial applications.
Ready to elevate your compressed air system? Contact Borin today for a personalized consultation, competitive pricing, and expert guidance on selecting the right air treatment solution for your business.(CONTACT US NOW)
