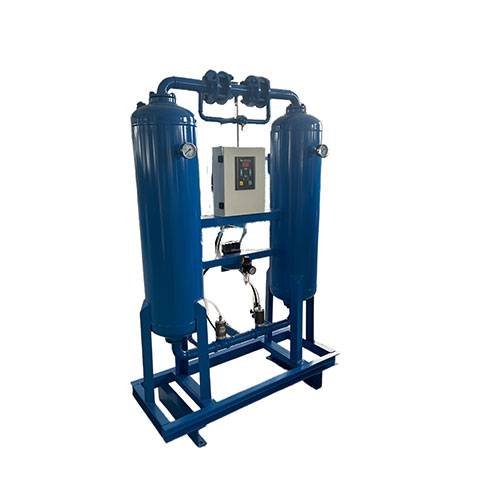

3.8 Nm3/min Adsorption Desiccant Air Dryer
For businesses relying on compressed air systems, moisture is the silent enemy—causing corrosion, equipment failure, and product defects. As a leading compressed air dryer manufacturer and air post-treatment solution provider, we engineer the 3.8 Nm³/min Adsorption Desiccant Air Dryer to eliminate this risk, delivering consistent dry air tailored to your industry needs.
•Ultra-Low Dew Point
•Energy-Saving Design
•Compact & Durable
•Low Maintenance, Long Service Life
Principle of operation
The heatless regeneration desiccant drier utilizes the unique microporous structure of the desiccant itself to adsorb the water in the air according to the capillary effect. The equipment adopts the unloading pressure to desorb and the residual heat of desiccant to heat up to desorb.
And the equipment design adopts the double-cylinder structure in the control of the program controller when one cylinder adsorbs the water at the same time, the other cylinder will carry out desorption and the two cylinders will work continuously in the cycle alternately, and the water in the compressed air is eliminated by the muffler that is carried by the equipment itself. The water from the compressed air is eliminated through the silencer of the equipment itself.
Key Features
Ultra-Low Dew Point
Achieves -20°C to -40°C pressure dew point (PDP) using high-grade activated alumina/molecular sieves, ensuring compliance with strict standards
Energy-Saving Design
Equipped with a smart pressure swing adsorption (PSA) system that reduces regeneration air consumption by 20% compared to generic dryers, cutting operational costs.
Compact & Durable
Rust-resistant stainless steel casing and space-saving footprint make it easy to install in tight facilities—ideal for retrofits or new system setups.
Low Maintenance, Long Service Life
Corrosion-resistant stainless-steel valves and pressure vessels extend durability. Modular desiccant beds simplify replacement, minimizing downtime
Product Specifications
| Model | BRWD003 | Capacity | 3.8 Nm3/min |
| Power | 0.2kw(0.27hp) | Inlet/Outlet Connection | G1(1/2)" |
| Weight | 210kg | Dimensions | 1050*450*1700 mm |
| Work Pressure | 0.6-1.0MPa(6-10bar) | Recycled Gas Consumption | 8-10% |
| Intake Temperatures | ≤45℃ | Dew Point | -20~-40℃ |
Product Recommendation
Why artner with Borin?
As a trusted compressed air dryer manufacturer with over 22 years of industry experience, we deliver more than just equipment—we provide end-to-end air treatment solutions:
Custom-Engineered Solutions
Whether you need a standalone dryer or a fully integrated compressed air system, our engineers design solutions aligned with your operational goals.
According to the user’s needs, we can provide air purification equipment with various forms and characteristics such as air-cooled, water-cooled, standard, non-chlorofluorocarbon, high-temperature, instrument, single-chip microcomputer, programmable, industrial control computer, variable frequency, high pressure, explosion-proof, and corrosion-resistant.
Energy-Efficient Innovations
Our dryers incorporate smart regeneration technologies to cut energy use by up to 30% compared to traditional models.
Our company has a highly qualified R&D team composed of senior engineers and technical specialists. The team members have extensive industry experience and professional knowledge, and they conduct in-depth research on post-treatment technologies for compressed air. They are capable of continuously innovating and upgrading products based on market demands and customer feedback.
Comprehensive After-Sales Services
From routine maintenance to desiccant replacement programs, we keep your system performing at peak efficiency.
We back every 3.8 Nm³/min Adsorption Desiccant Air Dryer with a 1-year comprehensive warranty—double the average industry standard. This covers all core components (including the desiccant bed, control system, and stainless steel casing) against manufacturing defects. During the warranty period, we provide free replacement parts to resolve issues quickly.
Choosing the right compressed air dryer is a strategic decision that impacts productivity, product quality, and operational costs. Our 3.8 Nm³/min Adsorption Desiccant Air Dryer combines cutting-edge technology with unmatched support, making it the ideal choice for businesses demanding excellence.
Ready to elevate your compressed air system Contact us today for a free consultation and discover how our tailored solutions can drive efficiency in your operations.
