High-Pressure Refrigerated Compressed Air Dryer: In-Depth Analysis

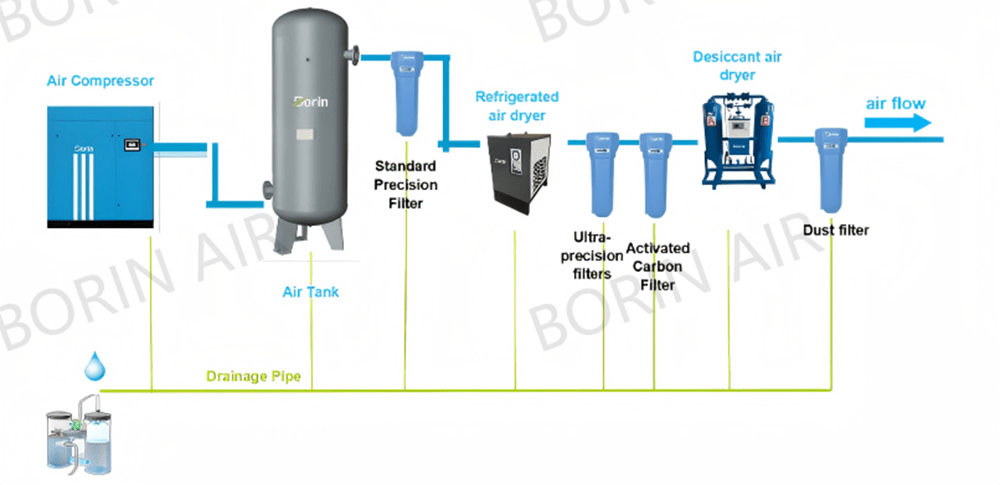

I.Unveiling the refrigerated compressed air dryer working principle
The working process of a high-pressure refrigerated compressed air dryer is intricately interconnected. The compressed air first enters the pre-cooler through the inlet and undergoes heat exchange with the cold dry air, resulting in a temperature reduction that lays a solid foundation for subsequent drying.
Subsequently, the air enters the evaporator, where it is further cooled below the dew point by the refrigerant, causing the water vapor to condense into liquid water, which is then separated from the air by the separator.
The dried air is discharged after being heated. At the same time, the refrigerant circulates between the compressor, condenser, and expansion valve, completing heat exchange and state transformation to provide power for the drying process continuously.
II.The advantages of high-pressure refrigerated compressed air dryers

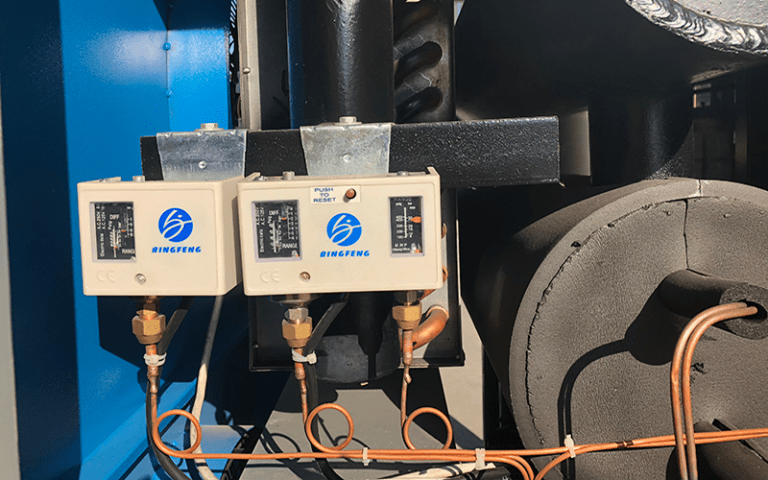

Energy Efficiency
The ingenious design of the pre-cooler reduces the load on the evaporator, leading to a significant decrease in energy consumption. Compared to models without pre-cooling, it can save up to 15% of energy.

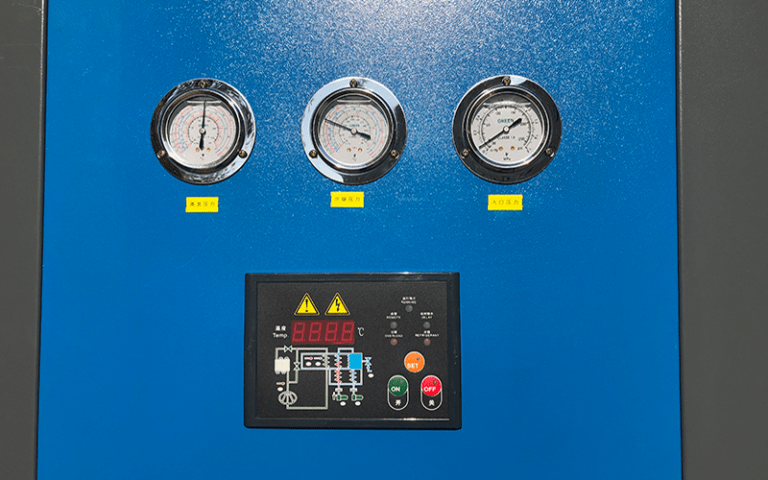

Excellent Drying Performance
It can achieve a low dew point of 2 – 10°C, ensuring that the compressed air is sufficiently dry. In industries such as food and beverage, it effectively prevents product deterioration due to moisture contamination.

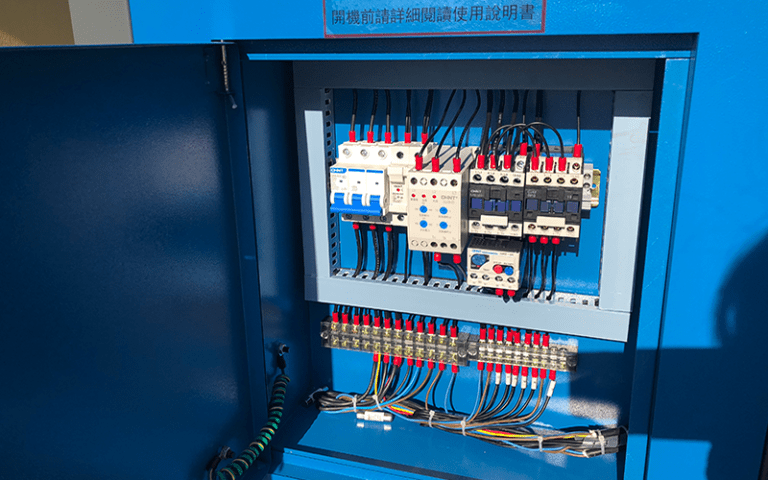

Durability and Reliability
Specifically designed for high-pressure and harsh environments, high-quality materials and components enable it to operate stably for an extended period, reducing replacement costs and maintenance frequency.
III. Applications of High-Pressure Refrigerated Compressed Air Dryers
Pharmaceutical and Biotechnology Industry
In the pharmaceutical and biotechnology sectors, stringent hygiene and quality standards are required. High-pressure compressed air is employed in processes like tablet coating, aseptic filling, and fermentation. High-pressure refrigerated compressed air dryers help remove moisture from the compressed air, reducing the risk of microbial growth and ensuring product purity.
Manufacturing Industry
In the manufacturing industry, includingmetal and plastic processing, and electronic manufacturing, high-pressure compressed air is utilized for various purposes, such as powering pneumatic tools, operating robotic systems, and cleaning components. High-pressure refrigerated compressed air dryers ensure that the compressed air used in these processes is dry, preventing equipment damage and enhancing the quality of finished products.

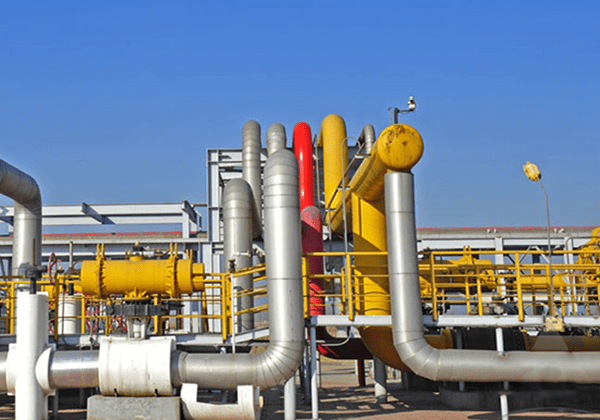

Oil and Gas Industry
In the oil and gas industry, high-pressure compressed air is used in drilling operations, pipeline cleaning, and instrument air systems. Moisture in compressed air can lead to corrosion of pipelines and equipment, resulting in costly repairs and downtime. High-pressure refrigerated compressed air dryers protect equipment by providing dry compressed air, thereby improving operational reliability and safety.
Iv. Factors to Consider When Choosing a high-pressure Refrigerated Compressed Air Dryer
Pressure level
The pressure rating of the dryer should match the working pressure of the compressed air system. It is very important to select a dryer that can withstand the system pressure to ensure reliable operation. For instance, if the operating pressure of the compressed air system is 20 bar, the pressure rating of the dryer should be at least 20 bar.
Dew point requirement
Different applications have different requirements for dew point. Some applications, such as electronic manufacturing, may require a very low dew point (for example, -40°C). In this case, the high-pressure refrigerated compressed air dryer may need to be used in combination with additional drying equipment (such as a desiccant dryer) to achieve the desired dew point.
Flow velocity
The flow rate of the dryer should be sufficient to meet the requirements of the compressed air system. The required flow rate needs to be calculated based on the quantity and type of pneumatic tools or equipment that use compressed air. If the flow rate of the dryer is too low, it may not be able to dry the compressed air effectively, resulting in moisture problems in the system.
As a professional manufacturer with 22 years of deep involvement in the compressed air dryer field, we can offer high-quality machines and comprehensive professional technical support to customers, relying on our robust company scale and extensive industry experience.
We have a large-scale production base and advanced manufacturing equipment, ensuring that every dryer undergoes rigorous quality inspection. Years of industry experience have enabled us to accumulate rich technical expertise, allowing us to provide customized solutions tailored to the unique needs of different customers. Whether it’s a large-scale industrial project or a small production line, we can offer the most suitable equipment configuration.

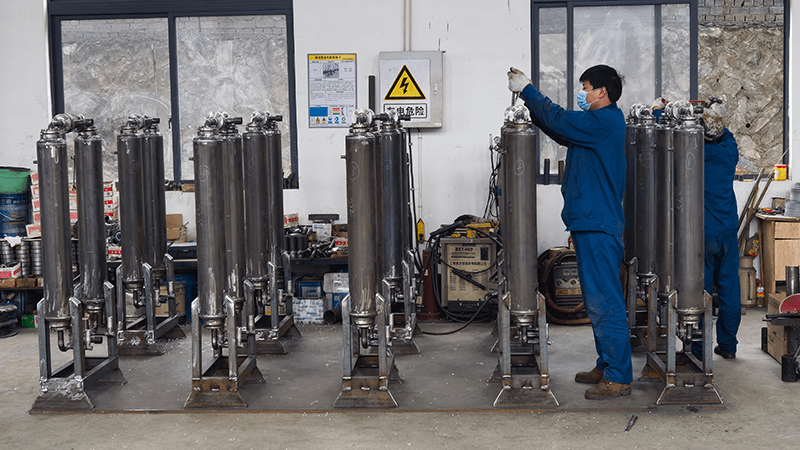

We not only provide high-quality machines but also attach great importance to after-sales technical support. Our professional technical team is always on standby, offering customers a full range of services including installation and commissioning, operation training, and maintenance. We can respond promptly to any issues to ensure the stable operation of the equipment, giving customers peace of mind.
